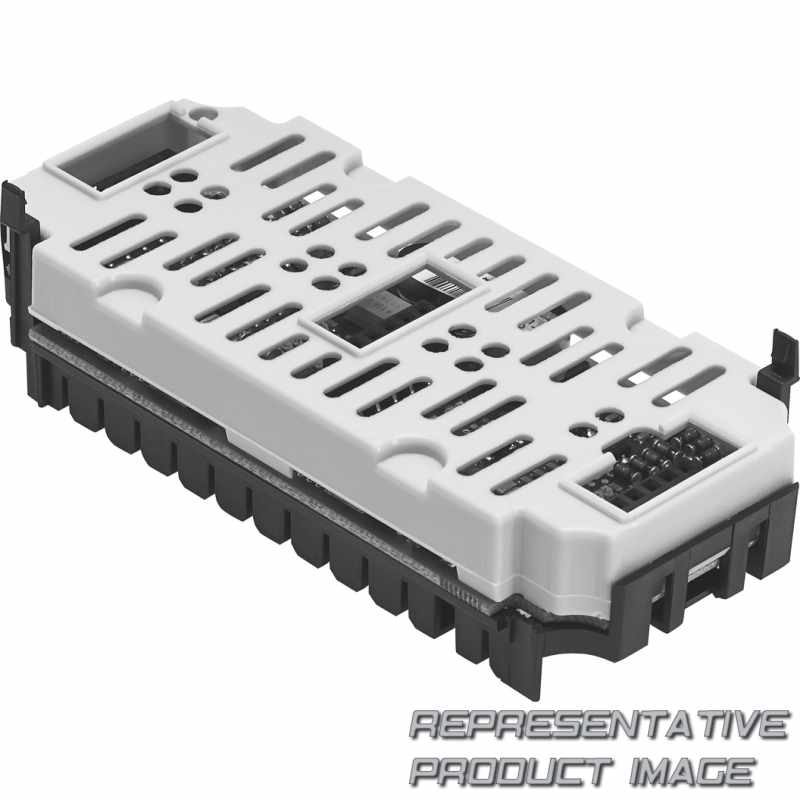

FESTO 550202 Eingangsmodul

Name: 550202 FESTO
Brand: FESTO
SKU: 686944-de-eur
Price: 260.47 EUR
Availability: InStock

CPX-M-16DE-D

260,47 € ~~350,42 €~~ -25%

18 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	(incl. interlinking block and connection technology) 50 x 107 x 50 mm

Gewicht	46g

Werkstoff Gehäuse		PA-reinforced PC
Characteristic for inputs		IEC1131-T2
Umgebungstemperatur		-5 °C ... 50 °C
Lagertemperatur		-20 °C ... 70 °C
Switching level		Signal 0: <= 5 V Signal 1: >= 11 V
Isolation channel - internal bus		no
Max. residual current of inputs per module		1,8 A
Betriebsspannungsbereich DC		18 V ... 30 V
Input debounce time		3 ms (0.1 ms, 10 ms, 20 ms, parameterisable)
Parameterisation		Input debounce time Signal extension time Behaviour after short circuit Module monitoring
Number of inputs		16

Switching logic for inputs		PNP (positive switching)
Produktgewicht		46 g
Schutzart		Dependent on the manifold block
Korrosionsbeständigkeitsklasse KBK		1 - Low corrosion stress (when installed)
Isolation channel - channel		no
Nennbetriebsspannung DC		24 V
Intern power consumption nominal operating voltage		Typ. 34 mA
Fuse protection (short circuit)		Internal electronic fuse per channel pair Additional fuse
LED display		1 Group diagnostics 16 channel diagnostics/channel status
Diagnosis		Short circuit/overload per channel
Abmessungen B x L x H		(incl. interlinking block and connection technology) 50 x 107 x 50 mm
