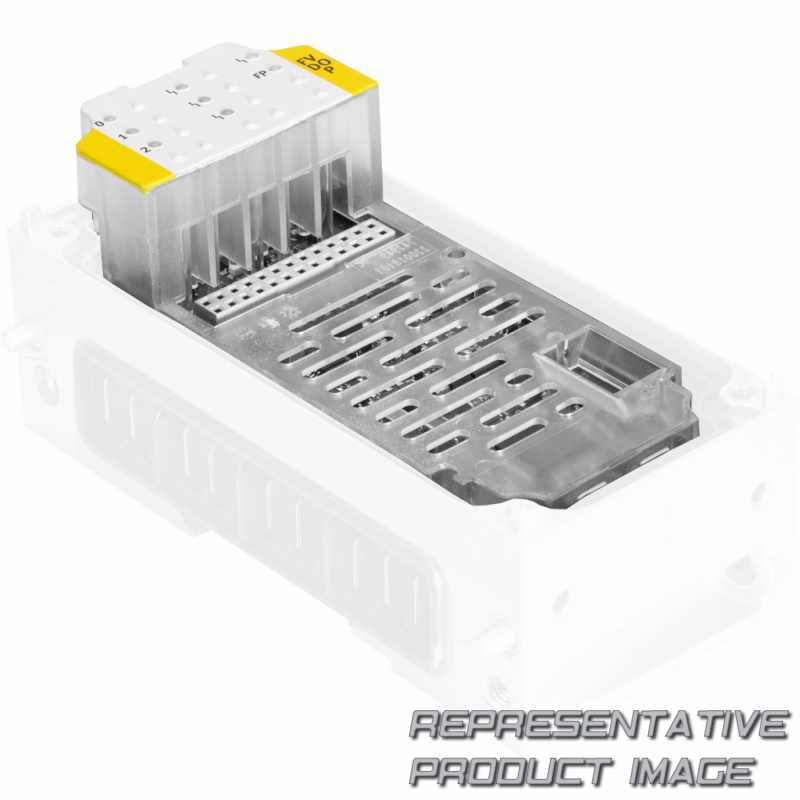

| Abmessungen B x L x H | (incl. interlinking block and connection technology) 50 x 107 x 55 mm | ||
| Diagnosis | Wire break per channel Short circuit/overload per channel Cross circuit Undervoltage of valves | ||
| Sicherheitsfunktion | Safely switching off supply voltage for the valves | ||
| Performance Level (PL) | Safe switch-off/category 3, Performance Level e | ||
| Fuse protection (short circuit) | Internal electronic fuse per channel | ||
| Load capacity against FE | 400 nF | ||
| Max. power supply per channel | 1.5 A | ||
| Nennbetriebsspannung DC | 24 V | ||
| Isolation channel - channel | no | ||
| Voltage drop per channel | 0,6 V | ||
| Zulassung | c UL us - Recognized (OL) | ||
| Zertifikat ausstellende Stelle | German Technical Control Board (TÜV) Rheinland 01/205/5294.01/18 | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Produktgewicht | 50 g | ||
| Note on outputs | 1 internal channel to switch off the valve voltage 2 external outputs | ||
| Max. Leitungslänge | 200 m | ||
| Werkstoff-Hinweis | RoHS-compliant |
| Number of outputs | 2 | ||
| Parameterisation | Diagnostic behaviour Wire break monitoring per channel | ||
| Safety Integrity Level (SIL) | Safe switch-off/SIL 3 | ||
| LED display | 1 fail-safe mode protocol active 1 Group diagnostics 3 channel diagnostics 3 Channel status | ||
| Intern power consumption nominal operating voltage | Typically 25 mA (power supply for electronics) Typ. 65 mA (load voltage supply for valve) | ||
| Max. reaction time to switch-off command | F_WD_TIME + 23 ms | ||
| Max. total current per module | 5 A | ||
| Isolation channel - internal bus | Yes, with intermediate air supply | ||
| Restwelligkeit | 2 Vpp within voltage range | ||
| Zulässige Spannungsschwankungen | -15%/+20% | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EC Machinery Directive | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress (when installed) | ||
| Schutzart | Dependent on the manifold block | ||
| Note on ambient temperature | Observe derating curve for pneumatic interface | ||
| Max. address volume, outputs | 6 Byte | ||
| Max. address volume, inputs | 6 Byte | ||
| Switching logic for outputs | P-M switching | ||
| Werkstoff Gehäuse | PA-reinforced PC |
