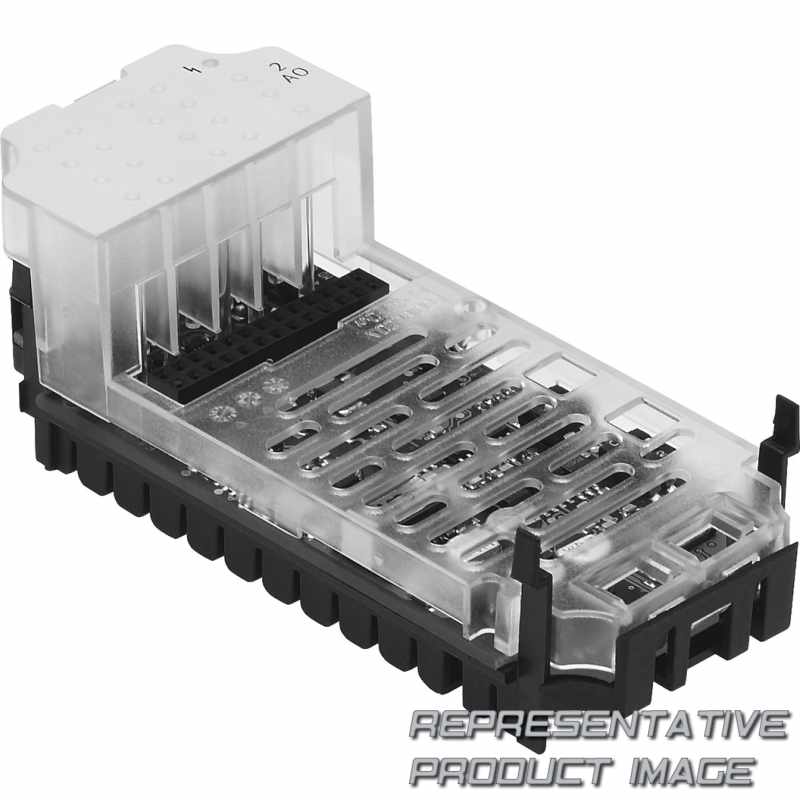

FESTO 526170 Analogmodul

Name: 526170 FESTO
Brand: FESTO
SKU: 690793-de-eur
Price: 278.53 EUR
Availability: InStock

CPX-2AA-U-I

278,53 € ~~358,45 €~~ -22%

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	(incl. interlinking block and connection technology) 50 x 107 x 50 mm

Gewicht	49g

Werkstoff Gehäuse		PA-reinforced PC
Max. Leitungslänge		30 m Shielded
Produktgewicht		49 g
Schutzart		Dependent on the manifold block
Korrosionsbeständigkeitsklasse KBK		1 - Low corrosion stress (when installed)
Isolation channel - internal bus		Yes, without using the internal sensor supply
Basic error limit at 25 °C		±0.5%
Intern power consumption nominal operating voltage		Typically 100 mA
Fuse protection (short circuit)		Internal electronic fuse
Internal cycle time		4 ms
Parameterisation		Data format Fail-safe per channel Forcing per channel Limit monitoring per channel Idle mode per channel Measured value smoothing Signal range per channel Behaviour after short circuit Wire break monitoring per channel
Number of outputs		2

Sensor type		0 - 10 V 0 - 20 mA 4 - 20 mA
Data format		12 bits + prefix Scalable to 15 bits
Umgebungstemperatur		-5 °C ... 50 °C
Lagertemperatur		-20 °C ... 70 °C
Isolation channel - channel		no
Nennbetriebsspannung DC		24 V
Operating error limit related to the ambient temperature range		±0.6%
Betriebsspannungsbereich DC		18 V ... 30 V
Wiederholgenauigkeit		0.05% at 25ºC
LED display		1 Group diagnostics
Diagnosis		Wire break per channel Limit value violation per channel Short circuit of output signal per channel Short circuit of actuator supply Parameterisation error Undervoltage of outputs
Abmessungen B x L x H		(incl. interlinking block and connection technology) 50 x 107 x 50 mm
