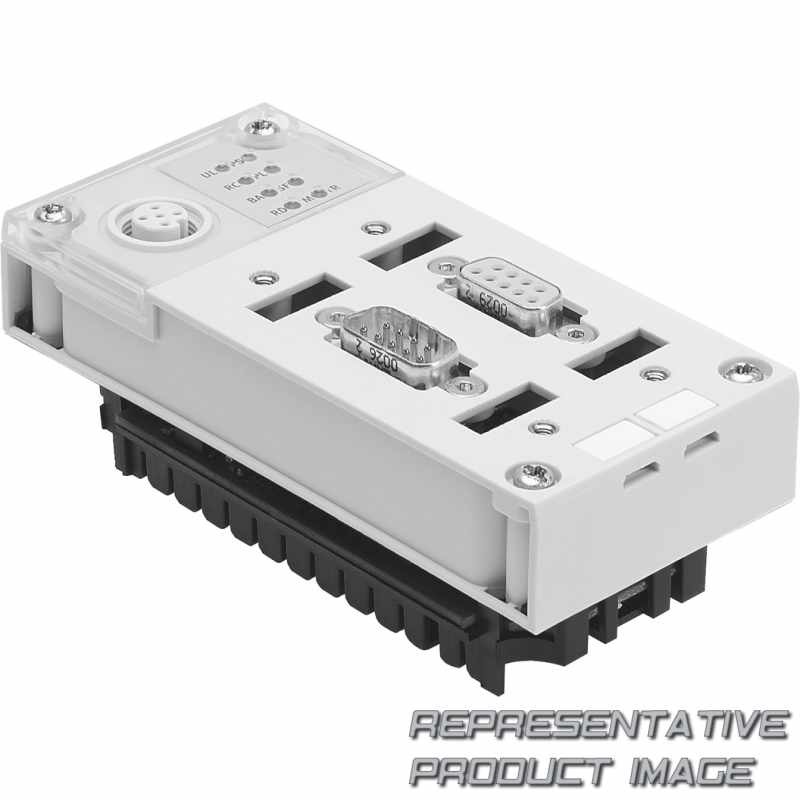

FESTO 195748 Busknoten

Name: 195748 FESTO
Brand: FESTO
SKU: 662085-de-eur
Price: 512.3 EUR
Availability: InStock

CPX-FB6

512,30 € ~~702,03 €~~ -27%

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	(incl. interlinking block) 50 x 107 x 50 mm

Gewicht	125g

Werkstoff Gehäuse		PA-reinforced PC
LED display, bus-specific		BA: Bus active RC: Remote bus check RD: Remote bus disable TR: Transmit/receive UL: Operating voltage
Max. address volume, inputs		12 Byte
Produktgewicht		125 g
Schutzart		IP65 IP67
Korrosionsbeständigkeitsklasse KBK		1 - Low corrosion stress
Intern power consumption nominal operating voltage		Typ. 200 mA
Baud rate		500, 2000 kbit/s
Zusatzfunktionen		Acyclic data access via PCP channel Channel-oriented diagnostics via fieldbus Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Additional diagnostic interface for operator units
Device-specific diagnostics		Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory
Abmessungen B x L x H		(incl. interlinking block) 50 x 107 x 50 mm

LED display, product-specific		M: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System fault
Protokoll		Interbus
Max. address volume, outputs		12 Byte
Umgebungstemperatur		-5 °C ... 50 °C
Lagertemperatur		-20 °C ... 70 °C
Nennbetriebsspannung DC		24 V
Betriebsspannungsbereich DC		18 V ... 30 V
Operator controls		DIL switch
Parameterisation		Diagnostic behaviour Fail-safe response Forcing of channels Signal setup System parameter
Field bus interface		2x Sub-D plug connector for self-assembly 2x M12x1, 5-pin, B-coded Socket and plug connector, Sub-D, 9-pin
