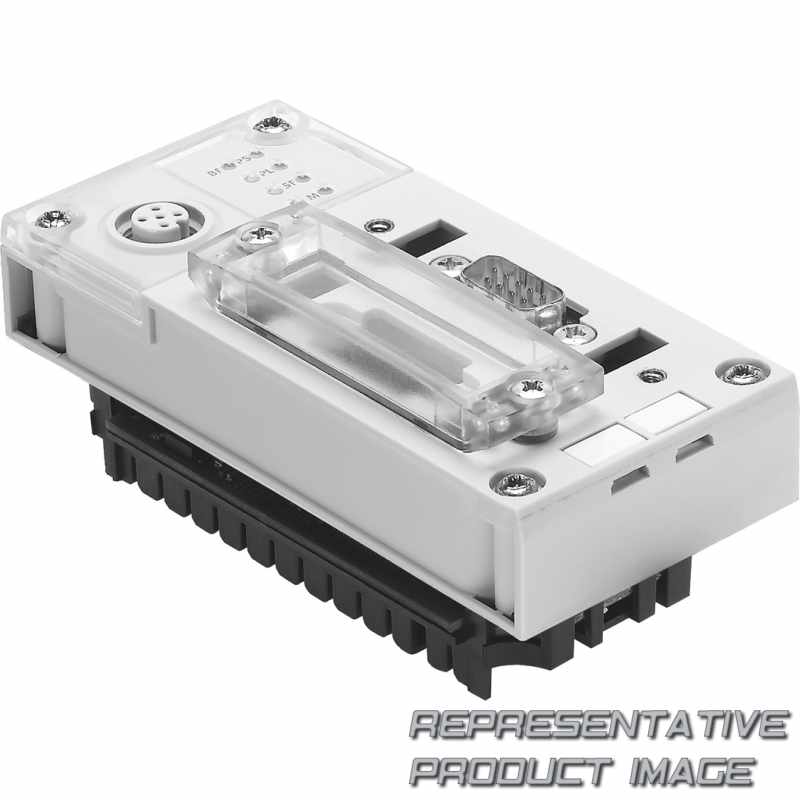

FESTO 526174 Busknoten

Name: 526174 FESTO
Brand: FESTO
SKU: 664781-de-eur
Price: 398.74 EUR
Availability: InStock

CPX-FB14

398,74 € ~~511,84 €~~ -22%

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	(incl. interlinking block) 50 x 107 x 50 mm

Gewicht	115g

Werkstoff Gehäuse		PA-reinforced PC
LED display, bus-specific		IO: I/O status MS: Module status NS: Network status
Max. address volume, inputs		32 Byte
Produktgewicht		115 g
Schutzart		IP65 IP67
Korrosionsbeständigkeitsklasse KBK		1 - Low corrosion stress
Intern power consumption nominal operating voltage		Typ. 200 mA
Baud rate		125, 250, 500 and 1000 kbit/s
Zusatzfunktionen		Acyclic data access via SDO Channel-oriented diagnostics via fieldbus Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Additional diagnostic interface for operator units
Parameterisation		Diagnostic behaviour Fail-safe response Forcing of channels Signal setup System parameter
Field bus interface		2x M12x1, 5-pin Sub-D socket, 9-pin Terminal strip, 5-pin Sub-D plug connector, for self-assembly

LED display, product-specific		M: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System fault
Protokoll		CANopen
Max. address volume, outputs		32 Byte
Umgebungstemperatur		-5 °C ... 50 °C
Lagertemperatur		-20 °C ... 70 °C
Nennbetriebsspannung DC		24 V
Betriebsspannungsbereich DC		18 V ... 30 V
Operator controls		DIL switch
Configuration support		EDS file
Device-specific diagnostics		Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory
Abmessungen B x L x H		(incl. interlinking block) 50 x 107 x 50 mm
