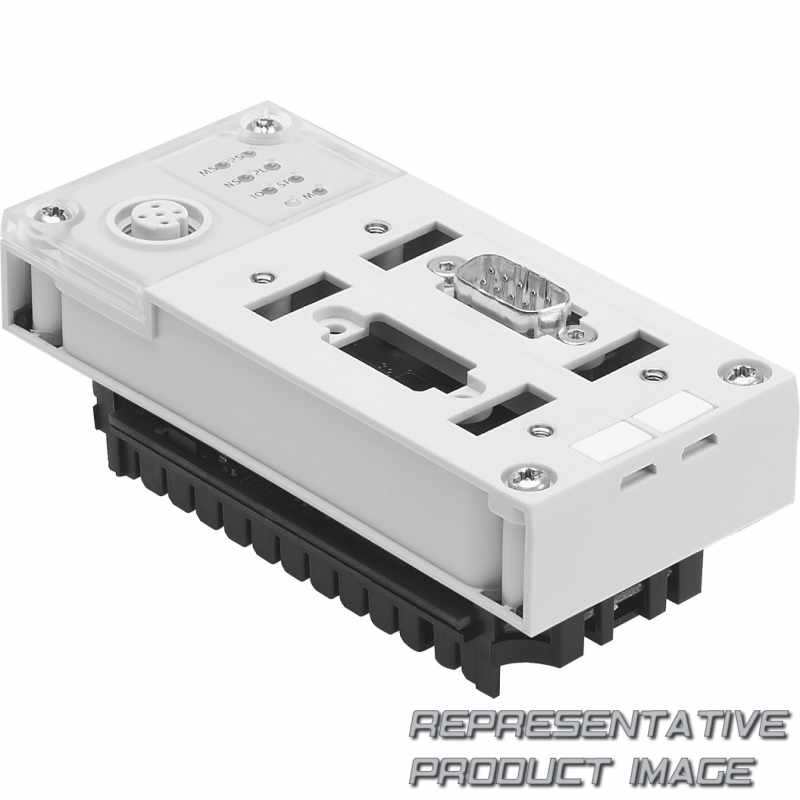

| Werkstoff Gehäuse | PA-reinforced PC | ||
| LED display, bus-specific | IO: I/O status MS: Module status NS: Network status | ||
| Max. address volume, inputs | 64 Byte | ||
| Produktgewicht | 120 g | ||
| Schutzart | IP65 IP67 | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress | ||
| Intern power consumption nominal operating voltage | Typ. 200 mA | ||
| Baud rate | 125, 250, 500 kbit/s | ||
| Zusatzfunktionen | Acyclic data access via "Explicit Message" Channel-oriented diagnostics via fieldbus QuickConnect Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Additional diagnostic interface for operator units | ||
| Parameterisation | Diagnostic behaviour Fail-safe response Forcing of channels Idle mode characteristics Signal setup System parameter | ||
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory | ||
| Abmessungen B x L x H | (incl. interlinking block) 50 x 107 x 50 mm |
| LED display, product-specific | M: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System fault | ||
| Protokoll | DeviceNet | ||
| Max. address volume, outputs | 64 Byte | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Nennbetriebsspannung DC | 24 V | ||
| Betriebsspannungsbereich DC | 18 V ... 30 V | ||
| Operator controls | DIL switch | ||
| Configuration support | EDS file | ||
| Types of communication | Change of state Cyclic Explicit message Polled I/O Strobed I/O | ||
| Field bus interface | Sub-D socket, 9-pin Sub-D plug connector, for self-assembly Micro style: 2x M12x1, 5-pin Open style: terminal strip, 5-pin |
