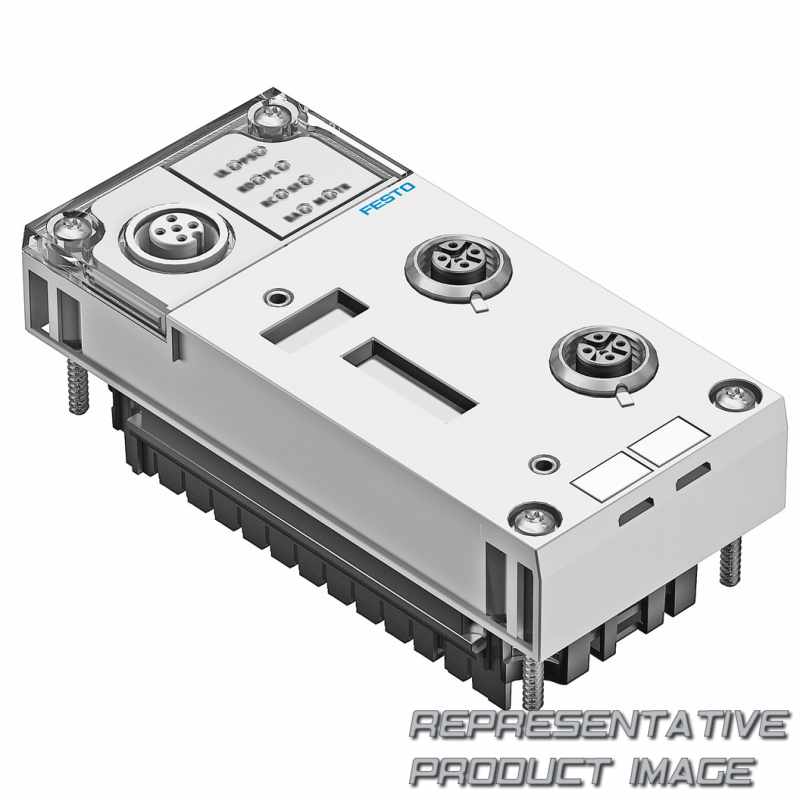

| Werkstoff Gehäuse | PA-reinforced | ||
| LED display, product-specific | M: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System fault | ||
| Protokoll | EtherNet/IP Modbus® TCP | ||
| Max. address volume, outputs | 64 Byte | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress | ||
| Intern power consumption nominal operating voltage | Typically 100 mA | ||
| Baud rate | 10/100 Mbit/s | ||
| Zusatzfunktionen | Acyclic data access via "Explicit Message" Asynchronous data access via Ethernet EtherNet/IP Quickconnect - IP addressing via DHCP, DIL switch or operator unit Integrated switch Channel-oriented diagnostics via fieldbus Ring topology (DLR) Start-up parameterisation in plain text via fieldbus System status can be mapped using process data | ||
| Parameterisation | Diagnostic behaviour Fail-safe response Forcing of channels Idle mode characteristics Signal setup System parameter | ||
| Field bus interface | 2x socket, M12x1, 4-pin, D-coded |
| Werkstoff-Hinweis | RoHS-compliant | ||
| LED display, bus-specific | MS: Module status NS: Network status TP1: Network active port 1 TP2: Network active port 2 | ||
| Max. address volume, inputs | 64 Byte | ||
| Produktgewicht | 125 g | ||
| Schutzart | IP65 IP67 | ||
| LABS-Konformität | VDMA24364-B2-L | ||
| Nennbetriebsspannung DC | 24 V | ||
| Betriebsspannungsbereich DC | 18 V ... 30 V | ||
| Operator controls | DIL switch | ||
| Configuration support | EDS file L5K export with CPX-FMT | ||
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory | ||
| Abmessungen B x L x H | (incl. interlinking block) 50 x 107 x 50 mm |
