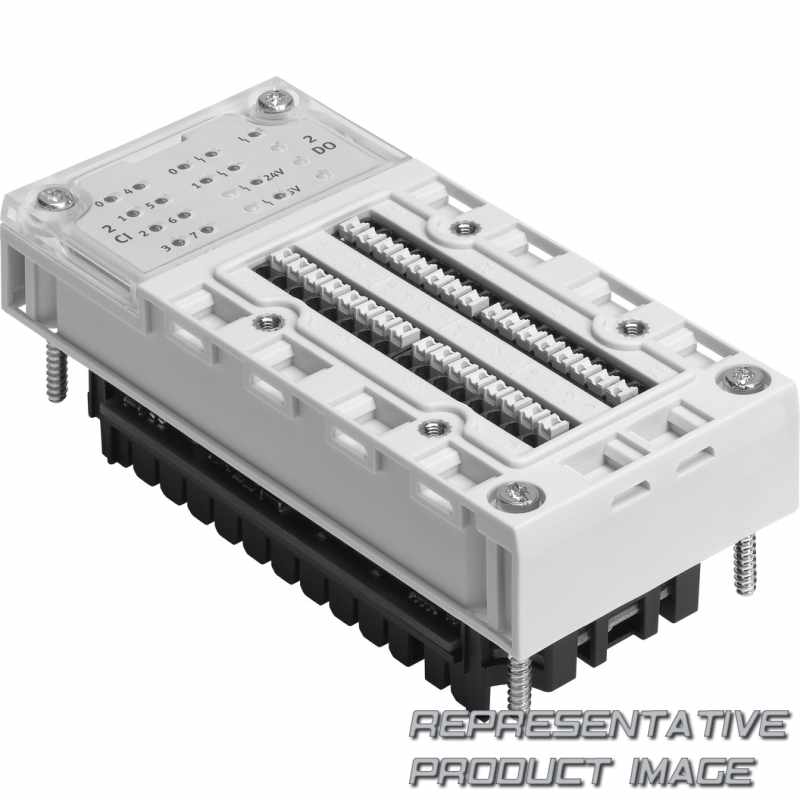

| Werkstoff Gehäuse | Polymer | ||
| Switching logic for outputs | NPN (negative switching) PNP (positive switching) Push-pull driver | ||
| Max. Leitungslänge | 30 m | ||
| Characteristic for outputs | IEC1131-T2 | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Zulassung | UL - Recognized (OL) | ||
| Isolation channel - channel | no | ||
| Nennbetriebsspannung DC | 24 V | ||
| Max. residual current outputs per module | 10 A | ||
| Intern power consumption nominal operating voltage | Typically 35 mA | ||
| Fuse protection (short circuit) | Internal electronic fuse per channel | ||
| LED display | 1 Group diagnostics 10 Channel status 2 Module diagnostics 2 channel diagnostics | ||
| Number of inputs | 2 | ||
| Rastermaß | 50 mm | ||
| Parameterisation | Switch-on/off delay Frequency output Speed measurement Pulse output Pulse train Rotational speed measurement Frequency measurement Cycle duration measurement Motor operating mode Determination of position Pulse-width modulation One-off counting Continuous counting Periodic counting |
| Werkstoff-Hinweis | RoHS-compliant | ||
| Switching logic for inputs | PNP (positive switching) | ||
| Characteristic for inputs | To IEC 1131-2, type 02 | ||
| Produktgewicht | 130 g | ||
| Schutzart | IP65 IP67 | ||
| Korrosionsbeständigkeitsklasse KBK | 1 - Low corrosion stress (when installed) | ||
| Switching level | Signal 0: <= 5 V Signal 1: >= 11 V | ||
| Isolation channel - internal bus | Outputs - yes, when using an intermediate air supply | ||
| Max. residual current of inputs per module | 2 A | ||
| Max. power supply per channel | 5 A adjustable (20 W lamp load) | ||
| Betriebsspannungsbereich DC | 18 V ... 30 V | ||
| Input debounce time | 0.1 µs (0.2 µs, 0.4 µs, 0.8 µs, 1 µs, 2 µs, 4 µs, 8 µs, 10 µs, 50 µs, 100 µs, 500 µs, 1 ms, 3 ms, 10 ms, 20 ms parameterisable) | ||
| Diagnosis | Operating-mode-dependent diagnostics | ||
| Number of outputs | 2 | ||
| Abmessungen B x L x H | (incl. interlinking block and connection technology) 50 x 107 x 50 mm |
