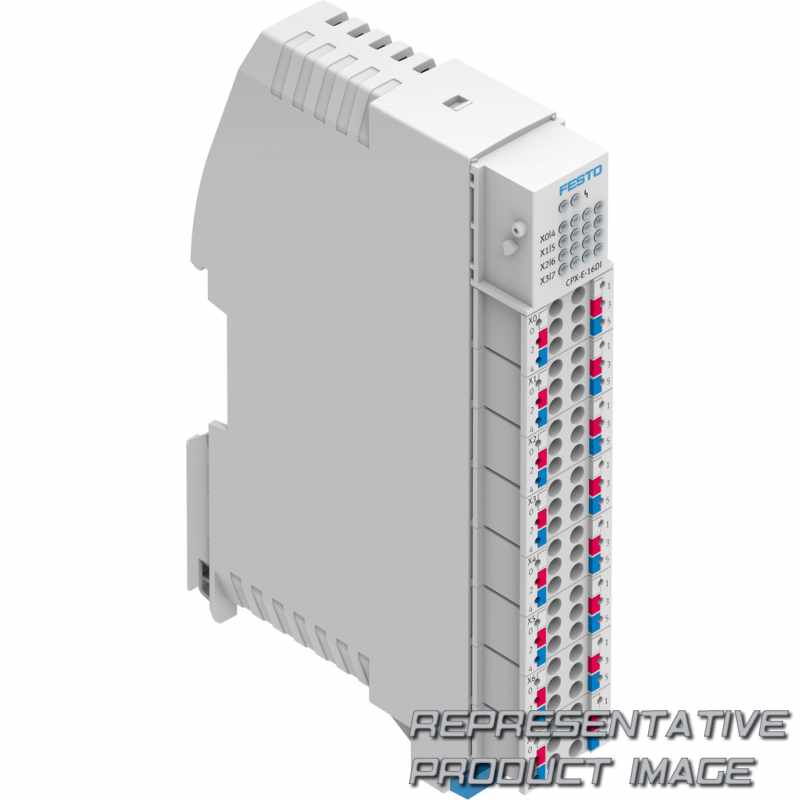

| Werkstoff Gehäuse | PA | ||
| Befestigungsart | With H-rail | ||
| Electrical connection for input, conductor cross section | 0,2 mm² ... 1,5 mm² | ||
| Electrical connection input, number of connections/cores | 6 | ||
| Electrical connection input, connection type | 8x terminal strip | ||
| Switching logic for inputs | PNP (positive switching) 2-wire sensors to IEC 61131-2 3-wire sensors to IEC 61131-2 | ||
| Max. address volume, inputs | 2 Byte | ||
| Note on ambient temperature | -5 - 60°C for vertical installation | ||
| Schutzart | IP20 | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Schockfestigkeit | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 | ||
| Zertifikat ausstellende Stelle | UL E239998 | ||
| KC-Zeichen | KC-EMV | ||
| Permissible voltage fluctuations for electronics/sensors | ± 25% | ||
| Isolation channel - channel | no | ||
| Nominal DC operating voltage, electronics/sensors | 24 V | ||
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 15 mA | ||
| Input debounce time | 0.1 ms 3 ms 10 ms 20 ms | ||
| Module parameters | Short circuit diagnostics for sensor supply Input debounce time Signal extension time Behaviour after short circuit/overload | ||
| Diagnostics via LED | Errors per module Status per channel | ||
| Rastermaß | 18,9 mm |
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Electrical connection for input, note on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Electrical connection input, connection pattern | 00995843 | ||
| Electrical connection input, connector system | Spring-loaded terminal | ||
| Electrical connection input, function | Digital input | ||
| Characteristic for inputs | To IEC 61131-2, type 3 | ||
| Produktgewicht | 102 g | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Relative Luftfeuchtigkeit | 95 % Non-condensing | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Schwingfestigkeit | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive | ||
| Zulassung | RCM trademark c UL us listed (OL) | ||
| Switching level | Signal 0: <= 5 V Signal 1: >= 11 V | ||
| Isolation channel - internal bus | no | ||
| Max. residual current of inputs per module | 1,8 A | ||
| Fuse protection (short circuit) | Internal electronic fuse per module | ||
| Channel parameters | Signal extension | ||
| Diagnostics via bus | Short circuit/overload in sensor supply | ||
| Number of inputs | 16 | ||
| Abmessungen B x L x H | 18.9 x 76.6 x 124.3 mm |
