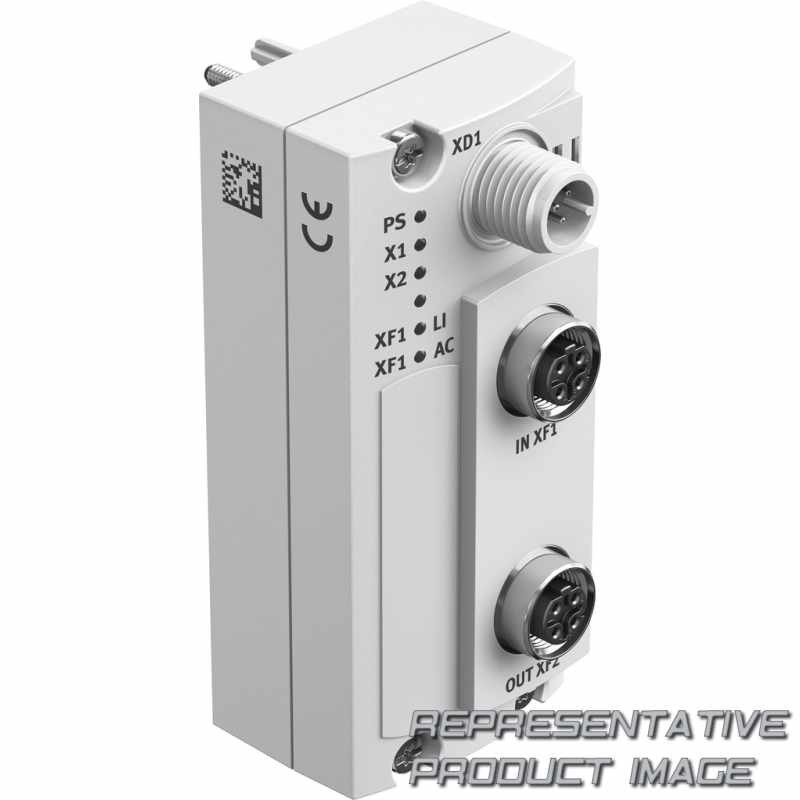

FESTO 8087559 Busknoten

Name: 8087559 FESTO
Brand: FESTO
SKU: 667543-de-eur
Price: 441.69 EUR
Availability: InStock

CTEU-VN

441,69 € ~~602,31 €~~ -26%

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	40 x 91 x 50 mm

Gewicht	98g

Werkstoff-Hinweis		Contains paint-wetting impairment substances RoHS-compliant
Umgebungstemperatur		-5 °C ... 50 °C
Schutzart		IP65 IP67
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Korrosionsbeständigkeitsklasse KBK		2 - Moderate corrosion stress
Zulassung		RCM trademark
Intern power consumption nominal operating voltage		Typ. 65 mA
Betriebsspannungsbereich DC		18 V ... 30 V
LED display, product-specific		PS: Operating voltage for electronics and load supply X1: System status of module at I-Port 1 X2: System status of module at I-Port 2
Zusatzfunktionen		FFT VARAN splitter
Diagnosis		Communication fault System diagnostics Undervoltage
Power supply, number of pins/wires		5
Power supply, connection type		Plugs
Max. address volume, outputs		32 Byte
Internal cycle time		1 ms per 1 byte of user data
Field bus interface, electrical isolation		yes
Feldbus-Schnittstelle, Anzahl Pole/Adern		4
Feldbus-Schnittstelle, Anschlussart		2x socket
Feldbus-Schnittstelle, Protokoll		VARAN
Produktgewicht		98 g
Rastermaß		40 mm

Werkstoff Gehäuse		PA
Hinweis zur Schutzart		In assembled state Unused connections sealed
Lagertemperatur		-20 °C ... 70 °C
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive In accordance with EU RoHS Directive
KC-Zeichen		KC-EMV
Max. power supply		4 A
Nennbetriebsspannung DC		24 V
LED display, bus-specific		XF1 AC: network data exchange, port 1 XF1 LI: network active, port 1
Configuration support		LASAL module
Parameterisation		Fail-safe response IO-Link mode
Power supply, connection pattern		00995383
power supply, connection system		M12x1, A-coded according to EN 61076-2-101
Power supply, function		Electronics and load
Max. address volume, inputs		32 Byte
Field bus interface, transmission rate		100 Mbit/s
Fieldbus interface, connection pattern		00995716
Feldbus-Schnittstelle, Anschlusstechnik		M12x1, D-coded to EN 61076-2-101
Fieldbus interface, function		Bus connection incoming/outgoing
Feldbusschnittstelle		Ethernet
Befestigungsart		On electrical interface On electrical sub-base
Abmessungen B x L x H		40 x 91 x 50 mm
