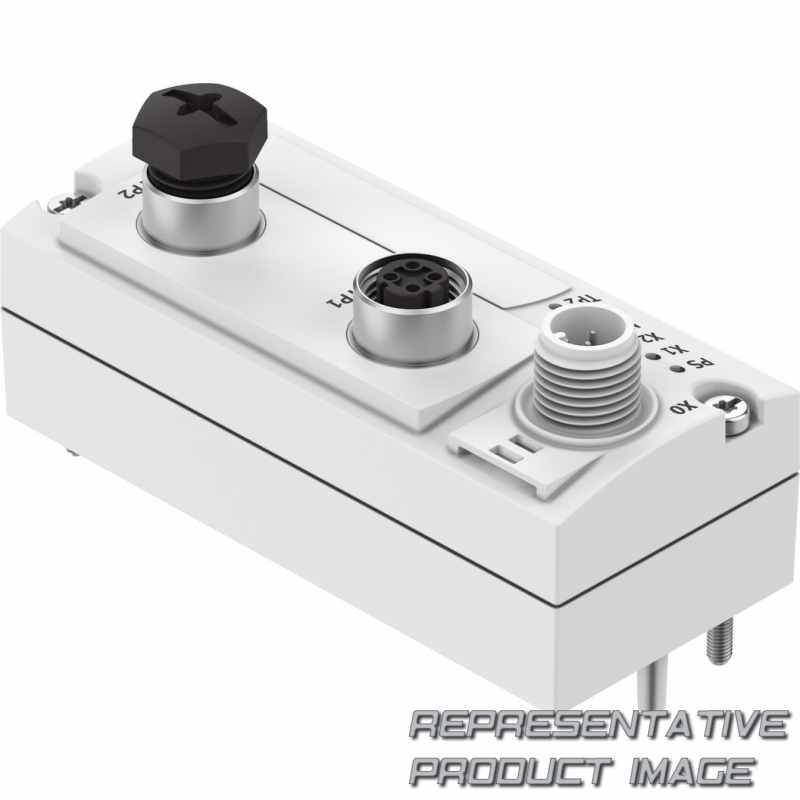

| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Schutzart | IP65 IP67 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Zulassung | RCM trademark c UL us listed (OL) | ||
| Intern power consumption nominal operating voltage | Typ. 80 mA | ||
| Betriebsspannungsbereich DC | 18 V ... 30 V | ||

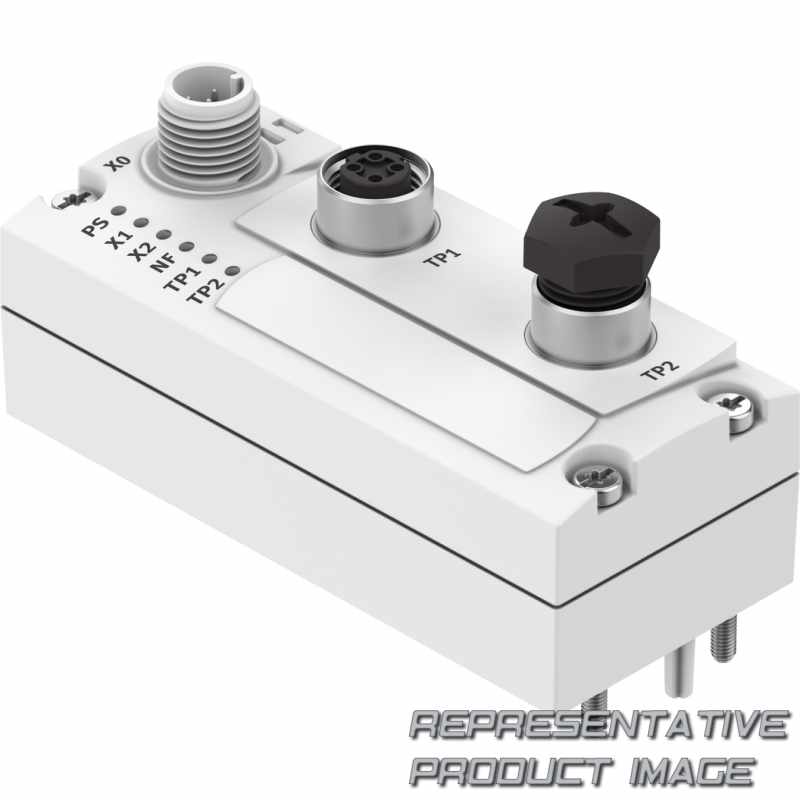

| LED display, product-specific | PS: Operating voltage for electronics and load supply X1: System status of module at I-Port 1 X2: System status of module at I-Port 2 | ||
| Zusatzfunktionen | Conformance class C Fast start-up (FSU) LLDP MRP PROFINET IRT PROFIenergy SNMP Shared device Web servers | ||
| Power supply, connection pattern | 00995383 | ||
| power supply, connection system | M12x1, A-coded according to EN 61076-2-101 | ||
| Power supply, function | Electronics and load | ||
| Max. address volume, inputs | 64 Byte | ||
| Field bus interface, transmission rate | 100 Mbit/s | ||
| Fieldbus interface, connection pattern | 00995716 | ||
| Feldbus-Schnittstelle, Anschlusstechnik | M12x1, D-coded to EN 61076-2-101 | ||
| Fieldbus interface, function | Bus connection incoming/outgoing | ||
| Feldbusschnittstelle | Ethernet | ||
| Produktgewicht | 93 g | ||
| Rastermaß | 40 mm |
| Werkstoff Gehäuse | PA | ||
| Hinweis zur Schutzart | In assembled state Unused connections sealed | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| KC-Zeichen | KC-EMV | ||
| Max. power supply | 4 A | ||
| Nennbetriebsspannung DC | 24 V | ||

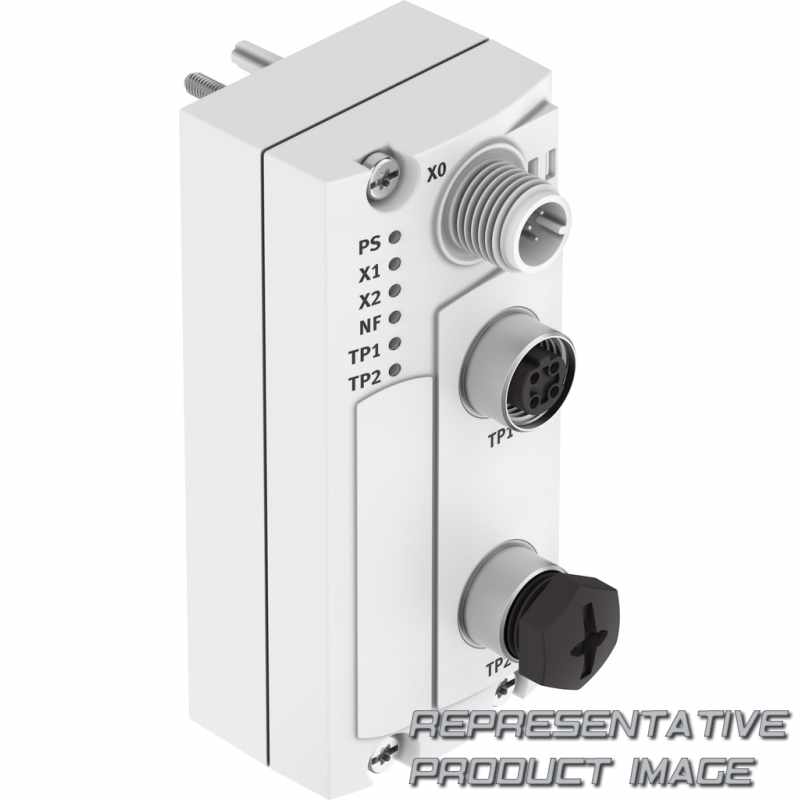

| LED display, bus-specific | NF: Network fault TP1: Network active port 1 TP2: Network active port 2 | ||
| Configuration support | GSDML file | ||
| Diagnosis | Communication fault System diagnostics Undervoltage | ||
| Power supply, number of pins/wires | 5 | ||
| Power supply, connection type | Plugs | ||
| Max. address volume, outputs | 64 Byte | ||
| Internal cycle time | 1 ms per 1 byte of user data | ||
| Field bus interface, electrical isolation | yes | ||
| Feldbus-Schnittstelle, Anzahl Pole/Adern | 4 | ||
| Feldbus-Schnittstelle, Anschlussart | 2x socket | ||
| Feldbus-Schnittstelle, Protokoll | PROFINET RT | ||
| Protokoll | PROFINET | ||
| Befestigungsart | On electrical interface On electrical sub-base | ||
| Abmessungen B x L x H | 40 x 91 x 50 mm |
