4080494 Festo

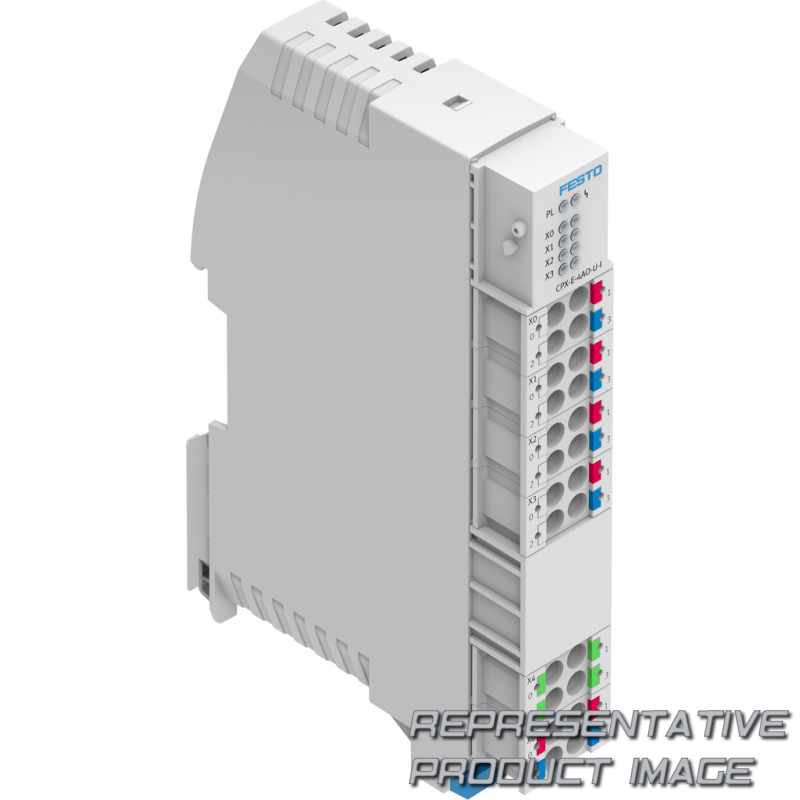

FESTO 4080494 Analoges Ausgangsmodul

Name: 4080494 FESTO
Brand: FESTO
SKU: 686706-de-eur
Price: 483.38 EUR
Availability: InStock

CPX-E-4AO-U-I

483,38 € ~~644,26 €~~ -24%

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Dimensions	18.9 x 76.6 x 124.3 mm

Gewicht	96g

Technical data

Werkstoff Gehäuse		PA
Befestigungsart		With H-rail
Electrical connection output 2, conductor cross section		0,2 mm² ... 1,5 mm²
Electrical connection output 2, number of pins/wires		4
Electrical connection for output 2, connection type		Terminal strip
Electrical connection for output, note on conductor cross section		0.2 - 2.5 mm² for flexible conductors without wire end sleeves
Electrical connection output, number of connections/cores		4
Electrical connection output, connection type		4x terminal strip
Max. Leitungslänge		30 m Shielded
analog input		-10 - 10 V -20 - 20 mA -5 - 5 V 0 - 10 V 0 - 20 mA 4 - 20 mA
Produktgewicht		96 g
Umgebungstemperatur		-5 °C ... 50 °C
Protection against direct and indirect contact		PELV
Lagertemperatur		-20 °C ... 70 °C
Schockfestigkeit		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Zertifikat ausstellende Stelle		UL E239998
KC-Zeichen		KC-EMV
Power supply, note on conductor diameter		0.2 - 2.5 mm² for flexible conductors without wire end sleeves
Power supply, connection pattern		00995847
power supply, connection system		Spring-loaded terminal
Permissible voltage fluctuation of load		± 25 %
Isolation channel - channel		no
Power failure bridging		10 ms
Nominal DC operating voltage, electronics/sensors		24 V
Basic error limit at 25 °C		±0.1%
Intrinsic current consumption at nominal operating voltage load		Typically 15 mA
Fuse protection (short circuit)		Internal electronic fuse per module
Channel parameters		Force channel x Enable wire break/idling diagnostics Enable for parameterisation error diagnostics Enable overload/short circuit diagnostics Signal range per channel
Messgröße		Voltage Current
Diagnostics via LED		Errors per channel Errors per module
Rastermaß		18,9 mm

Werkstoff-Hinweis		Contains paint-wetting impairment substances RoHS-compliant
Electrical connection output 2, note on conductor cross section		0.2 - 2.5 mm² for flexible conductors without wire end sleeves
Electrical connection output 2, connection pattern		00995842
Electrical connection for output 2, connection technology		Spring-loaded terminal
Electrical connection for output 2, function		Functional earth
Electrical connection for output, conductor cross section		0,2 mm² ... 1,5 mm²
Electrical connection output, connector system		Spring-loaded terminal
Electrical connection output, function		Analogue output
Data format		15 bits + prefix Linear scaling
Max. address volume, outputs		8 Byte
Note on ambient temperature		-5 - 60°C for vertical installation
Schutzart		IP20
Relative Luftfeuchtigkeit		95 % Non-condensing
Korrosionsbeständigkeitsklasse KBK		0 - No corrosion stress
Schwingfestigkeit		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive
Zulassung		RCM trademark c UL us listed (OL)
Power supply, conductor diameter		0,2 mm² ... 1,5 mm²
Power supply, number of pins/wires		4
Power supply, connection type		2x terminal strip
Permissible voltage fluctuations for electronics/sensors		± 25%
Isolation channel - internal bus		yes
Nominal operating voltage DC of load		24 V
Max. residual current outputs per module		2 A
Operating error limit related to the ambient temperature range		±0.3%
Intrinsic current consumption at nominal operating voltage for electronics/sensors		Typically 60 mA
Wiederholgenauigkeit		±0.05% at 25°C
Module parameters		Deactivate actuator supply Data format for analogue outputs Short circuit diagnostics for actuator supply Parameterisation error diagnostics Diagnostics for undervoltage in load supply Behaviour after short circuit/overload in actuator supply Behaviour after short circuit/overload at analogue output
Diagnostics via bus		Short circuit/overload in actuator supply Short circuit/overload at analogue output Parameterisation error Nominal range exceeded Nominal range not reached Undervoltage in load supply General errors
Number of outputs		4
Abmessungen B x L x H		18.9 x 76.6 x 124.3 mm

FESTO 4080494 Analoges Ausgangsmodul

CPX-E-4AO-U-I
