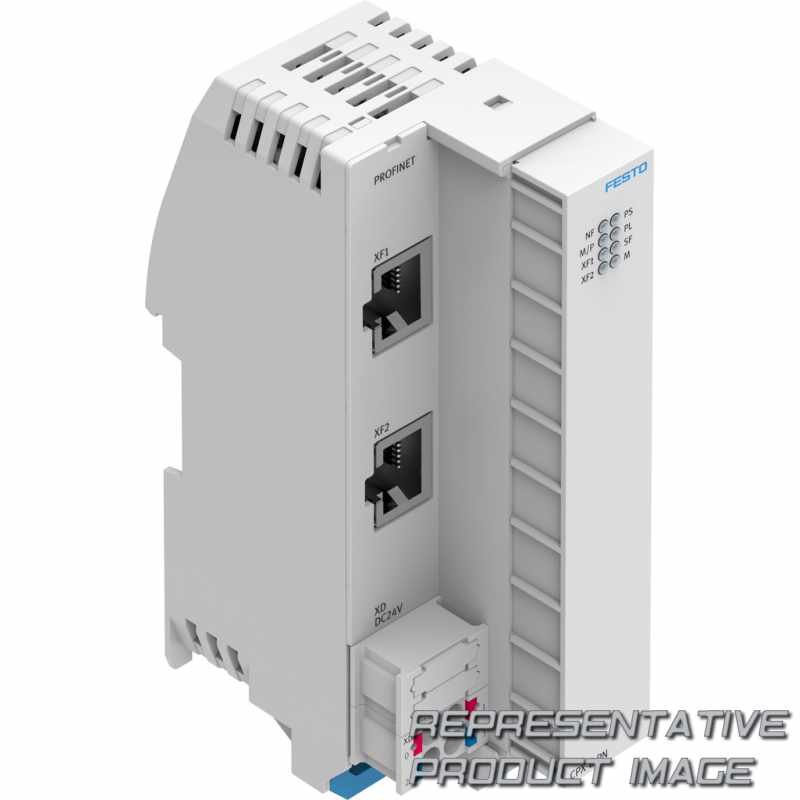

| Werkstoff Gehäuse | PA | ||
| Befestigungsart | With H-rail | ||
| Power supply, note on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| Power supply, connection pattern | 00995847 | ||
| power supply, connection system | Spring-loaded terminal | ||
| Power supply, function | Electronics and sensors | ||
| Power failure bridging | 20 ms | ||
| Max. power supply | 8 A | ||
| Module parameters | Channel alarms bundling Undervoltage diagnostics Channel alarms for undervoltage Process value representation of analogue modules | ||
| Zusatzfunktionen | LLDP MRP MRPD PROFINET FSU PROFINET I&MO..3, 1..3 retentive memory possible PROFINET shared device S2 system redundancy SNMP | ||
| Configuration support | GSDML file | ||
| Diagnostics via LED | Force mode Network fault Network status, port 1 Network status, port 2 Power supply, electronics/sensors Load power supply System fault Service required | ||
| Abmessungen B x L x H | 42.2 x 125.8 x 76.5 mm | ||
| Fieldbus interface, connection pattern | 00995789 | ||
| Feldbus-Schnittstelle, Anzahl Pole/Adern | 8 | ||
| Feldbus-Schnittstelle, Anschlussart | 2x socket | ||
| Feldbusschnittstelle | Ethernet | ||
| Field bus interface, electrical isolation | yes | ||
| Max. address volume, inputs | 64 Byte | ||
| Max. address volume, outputs | 64 Byte | ||
| Note on ambient temperature | -5 - 60°C for vertical installation | ||
| Schutzart | IP20 | ||
| Relative Luftfeuchtigkeit | 95 % Non-condensing | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Schwingfestigkeit | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive | ||
| Zulassung | RCM trademark c UL us listed (OL) |
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Fieldbus interface, max. address volume for outputs | 64 Byte | ||
| Power supply, conductor diameter | 0,2 mm² ... 1,5 mm² | ||
| Power supply, number of pins/wires | 4 | ||
| Power supply, connection type | Terminal strip | ||
| Permissible voltage fluctuations for electronics/sensors | ± 25% | ||
| Nominal DC operating voltage, electronics/sensors | 24 V | ||
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 75 mA | ||
| System parameters | Diagnostic memory Fail-safe response Force mode System start | ||
| Max. number of modules | 10 | ||
| Diagnostics via bus | Wire break Short circuit PROFIsafe addresses different Parameterisation error Upper limit value violated Overtemperature Lower limit value not observed Undervoltage | ||
| Rastermaß | 18,9 mm | ||
| Fieldbus interface, max. address volume for inputs | 64 Byte | ||
| Feldbus-Schnittstelle, Protokoll | PROFINET IRT PROFINET RT | ||
| Feldbus-Schnittstelle, Anschlusstechnik | RJ45 | ||
| Fieldbus interface, function | Bus connection incoming/outgoing | ||
| Field bus interface, transmission rate | 100 Mbit/s | ||
| Note on inputs | 62 bytes with I/O diagnostic interface 62 bytes with status bits 64 bytes without diagnostics | ||
| Note on outputs | 62 bytes with I/O diagnostic interface 64 bytes with status bits 64 bytes without diagnostics | ||
| Produktgewicht | 145 g | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Protection against direct and indirect contact | PELV | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Schockfestigkeit | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 | ||
| Zertifikat ausstellende Stelle | UL E239998 | ||
| KC-Zeichen | KC-EMV |
