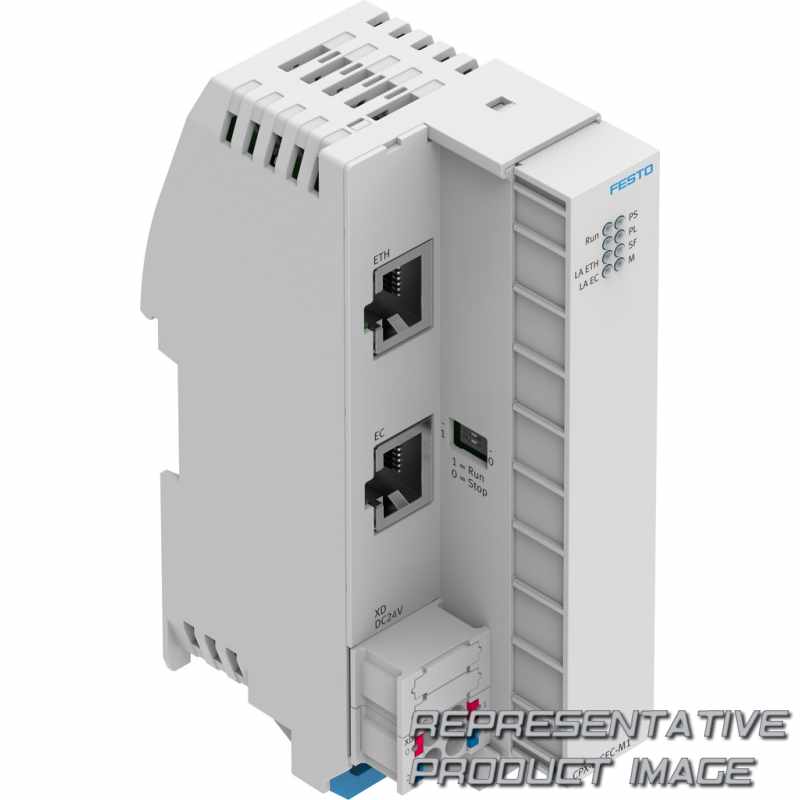

| Abmessungen B x L x H | 42.2 x 125.8 x 76.5 mm | ||
| CPU data | 128 MB RAM Dual Core 650 MHz | ||
| Configuration support | CODESYS V3 | ||
| Zusatzfunktionen | CoDeSys V3 with SoftMotion | ||
| Module parameters | Channel alarms bundling Undervoltage diagnostics Channel alarms for undervoltage Process value representation of analogue modules | ||
| Operator controls | DIL switch for RUN/STOP | ||
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 65 mA | ||
| Function modules | And others Read CPX-E module diagnostics CPX-E diagnostic status Copy CPX-E diagnostic trace | ||
| Flag | 120 kB retentive data CODESYS variable concept | ||
| Power failure bridging | 20 ms | ||
| Program memory | 12 MB user program | ||
| Power supply, function | Electronics and sensors | ||
| power supply, connection system | Spring-loaded terminal | ||
| Power supply, connection pattern | 00995847 | ||
| Power supply, note on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without wire end sleeves | ||
| KC-Zeichen | KC-EMV | ||
| Zertifikat ausstellende Stelle | UL E239998 | ||
| Schockfestigkeit | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Protection against direct and indirect contact | PELV | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Produktgewicht | 145 g | ||
| Max. address volume, inputs | 64 Byte | ||
| Field bus interface, transmission rate | 100 Mbit/s | ||
| Ethernet interface, connection type | Socket | ||
| Ethernet interface, number of pins/wires | 8 | ||
| Ethernet interface, function | Diagnostics | ||
| Ethernet interface, connection pattern | 00995789 | ||
| Feldbus-Schnittstelle, Anschlussart | Socket | ||
| Feldbus-Schnittstelle, Anzahl Pole/Adern | 8 | ||
| Fieldbus interface, connection pattern | 00995789 | ||
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant |
| Rastermaß | 18,9 mm | ||
| Diagnostics via LED | Force mode Network status, engineering port 1 EtherCAT® network status Run Power supply, electronics/sensors Load power supply System fault | ||
| Max. number of modules | 10 | ||
| System parameters | Diagnostic memory Fail-safe response System start | ||
| Buffering time real-time clock | 3 Weeks | ||
| Processing time | Approx. 200 µs/1 k instruction | ||
| IP address setting | DHCP Via CODESYS | ||
| Max. power supply | 8 A | ||
| Nominal DC operating voltage, electronics/sensors | 24 V | ||
| Programming software | CODESYS provided by Festo | ||
| Permissible voltage fluctuations for electronics/sensors | ± 25% | ||
| Power supply, connection type | Terminal strip | ||
| Power supply, number of pins/wires | 4 | ||
| Power supply, conductor diameter | 0,2 mm² ... 1,5 mm² | ||
| Zulassung | RCM trademark c UL us listed (OL) | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive | ||
| Schwingfestigkeit | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Relative Luftfeuchtigkeit | 95 % Non-condensing | ||
| Schutzart | IP20 | ||
| Note on ambient temperature | -5 - 60°C for vertical installation | ||
| Max. address volume, outputs | 64 Byte | ||
| Field bus interface, electrical isolation | yes | ||
| Feldbusschnittstelle | Ethernet | ||
| Ethernet interface, connection system | RJ45 | ||
| Ethernet interface, transmission rate | 10 Mbit/s 100 Mbit/s | ||
| Ethernet interface, protocol | EasyIP Modbus® TCP OPC UA TCP/IP | ||
| Fieldbus interface, function | Outgoing bus connection | ||
| Feldbus-Schnittstelle, Anschlusstechnik | RJ45 | ||
| Feldbus-Schnittstelle, Protokoll | EtherCAT Master | ||
| Befestigungsart | With H-rail | ||
| Werkstoff Gehäuse | PA |
