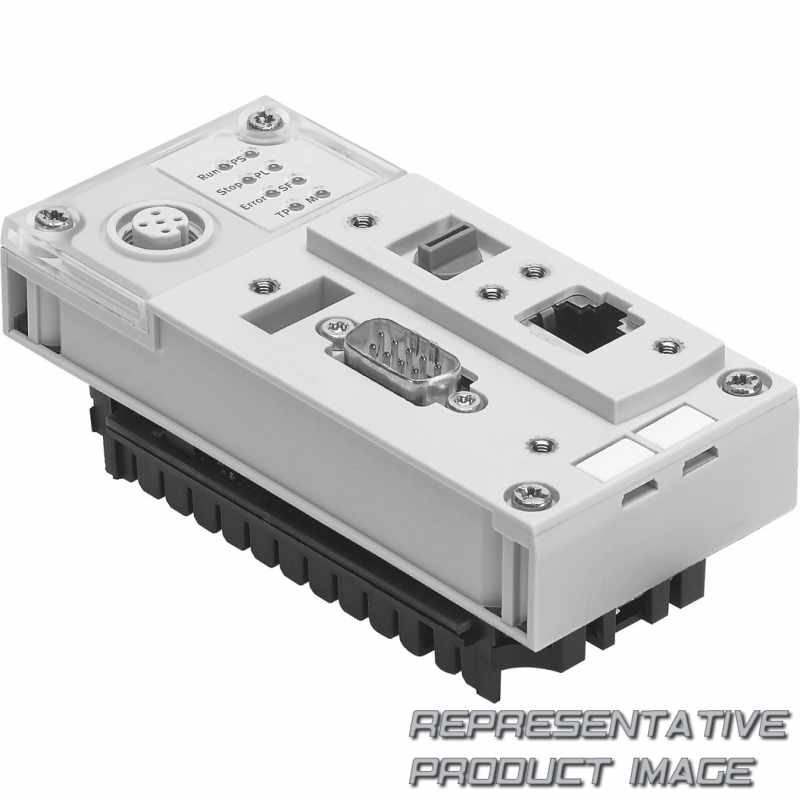

| Werkstoff Gehäuse | PA-reinforced PC | ||
| LED display, product-specific | ERR: PLC runtime error M: Modify/forcing active PL: Load supply PS: Electronics supply, sensor supply RUN: PLC status SF: System fault STOP: PLC status | ||
| Ethernet interface | RJ45 (socket, 8-pin) | ||
| Protokoll | CODESYS Level 2 EasyIP Modbus® TCP TCP/IP | ||
| Field bus interface, connection system | Plugs Sub-D 9-pin | ||
| Field bus interface, electrical isolation | yes | ||
| Ethernet, supported protocols | TCP/IP, EasyIP, Modbus TCP | ||
| Ethernet, number | 1 | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Relative Luftfeuchtigkeit | 95 % Non-condensing | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Programming language | To IEC 61131-3 KOP AWL ST FUP AS Additionally CFC | ||
| Power failure bridging | 10 ms | ||
| Nominal DC operating voltage, load voltage | Without pneumatic components: 18 ... 30 V 24 V With pneumatics type midi/maxi: 21.6 ... 26.4 V With pneumatics type CPA: 20.4 ... 26.4 V With pneumatics type MPA: 18 ... 30 V | ||
| Function modules | Read CPX module diagnostics CPX diagnostic status Copy CPX diagnostic trace And others | ||
| Intern power consumption nominal operating voltage | Typ. 85 mA | ||
| Baud rate | 10/100 bit/s to IEEE 802.3 (10BaseT) or 802.3u (100BaseTx) | ||
| Programming, operating language | DE, EN | ||
| Zusatzfunktionen | Diagnostic functions Motion functions for electric drives | ||
| Total number of axes | 31 | ||
| CPU data | 32 MB flash 32 MB RAM 400 MHz processor | ||
| Abmessungen B x L x H | 50 x 107 x 55 mm |
| Werkstoff-Hinweis | RoHS-compliant | ||
| LED display, bus-specific | TP: Link/traffic | ||
| Control-Interface | CAN bus | ||
| Feldbusschnittstelle | CAN bus | ||
| Field bus interface, transmission rate | 125, 250, 500, 800, 1000 kbit/s Can be set using software | ||
| Ethernet, plug connector | RJ45 Bushing 8-pin | ||
| Ethernet, data transmission rate | 10/100 Mbit/s | ||
| Produktgewicht | 155 g | ||
| Schutzart | IP65 IP67 | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Program memory | 4 MB user program | ||
| Programming software | CODESYS provided by Festo V2.3 | ||
| Nennbetriebsspannung DC | 24 V | ||
| Flag | 30 kB remanent data 8 MB global data memory CODESYS variable concept | ||
| IP address setting | DHCP Via CODESYS Via MMI | ||
| Processing time | Approx. 200 µs/1 k instruction | ||
| Programming, support for file handling | yes | ||
| Operator controls | DIL switch for CAN termination Rotary switch for RUN/STOP | ||
| Configuration support | CODESYS V2.3 | ||
| Parameterisation | CoDeSys V2.3 | ||
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage/short circuit of modules Diagnostic memory |
