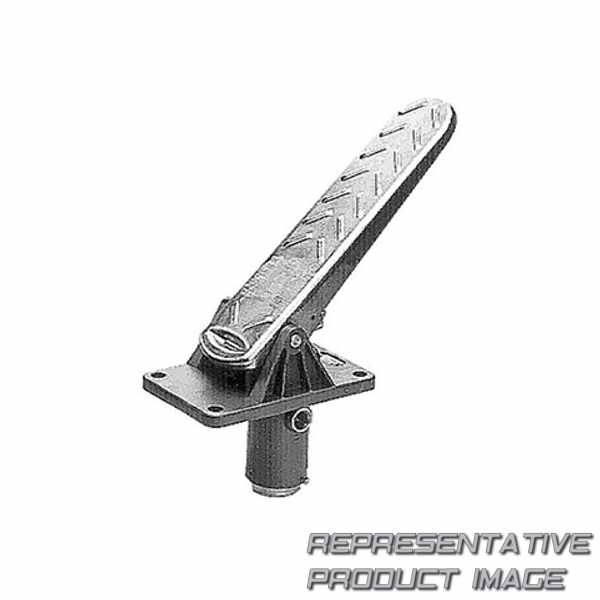

| Typ | poppet valve | ||
| compressed air connection input | g 1/4 | ||
| compressed air connection output | g 1/4 | ||
| working pressure max | 10 bar | ||
| regulation range max. | 4.6 bar | ||
| max. ambient temperature | 70 °c | ||
| max. medium temperature | 70 °c | ||
| nominal flow qn | 900 l/min | ||
| actuating force min. | 77 n | ||
| Gehäusematerial | die cast zinc |
| actuating element | pedal | ||
| compressed air connection type input | internal thread | ||
| working pressure min. | 0.1 bar | ||
| regulation range min. | 0.1 bar | ||
| min. ambient temperature | -25 °c | ||
| min. medium temperature | -25 °c | ||
| Medium | compressed air | ||
| Hysterese | < 0,15 bar | ||
| Gewicht | 1.5 kg | ||
| seal material | acrylonitrile butadiene rubber |
