| material reservoir | die-cast aluminum | ||
| Gehäusematerial | die cast zinc | ||

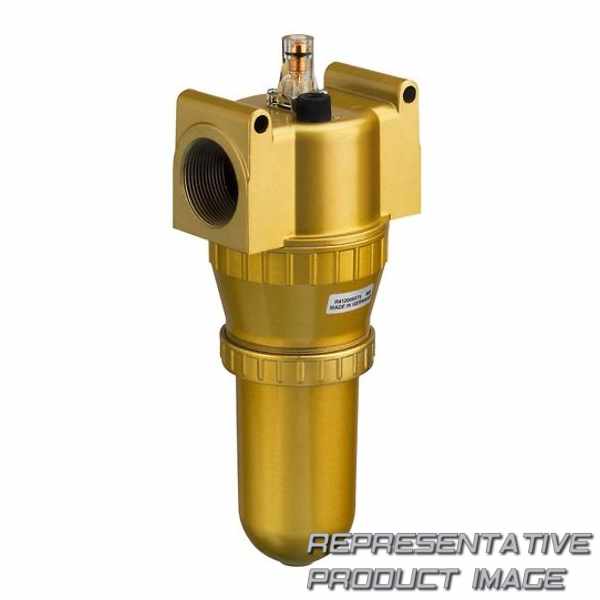

| Funktion | oil-mist lubricator | ||
| lubricator reservoir volume | 550 cm³ | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||
| nominal flow qn | 9000 l/min | ||
| reservoir | metal reservoir without window |
| seal material | acrylonitrile butadiene rubber | ||
| Gewicht | 1.5 kg | ||
| oil dosing at 1000 l/min | 1-2 drops | ||
| type of filling | manual oil filling | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 25 bar | ||
| mounting orientation | vertical | ||
| compressed air connection | g 1 1/4 | ||
| parts | lubricator |
