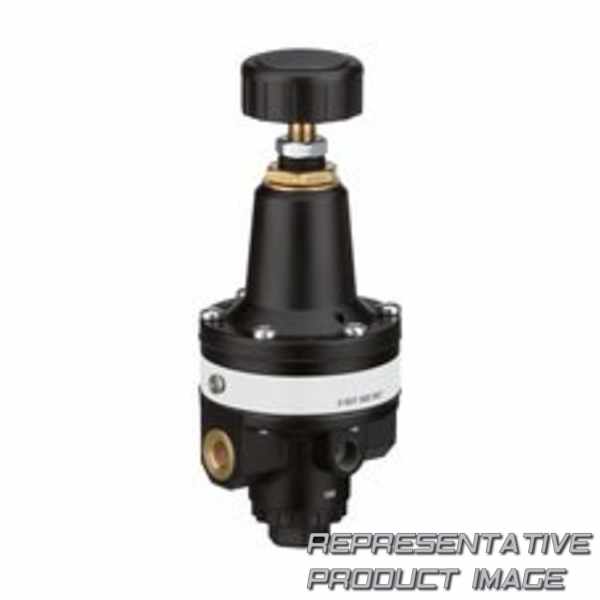

| Funktion | precision pressure regulator | ||
| port | g 1/2 | ||
| mounting orientation | any | ||
| regulation range min. | 0.05 bar | ||
| working pressure min. | 0.5 bar | ||
| min. ambient temperature | -35 °c | ||
| activation | mechanical | ||
| certificates | suitable for atex | ||
| pressure supply | single | ||
| Medium | compressed air, neutral gases | ||
| Gewicht | 1.5 kg | ||
| seal material | chloroprene rubber |
| parts | precision pressure regulator | ||
| qn = | 6500 l/min | ||
| regulator type | diaphragm-type pressure regulator | ||
| regulation range max. | 7 bar | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 60 °c | ||
| atex | suitable for atex | ||
| regulator function | with relieving air exhaust | ||
| internal air consumption qv max. | 6 l/min | ||
| recommended pre-filtering | 5 µm | ||
| Gehäusematerial | die cast zinc |
