| seal material | acrylonitrile butadiene rubber | ||
| Gewicht | 1.5 kg | ||
| Hysterese | < 0,15 bar | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| regulation range min. | 0.1 bar | ||
| working pressure min. | 0.1 bar | ||
| compressed air connection type input | internal thread | ||

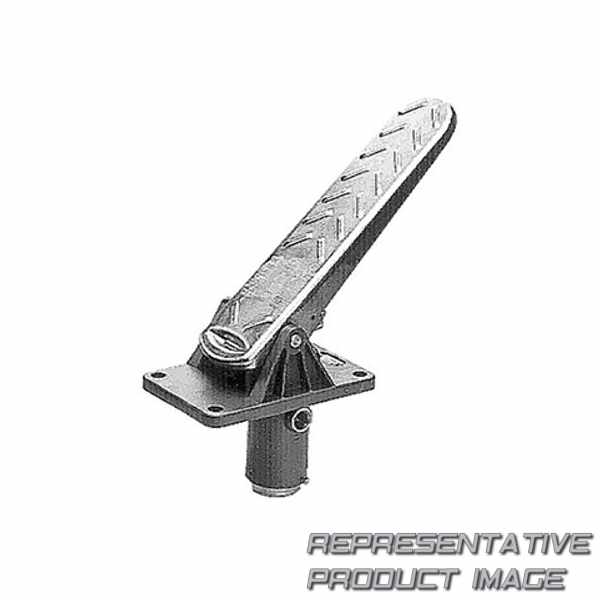

| actuating element | pedal |
| Gehäusematerial | die cast zinc | ||
| actuating force min. | 90 n | ||
| nominal flow qn | 900 l/min | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| regulation range max. | 7.1 bar | ||
| working pressure max | 10 bar | ||
| compressed air connection output | g 1/4 | ||
| compressed air connection input | g 1/4 | ||

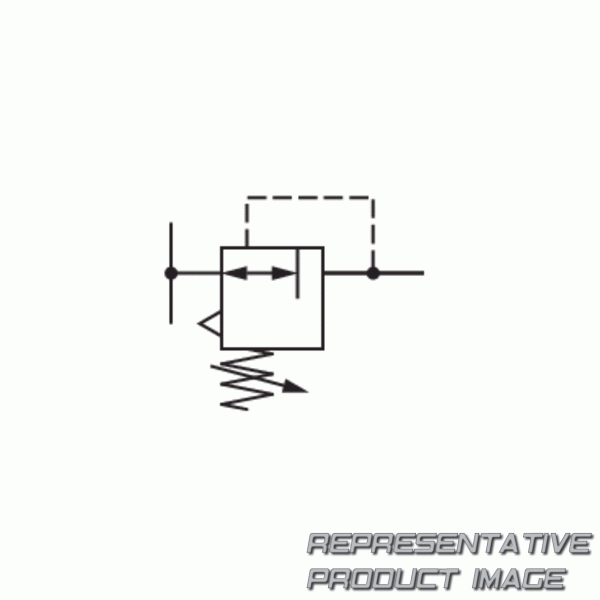

| Typ | poppet valve |
