| material filter insert | polyethylene | ||
| seal material | acrylonitrile butadiene rubber | ||
| mounting orientation | vertical | ||
| filter element | exchangeable | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 1.5 bar | ||
| nominal flow qn | 12500 l/min | ||
| port | g 1 1/4 | ||

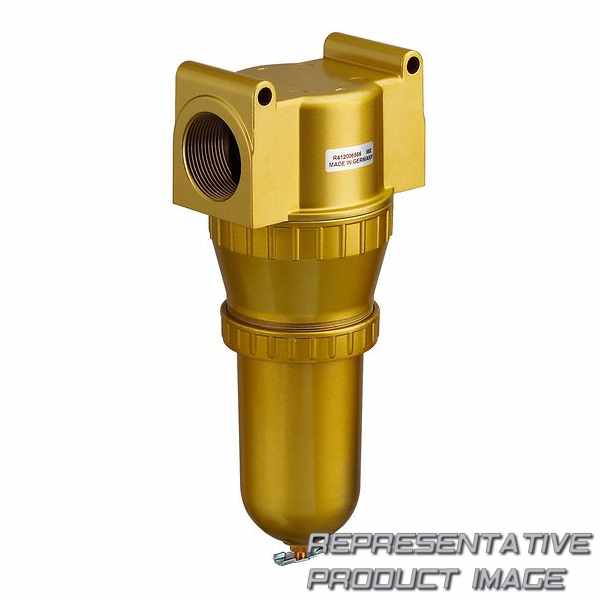

| parts | filter |
| material reservoir | polycarbonate | ||
| Gehäusematerial | die cast zinc | ||
| Gewicht | 1.5 kg | ||
| filter reservoir volume | 300 cm³ | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 16 bar | ||
| Kondensatablass | fully automatic, open without pressure | ||
| filter porosity | 40 µm | ||
| reservoir | metal reservoir without window |
