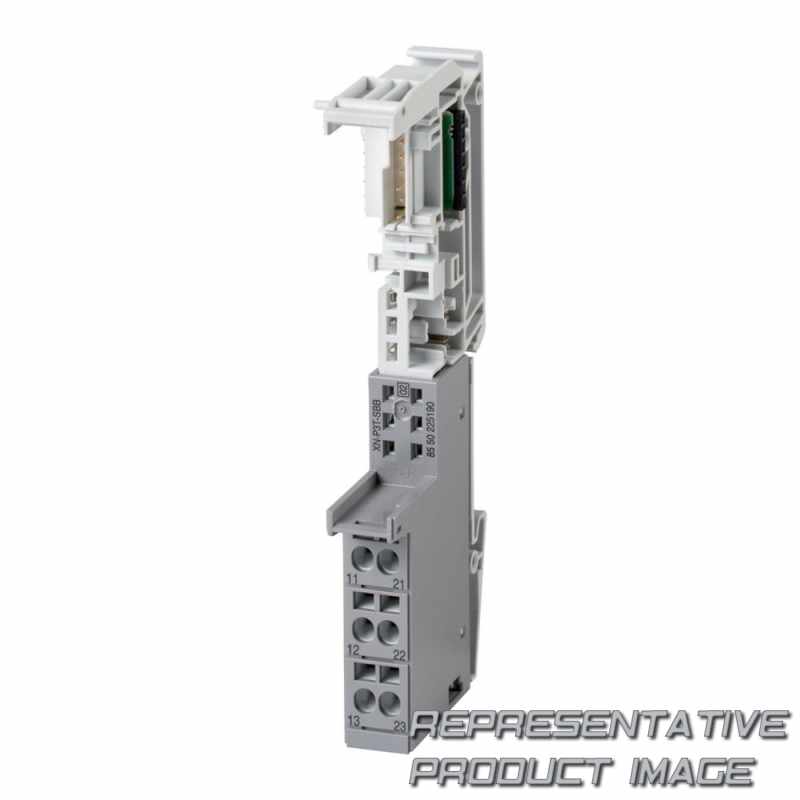

140074 Eaton

EATON 140074

Name: 140074 EATON
Brand: EATON
SKU: 801801-de-eur
Price: 15.66 EUR
Availability: InStock

xn-p3t-sbb

15,66 €

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Einbaulage	rail mounting possible
Breite	12.6 mm

Gewicht	31g

Technical data

Schockfestigkeit		mechanical, according to iec/en 60068-2-27 continuous according to iec/en 60068-2-29
Environmental conditions		harmful gasses - so2: 10 ppm (relative humidity < 75%, no condensation) harmful gasses - h2s: 1 ppm (relative humidity < 75%, no condensation)
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
Typ		xi/on slice card base module
explosion safety category for dust		none
sil (iec 61508)		none
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
input voltage at ac 60 hz - max		0 v
relative humidity		5 - 95 % (indoor, level rh-2, non-condensing for storage at 45°c)
electromagnetic fields		according to iec en 61100-4-2
Anschlussart		spring-loaded/screw terminal, connection design in top direction
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
input voltage at ac 60 hz - min		0 v
heat dissipation capacity pdiss		0 w
terminal capacity		0.5 - 1.5 mm², flexible without ferrule, h07v-k 0.5 - 1.5 mm², with ferrules without plastic collar according to din 46228-1 (ferrules crimped gas-tight) 0.5 - 1.5 mm², with ferrules with plastic collar according to din 46228-1 (ferrules crimped gas-tight) 0.5 - 2.5 mm², solid, h07v-u
potential isolation		through optocoupler: yes
safety performance level (en iso 13849-1)		none
heat dissipation per pole, current-dependent pvid		0 w
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
output voltage at ac 60 hz - max		0 v
voltage dips		according to en 61131-2 (voltage fluctuations/voltage dips)
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
emitted interference		230 - 1000 mhz (radiated, high frequency, according to en 55016-2-3) 30 - 230 mhz (radiated, high frequency, according to en 55016-2-3)
output voltage at ac 60 hz - min		0 v
explosion safety category for gas		none
input voltage at dc - max		0 v
output current at ac, 60 hz - max		0 a
Schwingfestigkeit		according to iec/en 60068-2-6
surge rating		according to iec/en 61000-4-5 level 4
stripping length (main cable)		8 mm
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
number of slots		1
mounting method		rail mounting possible
10.4 clearances and creepage distances		meets the product standard's requirements.
10.11 short-circuit rating		is the panel builder's responsibility.
radiated rfi		iec/en 61100-4-6
certifications		iec/en 6113-2 rated data for terminations according to iec/en 60947-7-1 ul file no.: e205091 ul report applies to both us and canada certified by ul for use in canada csa-c22.2 no. 142 iec/en 61000-6-4 ul category control no.: nraq, nraq7 ul recognized csa class no.: 2252-01, 2252-81 ce iec/en 61000-6-2 iec/en 61131-2 ul 508 ce, cul
product width		12.6 mm
product length/depth		117.6 mm

input voltage at ac 50 hz - min		0 v
10.2.7 inscriptions		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
burst impulse		according to iec/en 61000-4-4
output current at dc - max		0 a
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
output current at ac, 50 hz - max		0 a
Schutzart		ip20
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
input current at ac - max		0 a
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
number of connection levels		3
air discharge		air/contact discharge according to iec/en 61000-4-2
equipment heat dissipation, current-dependent pvid		0 w
output voltage at dc - max		0 v
drop and topple		according to iec 60068-2-31, free fall according to iec 60068-2-32
voltage type		dc
10.3 degree of protection of assemblies		meets the product standard's requirements.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
output voltage at dc - min		0 v
used with		xn-pf-24vdc-d xn-pf-120/230vac-d xn-br-24vdc-d
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		0 °c
static heat dissipation, non-current-dependent pvs		0 w
input current at dc - max		0 a
ambient operating temperature - max		55 °c
output voltage at ac 50 hz - min		0 v
system accessory		yes
10.8 connections for external conductors		is the panel builder's responsibility.
fitted with:		pluggable modules, central modules power supply pluggable modules, others
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
output voltage at ac 50 hz - max		0 v
input voltage at dc - min		0 v
gauge pin		a1 (according to iec/en 60947-1)
10.12 electromagnetic compatibility		is the panel builder's responsibility.
input voltage at ac 50 hz - max		0 v
rated operational current for specified heat dissipation (in)		0 a
catalog notes		base module for the gateway supply (with xn‑br-24v dc-d)
Produktgewicht		.031 kg
product height		49.9 mm
ean		7640130120952

EATON 140074

xn-p3t-sbb
