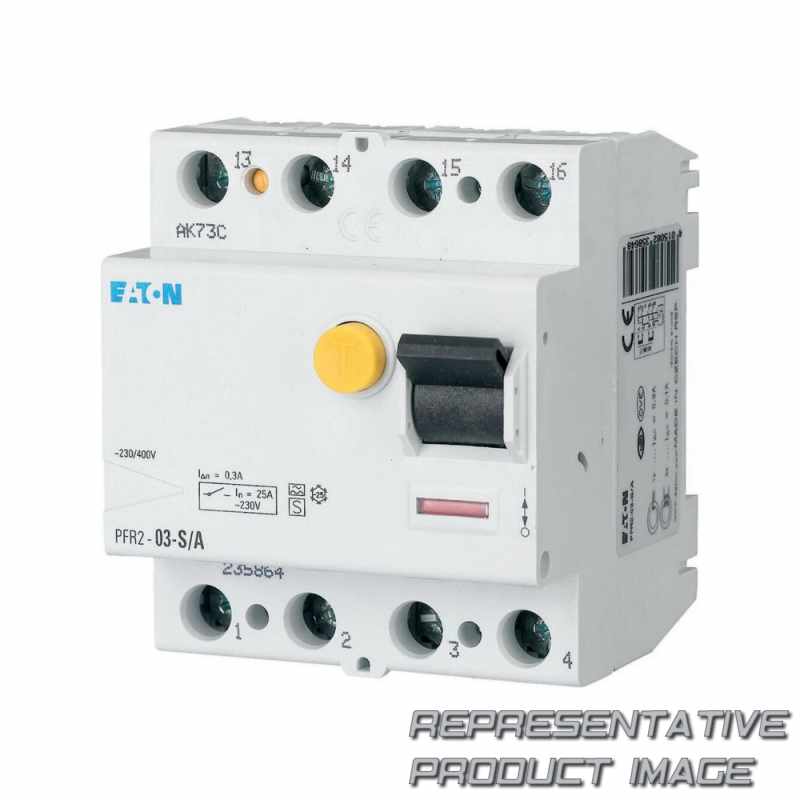

235868 Eaton

EATON 235868

Name: 235868 EATON
Brand: EATON
SKU: 801907-de-eur
Price: 25.12 EUR
Availability: InStock

pfr2-03-u

25,12 € ~~31,40 €~~ -19%

4 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Einbaulage	din rail quick attachment with 2 latch positions on top-hat rail iec/en 60715
Breite	70 mm

Gewicht	296g

Technical data

rated insulation voltage (ui)		440 v
rated fault current - min		.3 a
surge current capacity		5 ka
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
Typ		pfr2 residual current relay type u
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
connectable conductor cross section (multi-wired) - min		1.5 mm²
Verschmutzungsgrad		2
rated short-time withstand current (icw)		10 ka
connectable conductor cross section (solid-core) - max		35 mm²
voltage rating		230 v ac / 400 v ac
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
busbar material thickness		0.8 mm - 2 mm
heat dissipation capacity		0 w
built-in width (number of units)		70 mm (4 su)
leakage current type		a
voltage type		ac
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
terminal capacity (solid wire)		1.5 mm² - 35 mm²
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
lifespan, electrical		4000 operations
built-in depth		69.5 mm
heat dissipation per pole, current-dependent		0 w
sensitivity type		pulse-current sensitive
terminal protection		finger and hand touch safe, dguv vs3, en 50274
10.8 connections for external conductors		is the panel builder's responsibility.
tripping time		40 ms delayed - selective switch off
test circuit range		184 v ac - 440 v ac
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
mounting method		din rail quick attachment with 2 latch positions on top-hat rail iec/en 60715
10.4 clearances and creepage distances		meets the product standard's requirements.
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
compliances		rohs conform
product width		70 mm
product length/depth		80 mm

rated operational voltage (ue) - max		400 v
permitted storage and transport temperature - max		60 °c
10.2.7 inscriptions		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
connectable conductor cross section (multi-wired) - max		16 mm²
rated impulse withstand voltage (uimp)		4 kv
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
accessories required		z-hk 248432
Schutzart		ip20 ip20, ip40 with suitable enclosure
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
lifespan, mechanical		20000 operations
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
width in number of modular spacings		4
terminals (top and bottom)		twin-purpose terminals
frame		45 mm
terminal capacity (stranded cable)		16 mm² (2x)
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
used with		klv-tc-4 276241 (compact enclosure) z-rc/ak-4te 101062 (sealing cover set) pfr2 residual current relay type u
rated short-circuit strength		5 ka
ambient operating temperature - min		-25 °c
number of poles		four-pole
connectable conductor cross section (solid-core) - min		1.5 mm²
Features		selective protection residual current relay additional equipment possible
climatic proofing		25-55 °c / 90-95% relative humidity according to iec 60068-2
ambient operating temperature - max		60 °c
special features		ambient temperature hint: starting at 40 °c, the max. permissible continuous current decreases by 3% for every 1 °c tripping signal contact for subsequent installation z-nhk 248434
fault current rating		300 ma
frequency rating		50 hz
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
rated fault current - max		.3 a
amperage rating		25 a
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
permitted storage and transport temperature - min		-35 °c
rated operational current for specified heat dissipation (in)		25 a
Produktgewicht		.296 kg
product height		76 mm
ean		4015082358686

EATON 235868

pfr2-03-u
