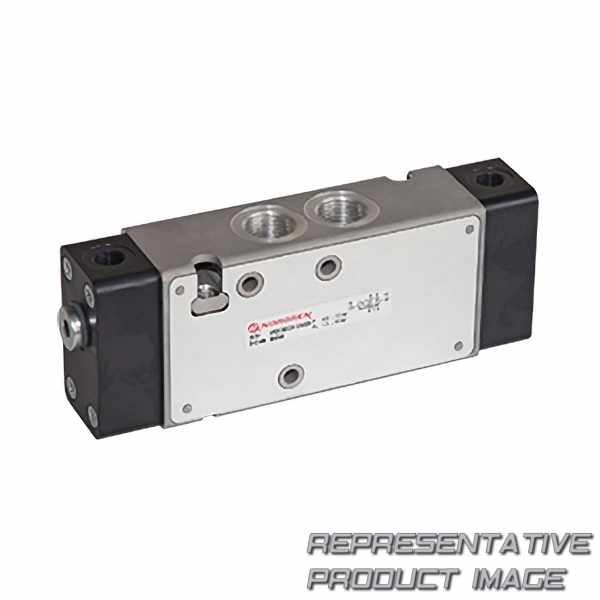

NORGREN V63D5DDA-XA020 inline valves - pilot

Name: V63D5DDA-XA020 NORGREN
Brand: NORGREN
SKU: 786996-de-eur
Price: 383.26 EUR
Availability: InStock

383,26 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / air pilot
max. Druck	-0.9 ... 16 bar

Breite	107mm
Gewicht	920g

actuation		air pilot / air pilot
data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow dm3sec		70 dm3/sec
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 16 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		76 mm
weight weight kilogram		0.92 kg
pilot exhaust		g1/8
Anschlussgröße		g1/2
spool		stainless steel
valve operation		5/2

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		4200 l/m
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 232 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		235 mm
width length millimetre		107 mm
pilot pressure pressure bar min to max range		1.5 ... 16 bar
range		v60…63
springs		stainless steel
