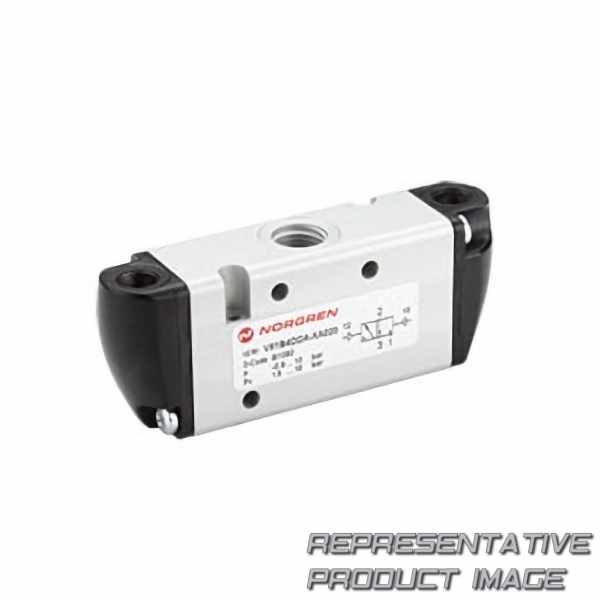

NORGREN V63D4DDA-XA020 inline valves - pilot

Name: V63D4DDA-XA020 NORGREN
Brand: NORGREN
SKU: 781145-de-eur
Price: 359.76 EUR
Availability: InStock

359,76 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / air pilot
max. Druck	-0.9 ... 16 bar

Breite	107mm
Gewicht	725g

actuation		air pilot / air pilot
data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow dm3sec		70 dm3/sec
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 16 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		76 mm
weight weight kilogram		0.725 kg
pilot pressure pressure bar min to max range		1.5 ... 10 bar
range		v60…63
springs		stainless steel

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		4200 l/m
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 232 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		235 mm
width length millimetre		107 mm
Anschlussgröße		g1/2
spool		stainless steel
valve operation		3/2
