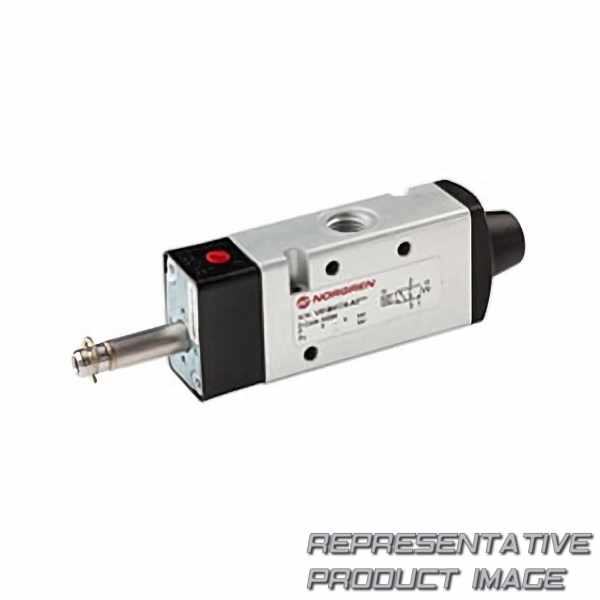

NORGREN V63D417A-A2000 inline valves - solenoid

Name: V63D417A-A2000 NORGREN
Brand: NORGREN
SKU: 782082-de-eur
Price: 217.5 EUR
Availability: InStock

217,50 € ~~426,26 €~~ -48%

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	solenoid pilot / spring return
max. Druck	2 ... 10 bar

Breite	107mm
Gewicht	746g

actuation		solenoid pilot / spring return
data performance b10 value number of cycles		12000000
eu country of origin		czechia
flow flow dm3sec		70 dm3/sec
Handhilfsbetätigung		turn to lock
mil spec		available on request
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		235 mm
width length millimetre		107 mm
Anschlussgröße		g1/2
spool		stainless steel
valve operation		3/2

body		aluminium
data performance shelf life		10 years
Features		high flow rate
flow flow litresperminute		4200 l/m
Medium		compressed air
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		76 mm
weight weight kilogram		0.746 kg
pilot		internal
range		v60…63
springs		stainless steel
