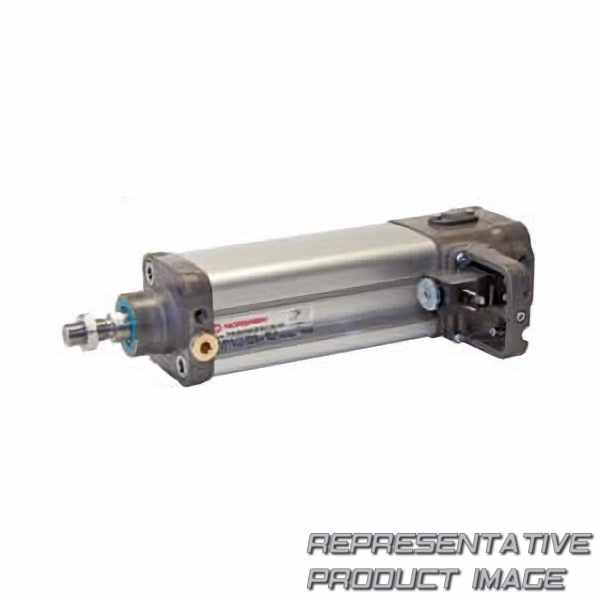

NORGREN PRA/882032/MIB/M4/100 ivac cleanline cylinder

Name: PRA/882032/MIB/M4/100 NORGREN
Brand: NORGREN
SKU: 783289-de-eur
Price: 701.24 EUR
Availability: SoldOut

701,24 € ~~999,26 €~~ -29%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Hub	100 mm
Actuation Type	solenoid pilot / solenoid pilot
max. Druck	2 ... 8 bar
Versorgungsspannung	24vdc

actuation		solenoid pilot / solenoid pilot
brochure		z9558br_norgren-ivac_en_lr.pdf
cylinder diameter metric length millimetre		32 mm
eu country of origin		germany
mil spec		available on request
operating pressure pressure bar min to max range		2 ... 8 bar
operating temperature f temperature fahrenheit min to max range		23 ... 122 °f
operation		double acting
length length millimetre		242 mm
width length millimetre		68.5 mm
piston rod material		stainless steel
Kolbenstangengewinde		m12 x 1.25
Schutzklasse		ip67
retrieve price		true
spool technology		glandless spool and sleeve
stroke length metric length millimetre		100 mm
theoretical force force newton		482 n
voltage		24vdc

barrel		anodised aluminium
Dämpfung		adjustable cushioning
data performance shelf life		10 years
Medium		compressed air
non magnetic or magnetic		magnetic
operating pressure psi pressure psi min to max range		29 ... 116 psi
operating temperature temperature celsius min to max range		-5 ... 50 °c
height length millimetre		94 mm
weight weight kilogram		0.94 kg
piston rod diameter metric length millimetre		16 mm
piston rod seals		polyurethane
Anschlussgröße		g1/8
range		pra/882000
Baureihe		ivac
Standard		vdma 24 562
switch type		solid state
valve operation		5/2
