| Recommended tightening torque for set screw | 3,9 N-m | ||
| Operating temperature min. | -10 °C | ||
| C - Dynamic load rating | 19,4 kN | ||

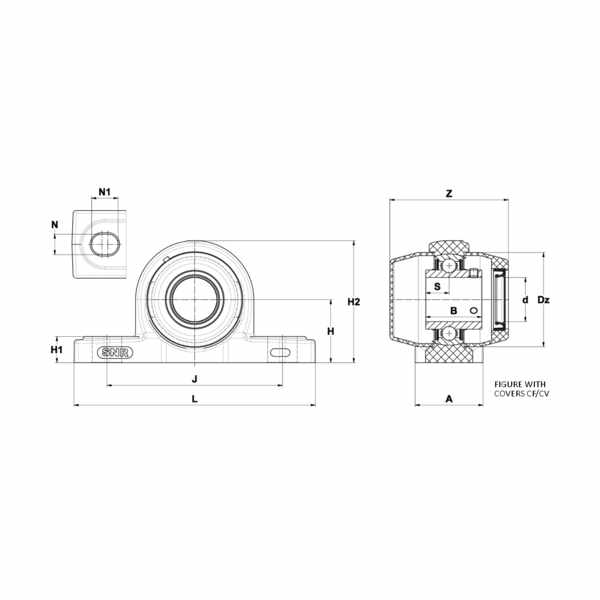

| N1 - Mounting hole length | 18 mm | ||
| L - Housing length | 162 mm | ||
| H2 - Housing height | 83 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 42,9 mm | ||
| Brand | SNR |
| Operating temperature max. | 80 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| N - Mounting hole dimension | 14 mm | ||
| J - Mounting holes distance | 119 mm | ||
| H1 - Housing foot height | 17,8 mm | ||
| A - Housing width | 46 mm |
