| Brand | SNR | ||

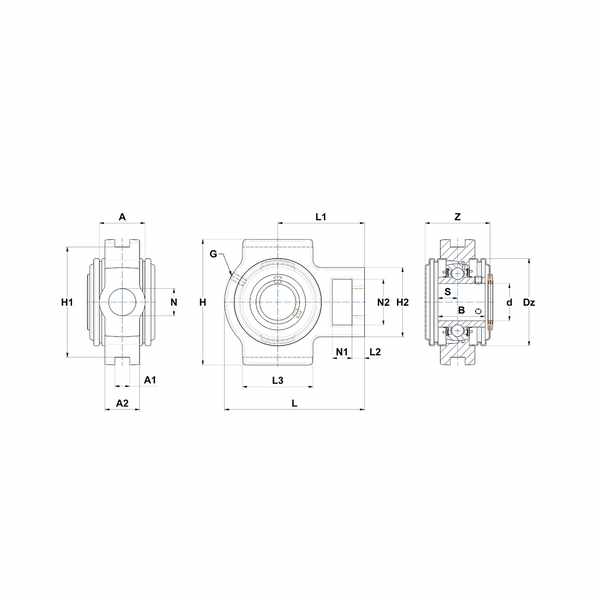

| A1 - Width of location slot | 12 mm | ||
| Dz - Outer diameter of cover | 70 mm | ||
| H - Housing length, width or diameter | 102 mm | ||
| H2 - Housing height / width | 56 mm | ||
| L1 - Distance attachment end face to bearing centerline | 70 mm | ||
| L3 - Length of guidance slot/face | 57 mm | ||
| N1 - Length of attachment slot | 16 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| C - Dynamic load rating | 19,5 kN | ||
| Operating temperature min. | -20 °C |
| A - Housing width | 37 mm | ||
| A2 - Width over loc. slot flange(T/ST)/width at mount. hole(EHE) | 28 mm | ||
| G - Grease fitting | M6x1 | ||
| H1 - Distance between bottoms of location slots | 89 mm | ||
| L - Housing length | 113 mm | ||
| L2 - Thickness of attachment end | 10 mm | ||
| N - Mounting hole dimension | 22 mm | ||
| N2 - Height of attachment slot | 37 mm | ||
| Z - Width over covers | 52,5 mm | ||
| C0 - Static load rating | 11,2 kN | ||
| Operating temperature max. | 100 °C |
