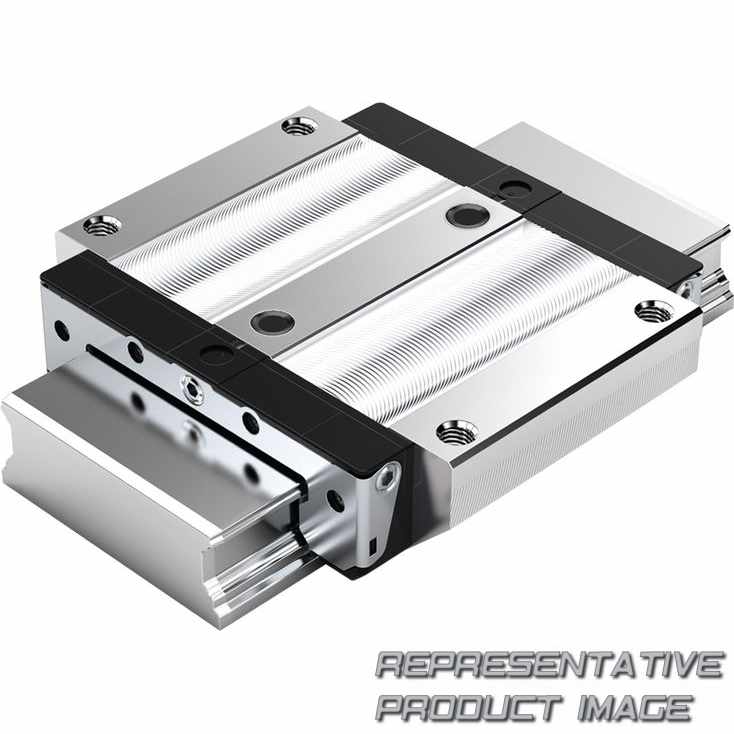

REXROTH R167159370 ball runner block resist cr

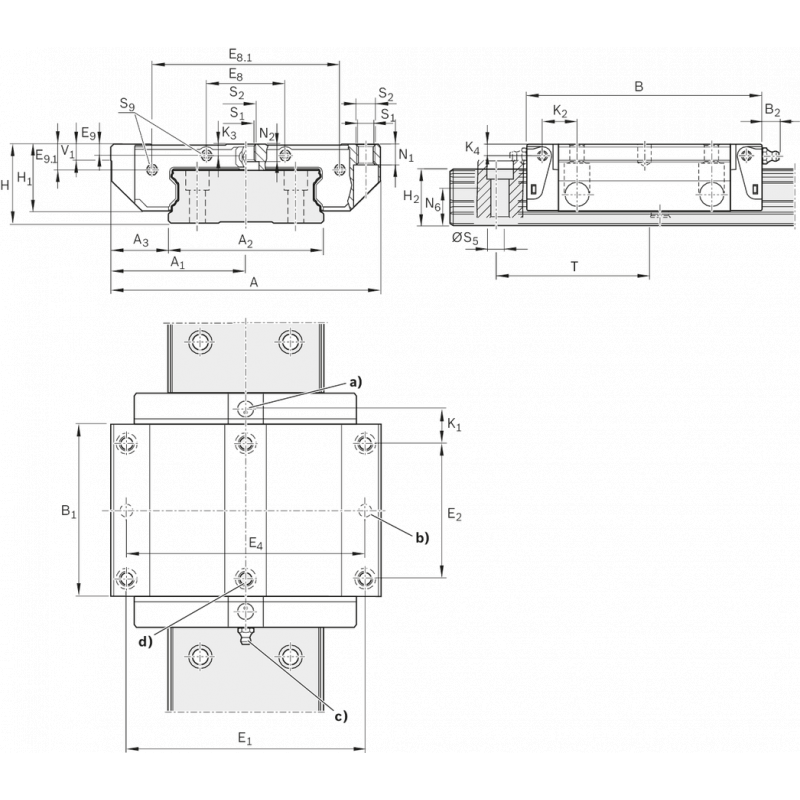

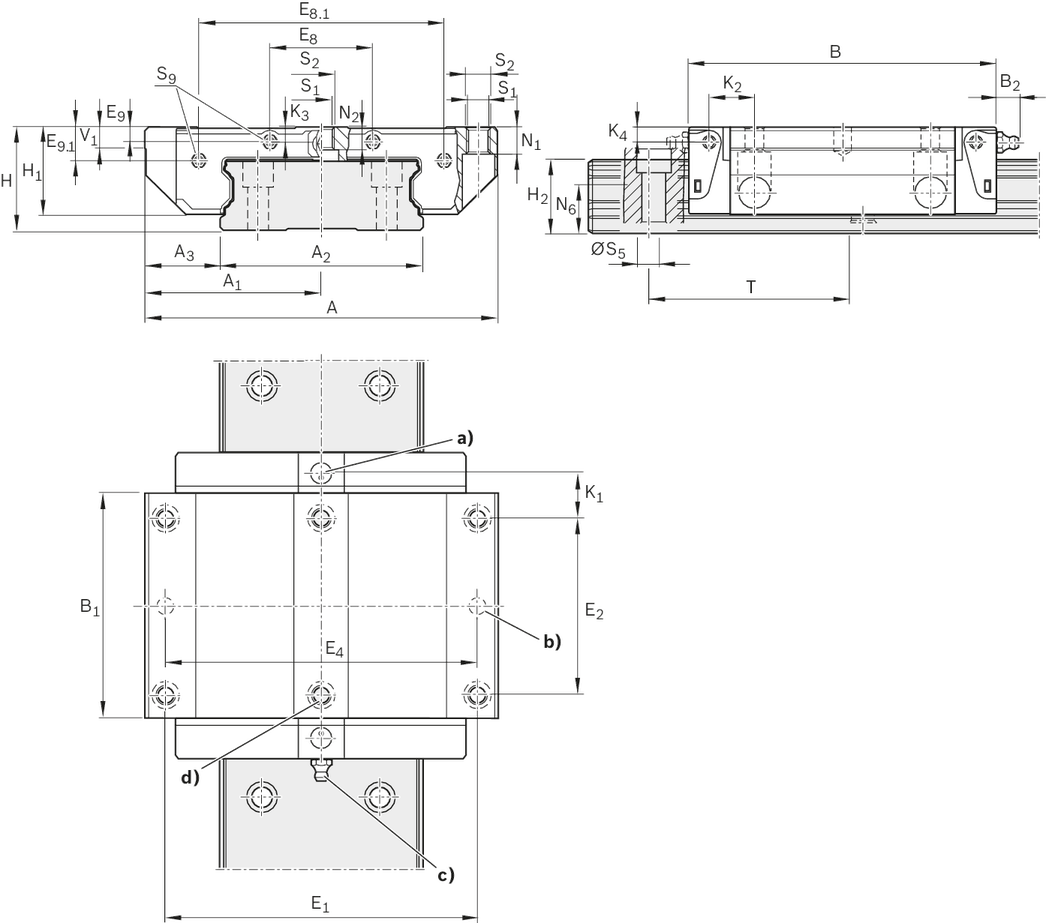

^a) For O-ring
Size 20/40: Ø 5 · 1.0 (mm)
Size 25/70: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
^b) Recommended position for pin holes (dimension E₄ see general technical notes and information in the "Installation" section).
Rough-drilled holes may be present here from manufacturing.
These may be bored open.
^c) Lube nipple, size 20/40:
Funnel-type lube nipple DIN 3405-A M3x5, B₂ = 1.6 mm
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
Lube nipple, size 25/70:
Hydraulic-type lube nipple DIN 71412-A M6x8, B₂ = 9.5 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed). Connection is possible on all sides.
^d) Sealing plugs may be present here from manufacturing. Remove these prior to mounting.
