REXROTH BNS
219 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie REXROTH BNS – Wide, normal, standard hight R0443, Wide, normal, standard height R1671...2, Wide, long, standard hight R0441, Wide, normal, standard height R1671...1, etc. Finden Sie das passende Produkt durch Filtern mit Baureihe, Baugröße, Vorspannungsklasse, Abdeckleiste, Genauigkeitsklasse, Dichtungen und Abschnitte.
BNS Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| BNS |
R0443- - - -
R1671- - - - R0441- - - - R1671-3- - -10 More Options |
Wide, normal, standard hight R0443
Wide, normal, standard height R1671...2 Wide, long, standard hight R0441 Wide, normal, standard height R1671...1 More Options |

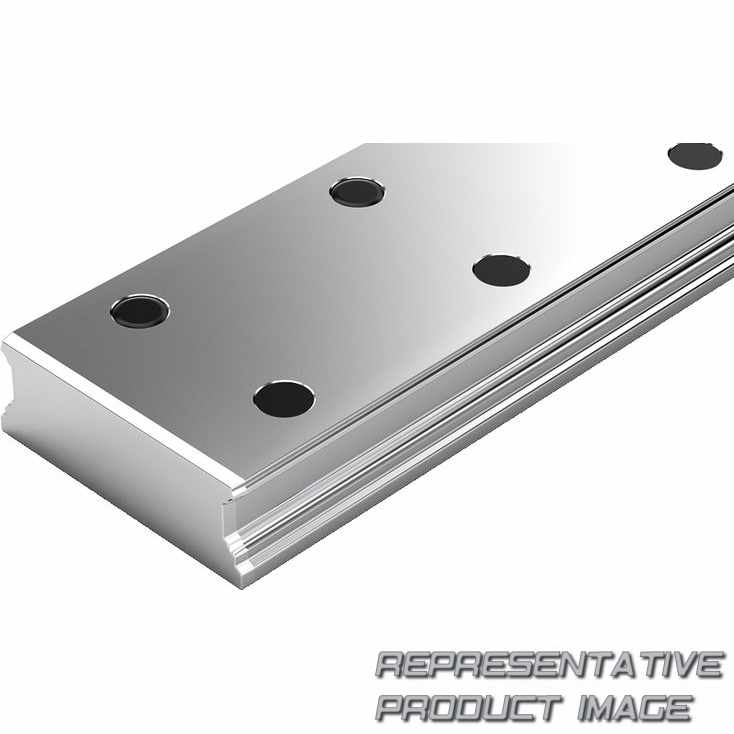

| BNS | R0455- - - - | BNS wide, miniature ball guide rail without / with cover strip R0455 |
| BNS |
R1675- - -
R1673- -3- R1677- - - R1676- - - |

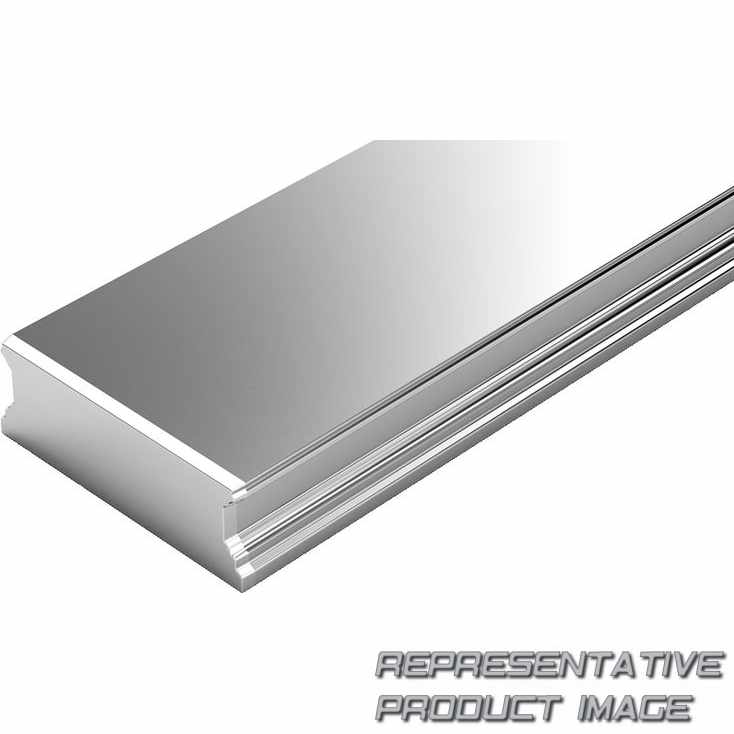

BNS with plastic caps R1675
BNS with plastic caps R1673 BNS for bolting from below R1677 BNS with caps made of steel R1676 |
Typcode zur Katalognummer BNS,
R0443- - - -
,
R1671- - - -
,
R0441- - - -
,
R1671-3- - -10
,
R1671- -9-3-
,
R1671-3- -3-60
| 001 | Series |
|---|---|
| R0441 | Wide, long, standard hight R0441 |
| R0443 | Wide, normal, standard hight R0443 |
| R1671 | Wide, normal, standard height R1671...2 |
| R1671 | Wide, normal, standard height R1671...1 |
| R1671 | Wide, normal, standard height R1671...6 |
| 002 | Size |
| 2 | 12 size |
| 3 | 35/90 size |
| 5 | 15 size |
| 5 | 20/40 size |
| 8 | 9/M3 size |
| 003 | Preload class |
| 1 | C1 Moderate preload |
| 9 | C0 Without preload (clearance) |
| 004 | Accuracy class |
|---|---|
| 2 | P Precision Accuracy Level |
| 3 | H Hight Accuracy Level |
| 4 | N Normal Accuracy Level |
| 005 | Seals |
| 00 | N seals |
| 01 | Standard seals |
| 10 | SS Standard seal without ball chain |
| 20 | SS Standard seal without ball chain |
| 40 | N seals and longitudinal seals, no basic lubrication |
| 41 | Standard seals, no basic lubrication |
| 60 | SS Standard seal without ball chain |
| 70 | SS Standard seal without ball chain |
Typcode zur Katalognummer BNS,
R0455- - - -
| 001 | Series |
|---|---|
| R0455 | BNS wide, miniature ball guide rail without / with cover strip R0455 |
| 002 | Size |
| 8 | 9/M3 size |
| 2 | 12 size |
| 5 | 15 size |
| 003 | Cover strip |
| 0 | without cover strip |
| 6 | with cover strip |
| 004 | Accuracy class |
|---|---|
| 4 | N Normal Accuracy Level |
| 3 | H Hight Accuracy Level |
| 2 | P Precision Accuracy Level |
| 005 | Sections |
| 31 | One-piece |
| 3. | Composite |
Typcode zur Katalognummer BNS,
R1675- - -
,
R1673- -3-
,
R1677- - -
,
R1676- - -
| 001 | Series |
|---|---|
| R1673 | BNS with plastic caps R1673 |
| R1675 | BNS with plastic caps R1675 |
| R1676 | BNS with caps made of steel R1676 |
| R1677 | BNS for bolting from below R1677 |
| 002 | Size |
| 20 | 25/70 size |
| 25 | 25/70 size |
| 30 | 35/90 size |
| 50 | 20/40 size |
| 003 | Accuracy class |
|---|---|
| 2 | P Precision Accuracy Level |
| 3 | H Hight Accuracy Level |
| 4 | N Normal Accuracy Level |
| 004 | Sections |
| 3. | Composite |
| 31 | One-piece |
| 31 | One-piece Uncoated end faces |
