R201029330 Bosch Rexroth

REXROTH R201029330 KUGELWAGEN

Name: R201029330 REXROTH
Brand: REXROTH
SKU: 112931-de-eur
Price: 216.61 EUR
Availability: InStock

RESIST NR KWD-025-SKS-C0-H-1

216,61 €

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

Area of application: For restricted space in longitudinal and transverse direction
Ball Runner Block body made of corrosion-resistant steel as per DIN EN 10088. Version recommended by Rexroth if corrosion protection is required. Fast delivery.
Significantly reduced frictional oscillations and low friction level, particularly under external load
Long-term lubrication is possible over several years
Patented entry zone increases the travel accuracy up to a factor of six

Ball runner block NR with corrosion-resistant steel

Baureihe (R2010)	Slimline, short, standard height R2010
Baugröße (2)	25 size
Vorspannungsklasse (9)	C0 Without preload (clearance)

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (30)	SS Standard seal without ball chain

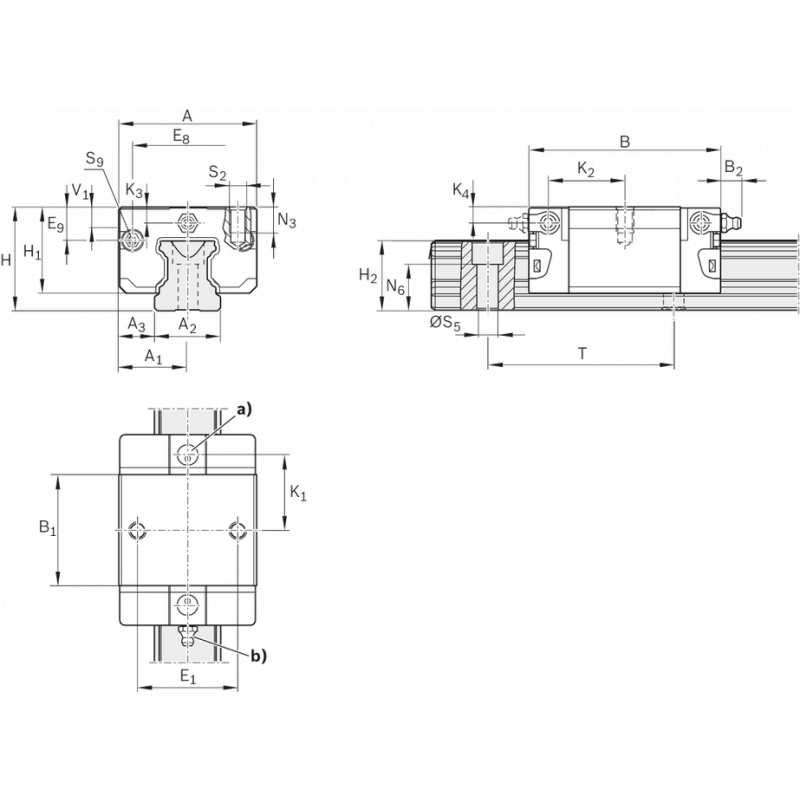

Dimensions
Technical data

^a) For O-ring
Size 15: Ø 4 · 1.0 (mm)
Size 20 - 35: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
^b) Lube nipple, size 15 - 20:
Funnel-type lube nipple DIN 3405-A M3x5, B₂ = 1.6 mm
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
Lube nipple, size 25 - 35:
Hydraulic-type lube nipple DIN 71412-A M6x8, B₂ = 9.5 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on all sides.

Dimension H₂ ohne Abdeckstreifen	24,25	mm
A₁	24	mm
A₃	12,50	mm
B₁	38,60	mm
E₈	38,30	mm
H	36	mm
Dimension H₂ mit Abdeckstreifen	24,45	mm
K₂	26,50	mm
K₄	5,50	mm
N₆	15.2 mm ±0.5
ØS₅	7	mm
Drehmoment	60	mm

Industriekomponente	48	mm
A₂	23	mm
B	67 mm +0.5
E₁	35	mm
E₉	11,50	mm
H₁	29,90	mm
K₁	25,35	mm
K₃	5,50	mm
N₃	9	mm
S₂	M6
S₉	M3x5
V₁	7,50	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	500	m/s²
Maschinenschutz	0,35	kg
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
