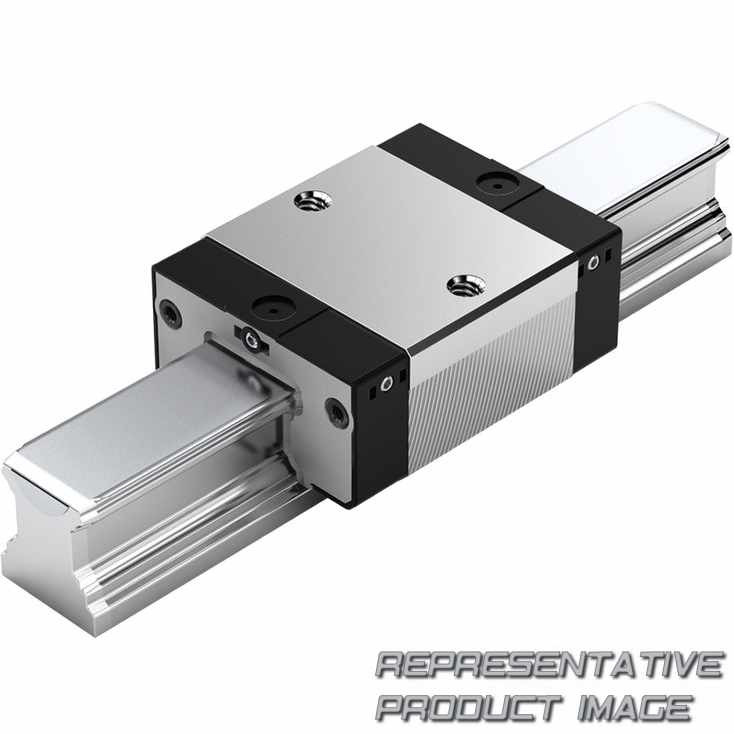

R166421411 Bosch Rexroth

REXROTH R166421411 KUGELWAGEN KOHLENSTOFFSTAHL

Name: R166421411 REXROTH
Brand: REXROTH
SKU: 113524-de-eur
Price: 92.7 EUR
Availability: InStock

KWC-025-SKN-C1-N-2

92,70 €

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Finden Sie Ihre passende Kombination! Klicken Sie hier, um passende Führungsleisten für diesen Laufwagen zu entdecken

Technische Daten

Area of application: For restricted space in the upward, longitudinal and transverse direction
Maximum precision
Patented entry zone increases the travel accuracy up to a factor of six
Significantly reduced frictional oscillations and low friction level, particularly under external load
Long-term lubrication is possible over several years

Ball runner block CS, made of Carbon steel

Baureihe (R1664)	Slimline, short, low R1664...1
Baugröße (2)	25 size
Vorspannungsklasse (1)	C1 Moderate preload

Genauigkeitsklasse (4)	N Normal Accuracy Level
Dichtungen (11)	LS Low-friction seal without ball chain

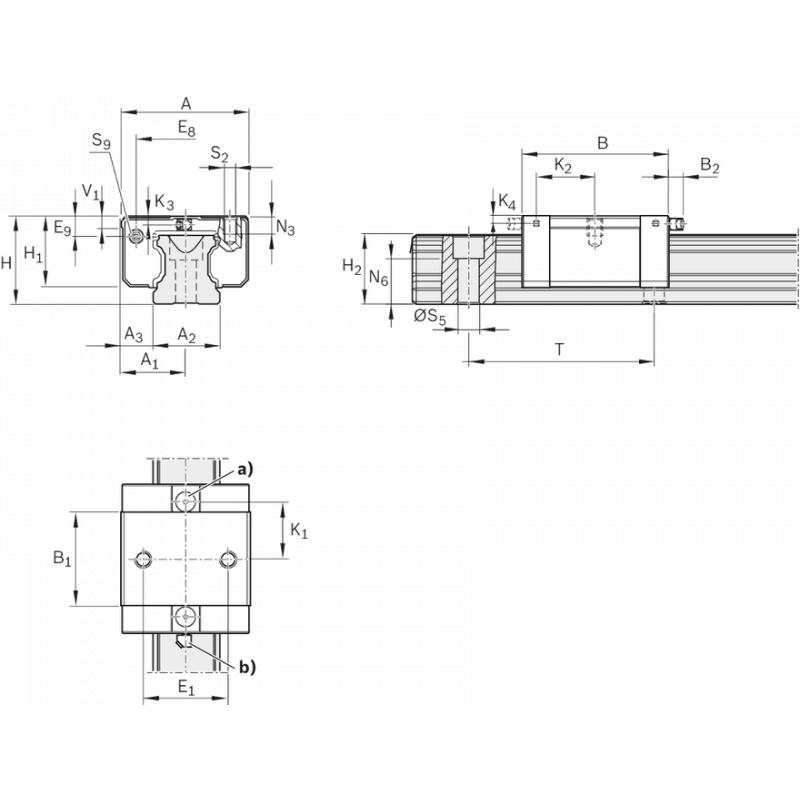

Dimensions
Technical data

^a) For O-ring
Size 20 - 25: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
^b) Lube nipple, size 20 - 25:
Funnel-type lube nipple DIN 3405-B M3x5, B₂ = 8 mm
Lube port with additional anti-twist feature.
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
The lube nipple is included in the scope of delivery (not installed).
Size 20: Connection is possible on end-face.
Size 25: Connection is possible on all sides.

Industriekomponente	48	mm
A₂	23	mm
B	62 mm +0.5
E₁	35	mm
E₉	8,50	mm
H₁	26,50	mm
Dimension H₂ ohne Abdeckstreifen	24,25	mm
K₂	25	mm
K₄	4,10	mm
N₆	15.2 mm ±0.5
ØS₅	7	mm
Drehmoment	60	mm

A₁	24	mm
A₃	12,50	mm
B₁	38,60	mm
E₈	38,30	mm
H	33	mm
Dimension H₂ mit Abdeckstreifen	24,45	mm
K₁	24,50	mm
K₃	4,10	mm
N₃	7	mm
S₂	M6
S₉	M3x5
V₁	7,50	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	250	m/s²
Maschinenschutz	0,30	kg
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
