REXROTH R162132420 KUGELWAGEN KOHLENSTOFFSTAHL

Name: R162132420 REXROTH
Brand: REXROTH
SKU: 300790-de-eur
Price: 207.48 EUR
Availability: InStock

KWD-035-SNH-C2-N-1

207,48 € (zzgl. MwSt.)

4 Stk. mit 1 bis 3 Tagen Lieferzeit nach Germany

Technische Daten

Area of application: For restricted space in transverse direction and high rigidity requirements
Higher rigidity than SNS
Significantly reduced frictional oscillations and low friction level, particularly under external load
Maximum precision
Patented entry zone increases the travel accuracy up to a factor of six

Ball runner block CS, made of Carbon steel

Genauigkeitsklasse (4)	N Normal Accuracy Level
Dichtungen (20)	SS Standard seal without ball chain

Nennweite		35
Werkstoff Profilschienführungen		Carbon steel
Genauigkeitsklasse		N – Standard

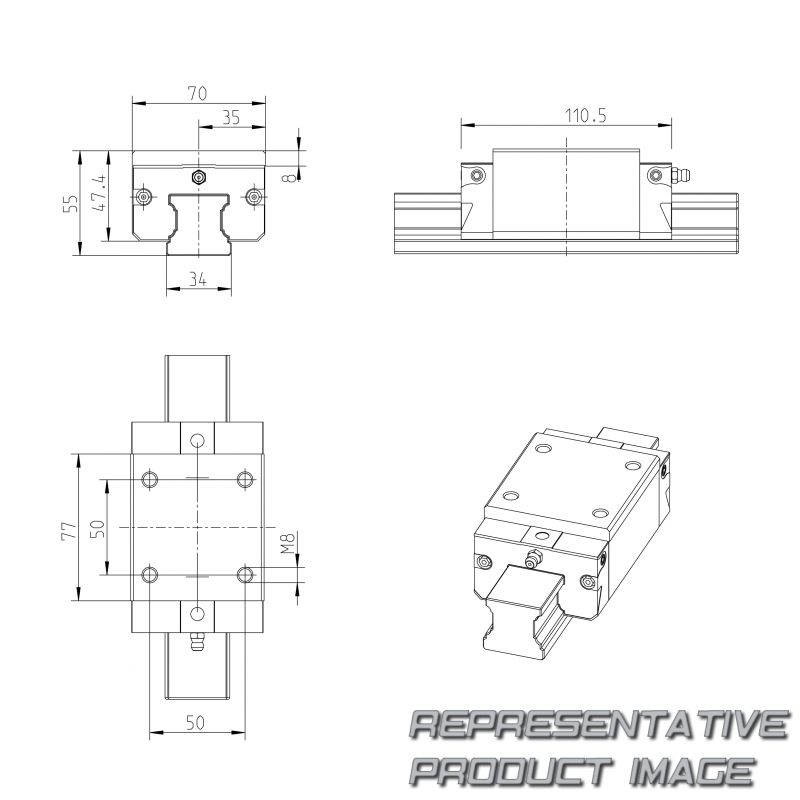

Breite Führungswagen		70 mm
Höhe Führungswagen		47.4 mm
Schmierung		With initial lubrication and preservation
Fußnote dynamische Tragfähigkeit C		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Dynamische Torsionsmoment-Belastbarkeit Mt Fußnote		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Dynamische Längsmoment-Belastbarkeit ML Fußnote		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Statisches Torsionstragmoment Mt0		1740 Nm
Fußnote amax		If F_comb◡ 2.8 • F_pr : a_max = 50 m/s²
Statische Tragzahl C0		80900 N
Fußnote zulässige Umgebungstemperatur (min ... max)		100 °C admissible for short time. For operation at negative temperatures, please consult us.
Reibungskoeffizient der Fußnote μ		Without friction of seal

Bauform		SNH - slimline, normal, high
Vorspannungsklasse		C2 - medium preload
Selbstausrichtend zur Kompensation von Fehlausrichtungen		Without self-alignment
Länge Führungswagen		110.5 mm
Höhe des Laufblocks mit Führungsschiene		55 mm
Dynamische Tragzahl C		51800 N
Dynamisches Torsionstragmoment Mt		1110 Nm
Dynamisches Längstragmoment ML		720 Nm
Statisches Längstragmoment ML0		1130 Nm
Max. Beschleunigung amax		500 m/s²
Maximal zulässige lineare Geschwindigkeit vmax		5 m/s
Zulässige Umgebungstemperatur		-10 °C ... +80 °C
Reibungszahl μ		0,002 ... 0,003
