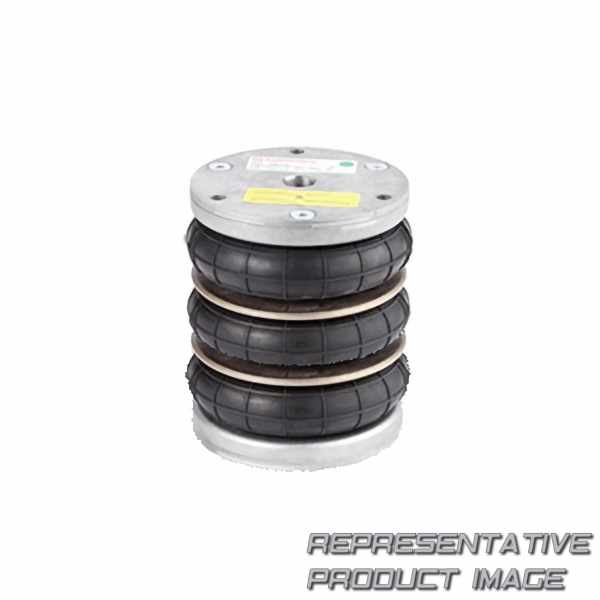

| body style | bellows | ||
| maximum stroke metric length millimetre | 320 mm | ||
| nominal diameter | 4-1/2" | ||
| number of convolutions | 3 | ||
| operating pressure psi pressure psi min to max range | 0 ... 116 psi | ||
| operating temperature temperature celsius min to max range | -30 ... 50 °c | ||
| Anschlussgröße | g3/8 | ||
| range | pm/31000 | ||
| stroke length metric length millimetre | 100 mm | ||
| Thread Type | bspp |
| materials | aluminium | ||
| Medium | compressed air | ||
| non magnetic or magnetic | non-magnetic | ||
| operating pressure pressure bar min to max range | 0 ... 8 bar | ||
| operating temperature f temperature fahrenheit min to max range | -22 ... 122 °f | ||
| operation | single acting | ||
| product style | compact | ||
| stroke length inch | 4" | ||
| theoretical force force newton | 5750 n |
