| Kolbenstangengewinde | m8 | ||
| Standards | iso 6432 | ||
| Hub | 500 mm | ||
| Dämpfung | pneumatic adjustable cushioning | ||
| environmental requirements | industry standard, atex optional | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 166 n | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | 1 bar | ||
| Anschlüsse | g 1/8 | ||
| Gewicht | 0.448 kg | ||
| weight +10 mm stroke | 0.009 kg | ||
| Medium | compressed air |
| Dämpfungslänge | 13 mm | ||
| piston Ø | 20 mm | ||

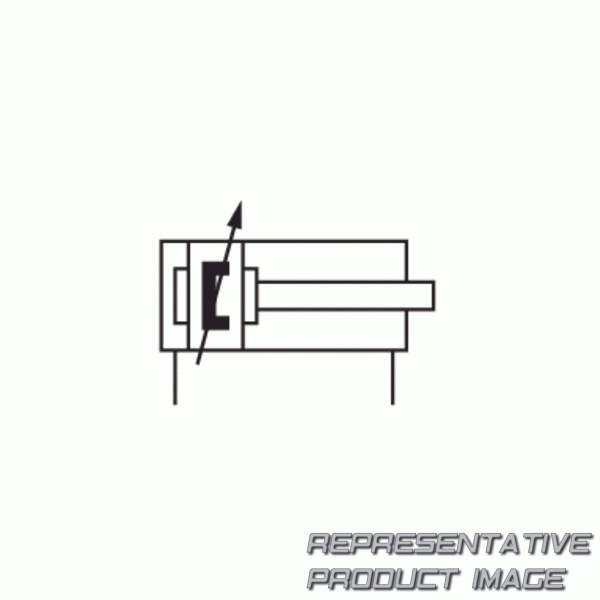

| Funktionsprinzip | double-acting | ||
| magnetic piston | piston with magnet | ||
| piston rod | single | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 198 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| cushioning energy | 1.5 j | ||
| weight 0 mm stroke | 0.16 kg | ||
| stroke max. | 1100 mm |
