| Werkstoff Gehäuse | Die-cast aluminium | ||
| Pneumatischer Anschluss 4 | G1/2 | ||
| Produktgewicht | 163 g | ||
| Mediumstemperatur | -10 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Standard nominal flow rate, outlet downwards | 9.850 l/min | ||
| Standard nominal flow rate in main flow direction 1->2 | 14.600 l/min | ||
| Symbol | 00991510 | ||
| Einbaulage | optional |
| Werkstoff-Hinweis | RoHS-compliant | ||
| Pneumatischer Anschluss 3 | G1/2 | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||
| Lagertemperatur | -10 °C ... 60 °C | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Zulassung | c UL us - Recognized (OL) | ||
| Standard nominal flow rate, outlet upwards | 10.400 l/min | ||
| Betriebsdruck | 0 bar ... 20 bar | ||

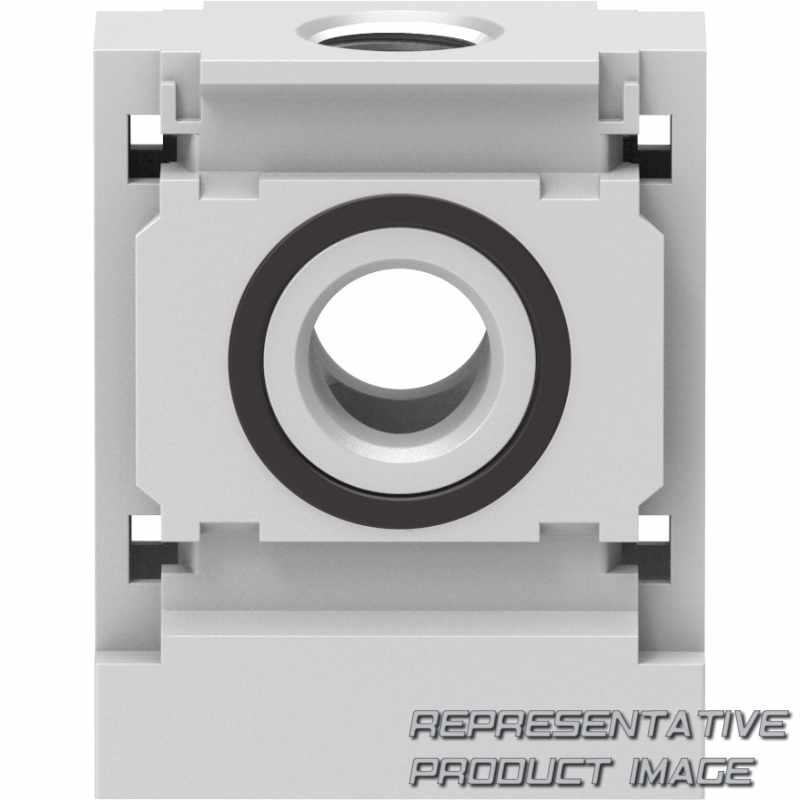

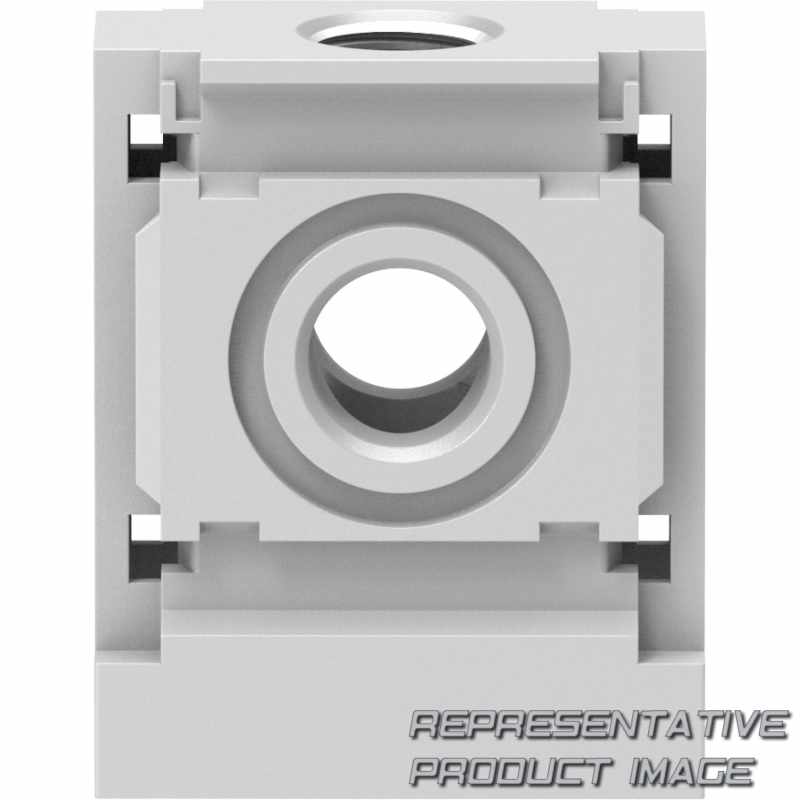

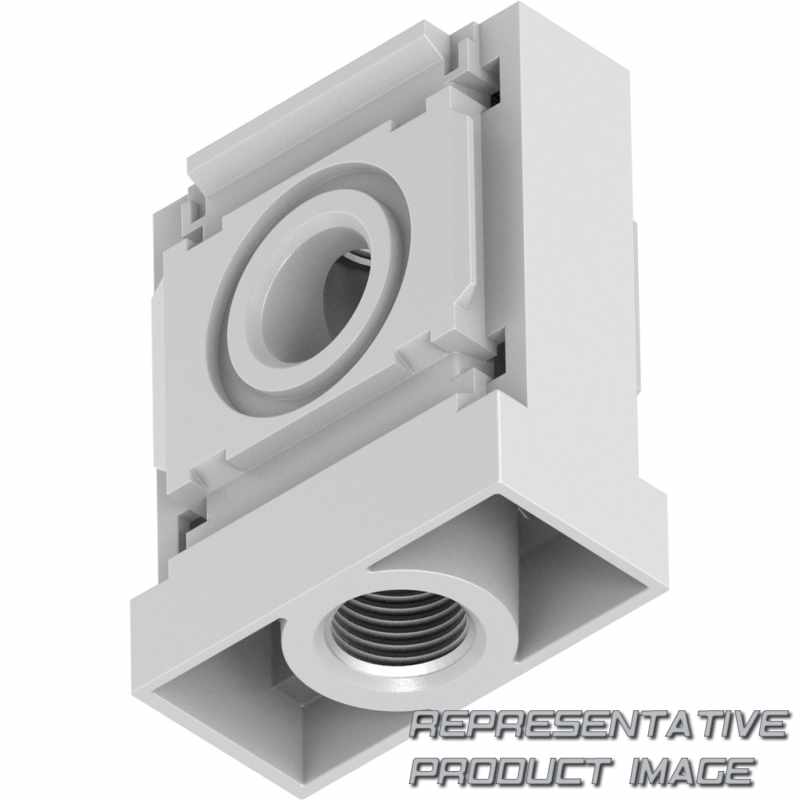

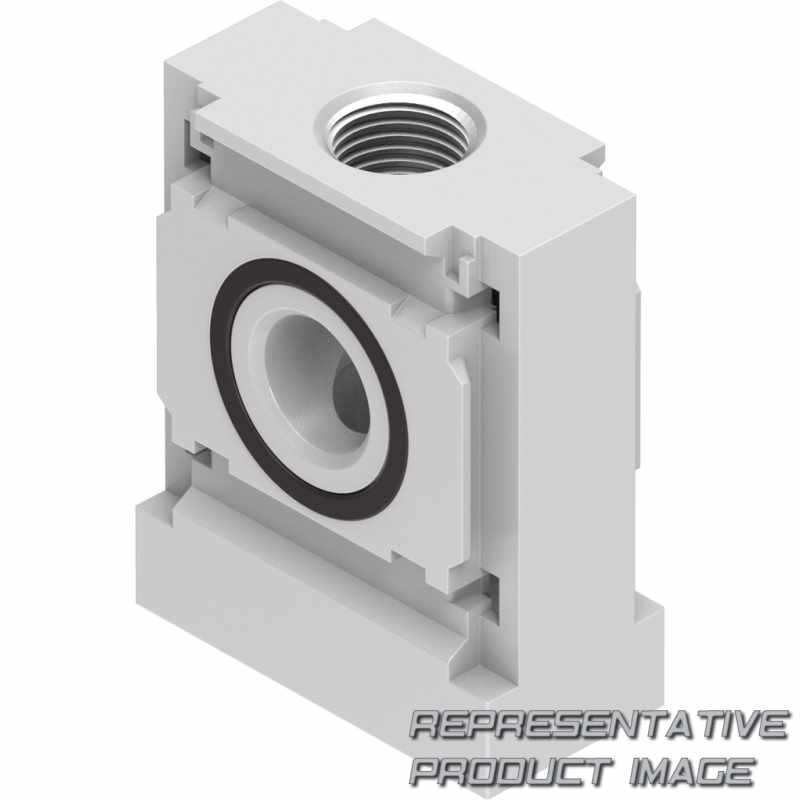

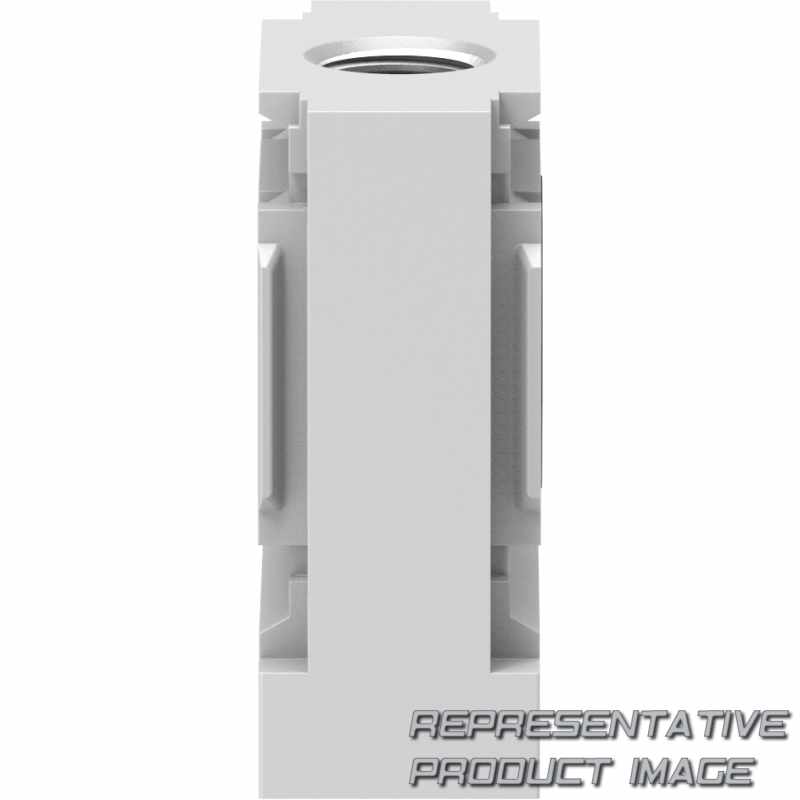

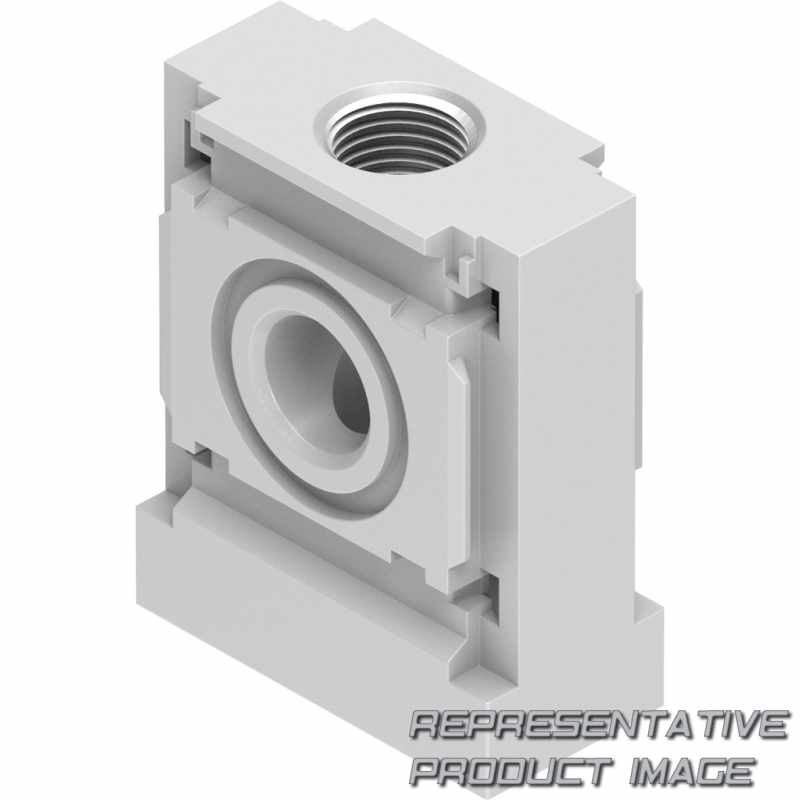

| Konstruktiver Aufbau | Branching module |
