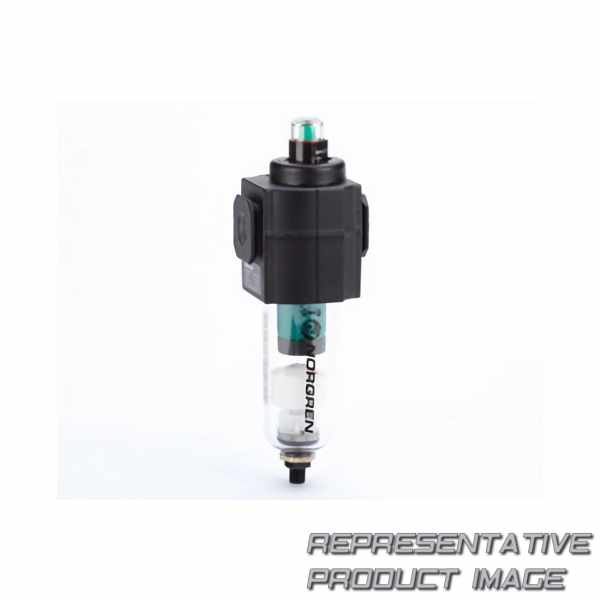

NORGREN F73C-3GD-AT0 excelon oil removal filter

Name: F73C-3GD-AT0 NORGREN
Brand: NORGREN
SKU: 781576-de-eur
Price: 689.98 EUR
Availability: SoldOut

689,98 € ~~788,55 €~~ -12%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

max. Druck	10 bar
Breite	68mm

Gewicht	540g

body		aluminium
bowl type		polymer
Ablauftyp		automatic drain
eu country of origin		mexico
flow flow dm3sec		10 dm3/sec
flow imperial flow scfm		21.2 scfm
maximum inlet pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
length length millimetre		207 mm
width length millimetre		68 mm
particle removal particlesize micron		0.01 μm
product style		modular
replaced flag		yes
Baureihe		excelon

bowl		polycarbonate
data performance shelf life		10 years
elastomers		neoprene
filter element m particlesize micron		0.01 μm
flow flow dm3secbar		10 dm3/(s.bar) dm3/sec
maximum inlet pressure imperial pressure psi		145 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 122 °f
height length millimetre		62 mm
weight weight kilogram		0.54 kg
partially replaced part		f84c-3gd-ap0
Anschlussgröße		g3/8
range		f73c
retrieve price		true
service life indicator		with
