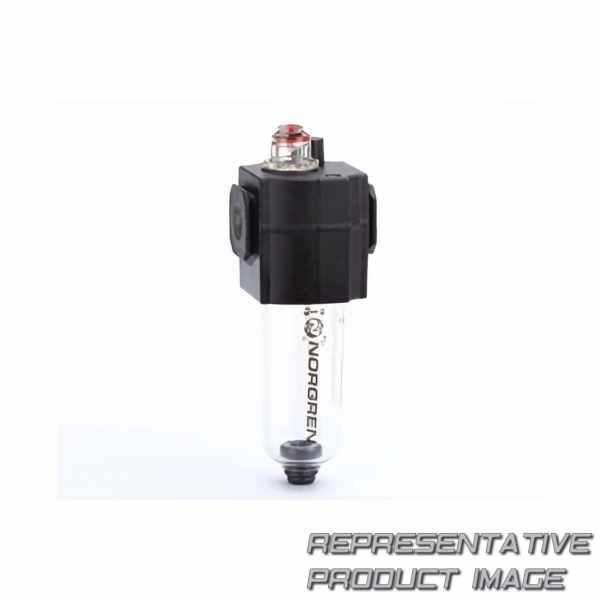

NORGREN L73M-3GP-ETN excelon micro fog lubricator

Name: L73M-3GP-ETN NORGREN
Brand: NORGREN
SKU: 785042-de-eur
Price: 274.01 EUR
Availability: InStock

274,01 € ~~339,77 €~~ -19%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar
Breite	68mm

Gewicht	500g

body		aluminium
bowl capacity volume litre		0.1 l/s
data performance shelf life		10 years
elastomers		neoprene
flow flow dm3sec		64 dm3/sec
fog type		micro fog
maximum inlet pressure pressure bar		10 bar
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 122 °f
height length millimetre		62 mm
weight weight kilogram		0.5 kg
partially replaced part		l84m-3gp-epn
product style		modular
range		l73m
retrieve price		true
start point flow dm3sec		0.71 dm3/sec

bowl		polycarbonate
bowl type		polymer
Ablauftyp		closed bowl
eu country of origin		mexico
flow flow dm3secbar		64 dm3/(s.bar) dm3/sec
maximum inlet pressure imperial pressure psi		145 psig
maximum operating pressure imperial pressure psig		145 psig psig
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
length length millimetre		183 mm
width length millimetre		68 mm
Anschlussgröße		g3/8
quick fill nipple		without
replaced flag		yes
Baureihe		excelon
