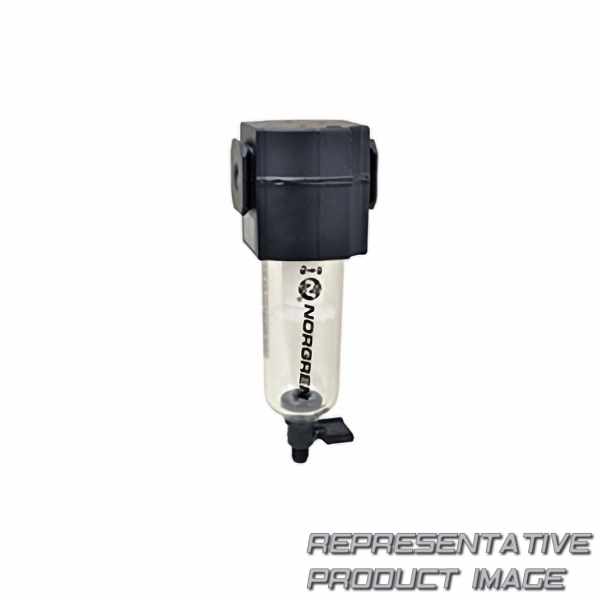

NORGREN F73G-3GN-QT3 excelon general purpose filter

Name: F73G-3GN-QT3 NORGREN
Brand: NORGREN
SKU: 789771-de-eur
Price: 218.77 EUR
Availability: InStock

218,77 € ~~271,28 €~~ -19%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar
Breite	68mm

Gewicht	500g

body		aluminium
bowl type		polymer
Ablauftyp		manual
eu country of origin		mexico
filter element m particlesize micron		40 μm
flow flow dm3secbar		35 dm3/(s.bar) dm3/sec
maximum inlet pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
length length millimetre		181 mm
width length millimetre		68 mm
Anschlussgröße		g3/8
range		f73g
retrieve price		true
service life indicator		without

bowl		polycarbonate
data performance shelf life		10 years
elastomers		neoprene
filter element		sintered polypropylene
flow flow dm3sec		35 dm3/sec
maximum inlet pressure imperial pressure psi		145 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 122 °f
height length millimetre		62 mm
weight weight kilogram		0.5 kg
partially replaced part		f84g-3gn-qp3
product style		modular
replaced flag		yes
Baureihe		excelon
