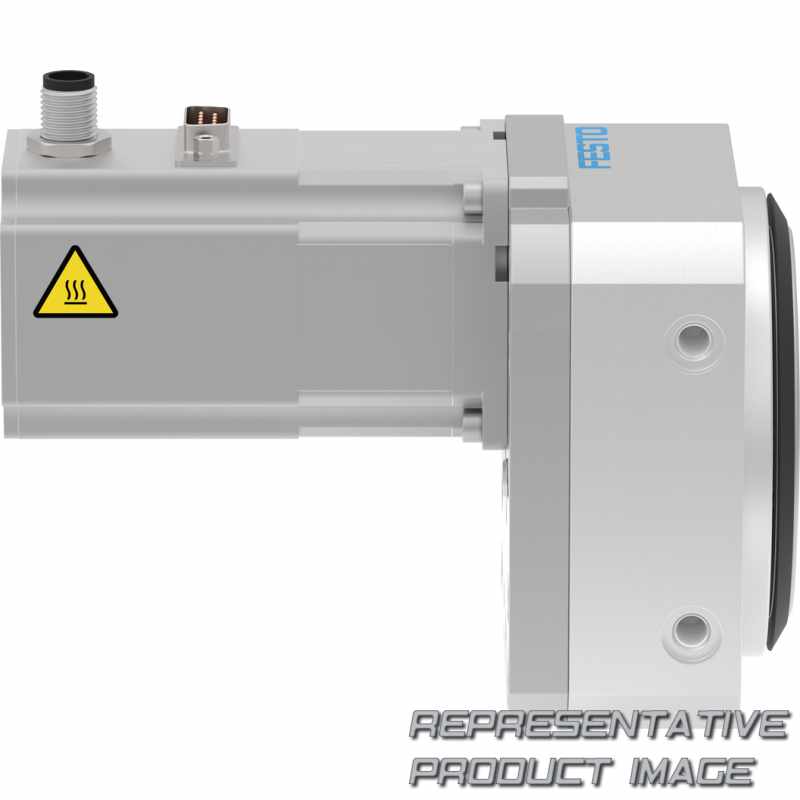

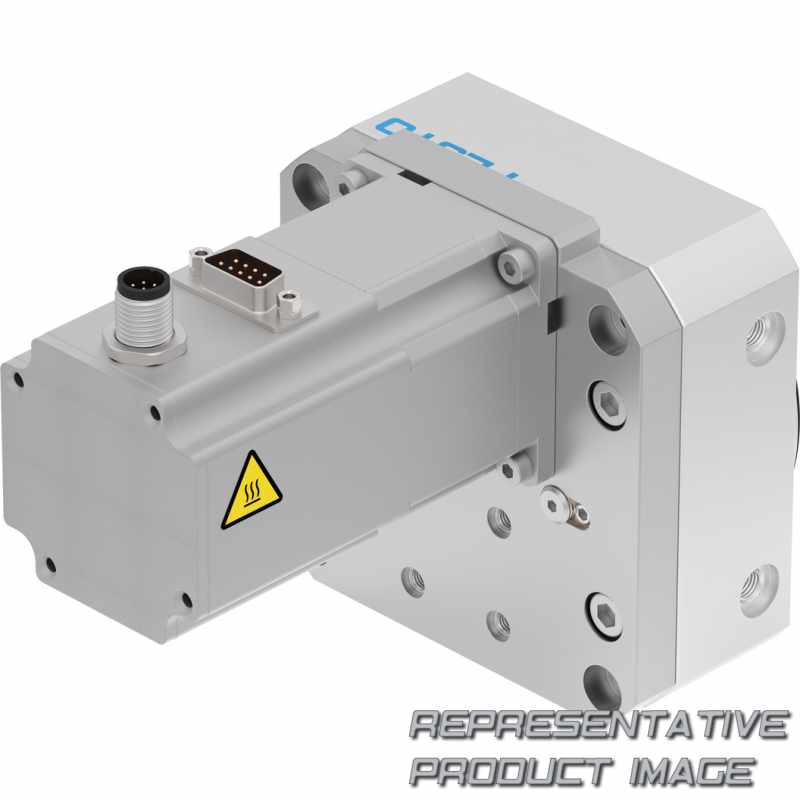

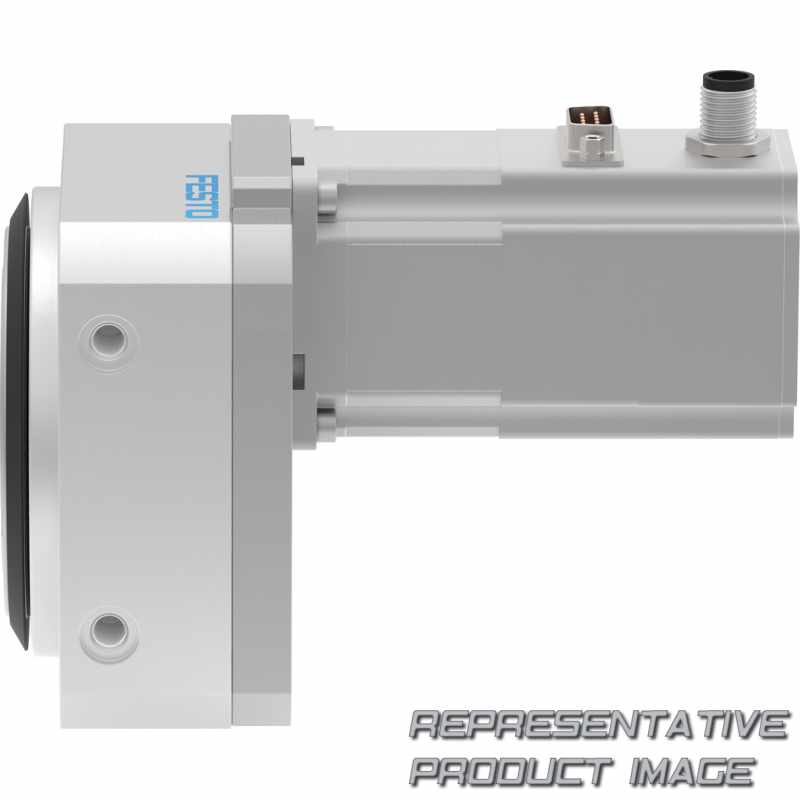

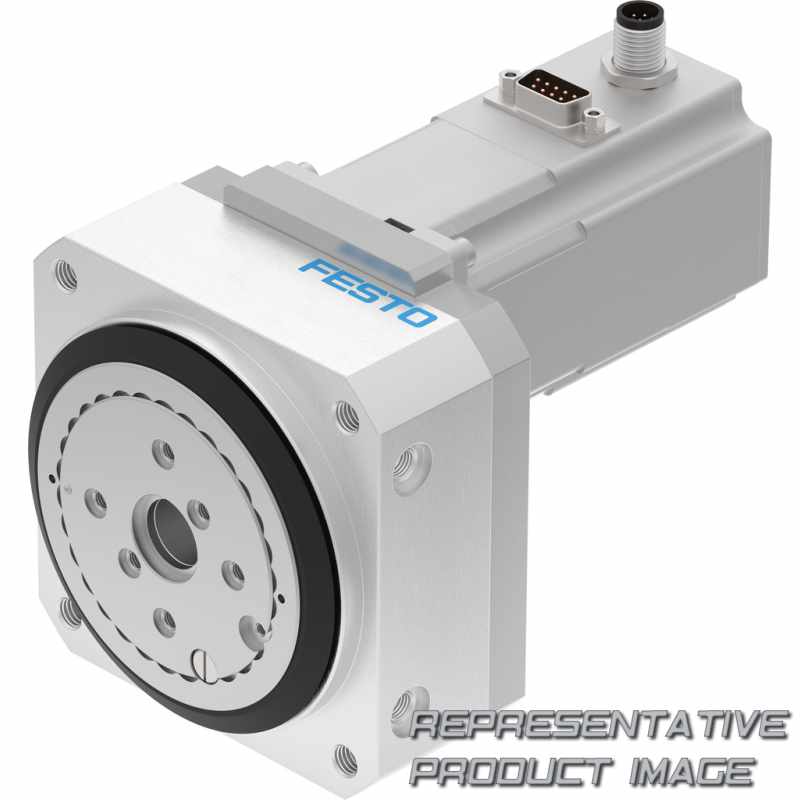

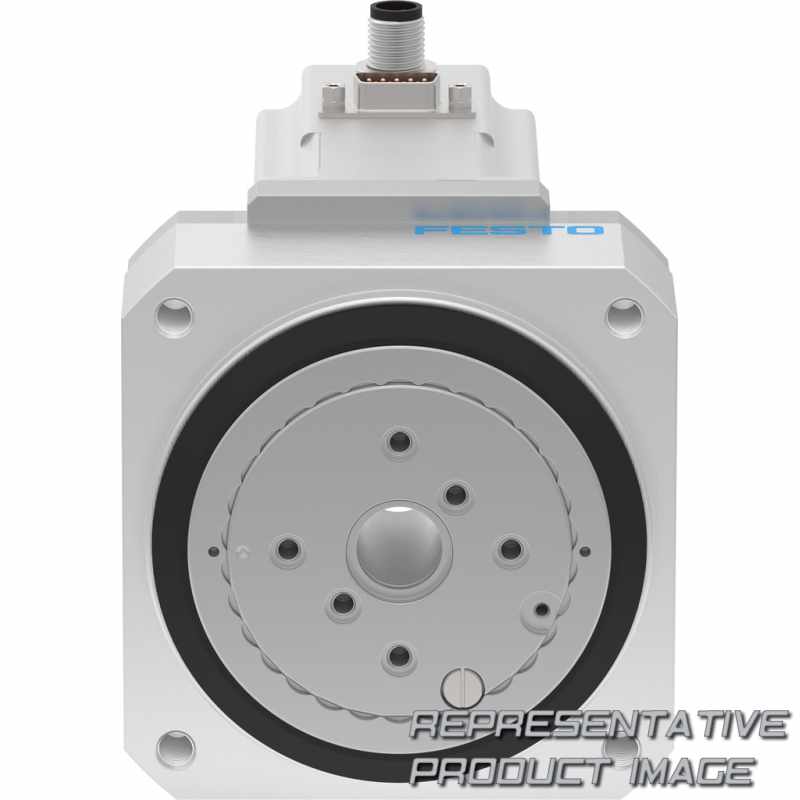

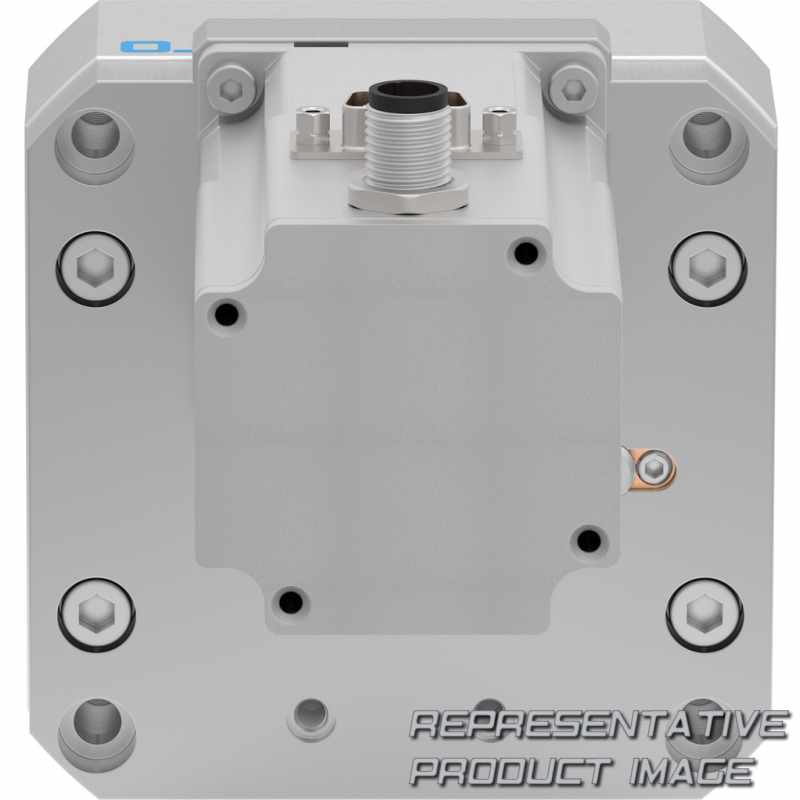

| Werkstoff Gehäuse | Wrought aluminium alloy Anodised | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Relative Luftfeuchtigkeit | 0 - 85% Non-condensing | ||
| Schutzart | IP40 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Electrical connector system | Plug | ||
| Rotor position encoder interface | RS422 TTL AB channels + zero index | ||
| Type of motor | Stepper motor | ||
| Nominal motor current | 4,2 A | ||
| Einschaltdauer | 100% | ||
| Stepping angle tolerance | ±5% | ||
| Produktgewicht | 2.200 g | ||
| Max. radial force | 550 N | ||
| Wiederholgenauigkeit | ±0.1 ° | ||
| Drehzahl max. | 100 rpm | ||
| Nenn-Anziehdrehmoment | 5 Nm | ||
| Rotation angle | Infinite | ||
| Einbaulage | optional | ||
| Baugröße | 32 |
| Material flange | Wrought aluminium alloy Anodised | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Interface code, basis | E8-55 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Rotor position sensor, encoder measuring principle | Optical | ||
| Rotor position sensor | Incremental encoder | ||
| Insulation protection class | B | ||
| Nennbetriebsspannung DC | 24 V | ||
| Mass moment of inertia JO | 0,39 kgcm² | ||
| Stepper angle for complete step | 1,8 deg | ||
| Zulässiges Massenträgheitsmoment | 0,016 kgm² | ||
| Max. axial force | 450 N | ||
| Verdrehspiel | 0,2 deg | ||
| Nominal rotary speed | 50 rpm | ||
| Getriebeübersetzung | 7:1 | ||
| Befestigungsart | Via female thread | ||
| Konstruktiver Aufbau | Electromechanical rotary drive With integrated gear unit |
