8148281 Festo

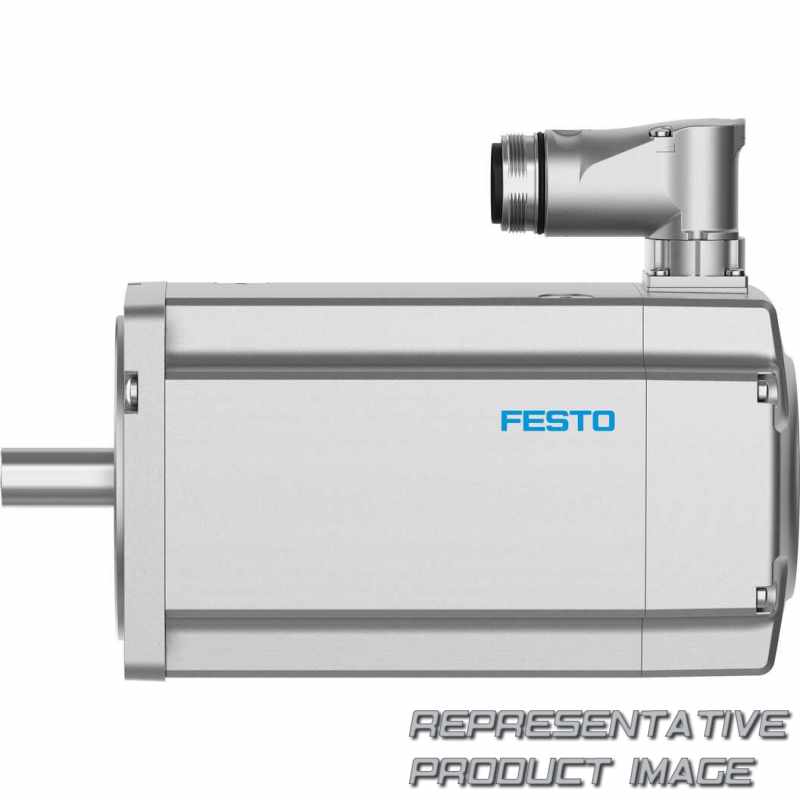

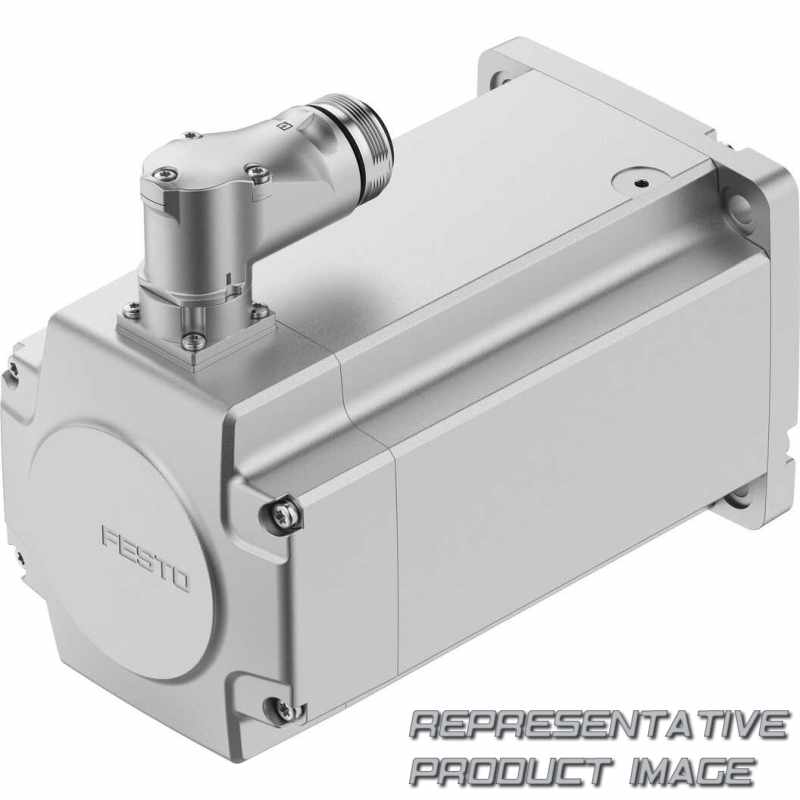

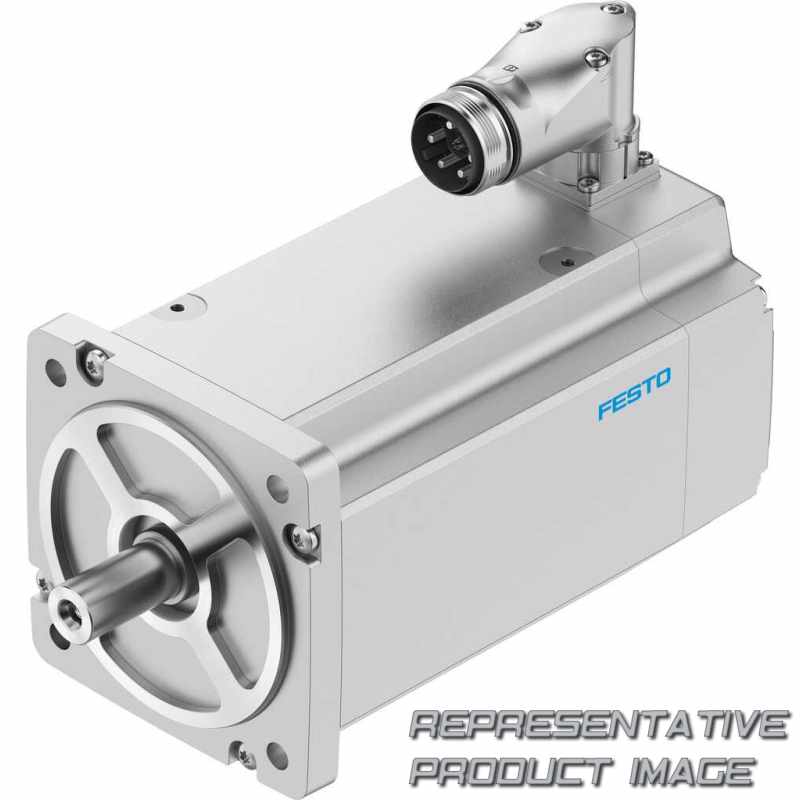

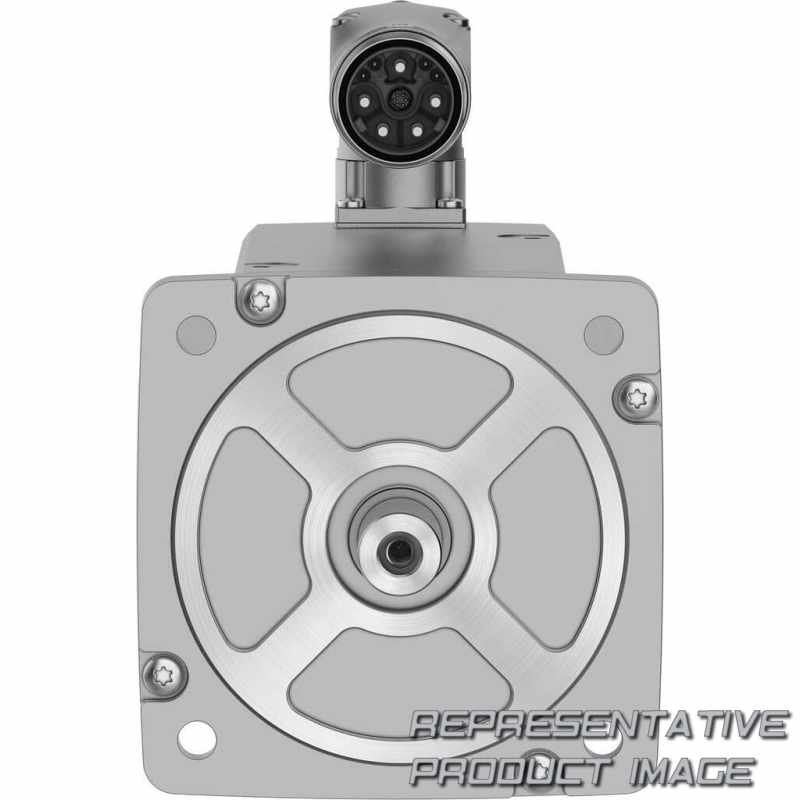

FESTO 8148281 Servomotor

Name: 8148281 FESTO
Brand: FESTO
SKU: 714711-de-eur
Price: 3125.82 EUR
Availability: InStock

EMMT-AS-150-M-HV-R3MYB

3.125,82 € ~~5.609,13 €~~ -44%

verfügbar mit 3 bis 4 Wochen Lieferzeit nach United States

Technische Daten

Baureihe (EMMT)	Servo motor
Motor type (AS)	AC synchronous
Flange size, motors [mm] (150)	150
Length (M)	Medium
Output shaft	Smooth shaft

Radial shaft seal	None
Winding (HV)	High voltage, speed optimised
Elektrischer Anschluss (R3)	Angled plug M40, rotatable
Measuring unit (MY)	Absolute multi-turn safety encoder, EnDat®
Brake (B)	With brake

Technical data

Energy efficiency		ENEFF (CN) / Class 1
Mean time to failure (MTTF), subcomponent		190 years, rotor position sensor
PFHd, subcomponent		15 x 10E-9, encoder
Safety Integrity Level (SIL), subcomponent		SIL 2, Encoder
Mass moment of inertia of brake		8,2 kgcm²
DC brake response delay		6 ms
Brake separation time		230 ms
Brake current consumption		1,08 A
Brake holding torque		45 Nm
Rotor position transducer resolution		19 bit
rotor position sensor, DC operating voltage range		3,6 V ... 14 V
Rotor position sensor, encoder measuring principle		Inductive
rotor position sensor, absolute detectable revolutions		4,10
Rotor position sensor		Absolute multi-turn safety encoder
Permissible axial shaft load		217 N
Total mass moment of inertia of output		46,9 kgcm²
Thermal resistance		0,46 K/W
Electric time constant		15,6 ms
Winding longitudinal inductivity Ld (phase)		1,65 mH
Phase-phase winding resistance		0,211 Ohm
Standstill torque constant		1,54 Nm/A
Peak current		50 A
Continuous stall current		24 A
Max. mechanical speed		10.000 rpm
Nominal rotary speed		3.500 rpm
Nenn-Anziehdrehmoment		13,5 Nm
Number of pole pairs		5
Nennbetriebsspannung DC		680 V
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for machines To UK RoHS instructions
Zulassung		RCM trademark
Schwingfestigkeit		As per EN 60068-2-6
Korrosionsbeständigkeitsklasse KBK		0 - No corrosion stress
Verschmutzungsgrad		2
Elektrischer Anschluss 1, Anzahl Pole/Adern		15
Elektrischer Anschluss 1, Anschlussart		Hybrid plug
Storage lifetime under nominal conditions		20.000 h
Balance quality		G 2.5
Hinweis zur Schutzart		IP21 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing including connection components
Einbaulage		optional
Temperature monitoring		Digital motor temperature transmission via EnDat® 2.2
Max. winding temperature		155 °C
Entspricht Norm		IEC 60034
Lagertemperatur		-20 °C ... 70 °C
Max. installation height		4.000 m
Umgebungstemperatur		-15 °C ... 40 °C

Mean time to dangerous failure (MTTFd), subcomponent		380 years, rotor position sensor
Duration of use Tm, subcomponent		20 years, rotor position sensor
Performance Level, subcomponent		Cat. 3, PLd, encoder
Switching cycles holding brake		5 million idle actuations (without friction work!)
Max. brake no-load speed		10.000 rpm
Brake closing time		45 ms
Power consumption, brake		26 W
Operating voltage DC for brake		24 V
rotor position sensor, system accuracy of angle measurement		-65 arcsec ... 65 arcsec
rotor position sensor, position values per revolution		524.288
rotor position sensor, DC operating voltage		5 V
Rotor position encoder interface		EnDat® 22
rotor position sensor, manufacturer designation		EQI 1331
Permissible radial shaft load		1.085 N
Produktgewicht		22.200 g
Measuring flange		450 x 450 x 30 mm, steel
Thermal time constant		45 min
Winding cross inductivity Lq (phase)		1,65 mH
Phase-phase winding inductance		3,3 mH
Voltage constant, phase-to-phase		92,9 mVmin
Motor constant		1,32 Nm/A
Nominal motor current		10,2 A
Nominal power rating of motor		4.948 W
Drehzahl max.		5.051 rpm
Peak torque		60 Nm
Standstill torque		33 Nm
Type of winding switch		Star inside
Zertifikat ausstellende Stelle		TÜV 968/FSP 2317.00/21
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
Schockfestigkeit		As per EN 60068-2-29 15 g/11 ms to EN 60068-2-27
LABS-Konformität		VDMA24364 zone III
Werkstoff-Hinweis		RoHS-compliant
Elektrischer Anschluss 1, Anschlussbild		00997380
Elektrischer Anschluss 1, Anschlusstechnik		M40x1
Interface code, motor out		150A
Detent torque		<1.0% of the peak torque
Concentricity, coaxiality, axial runout to DIN SPEC 42955		N
Schutzart		IP21
Motor type to EN 60034-7		IM B5 IM V1 IM V3
Rating class as per EN 60034-1		S1
Temperature class as per EN 60034-1		F
Relative Luftfeuchtigkeit		0 - 90%
Note on max. installation height		As of 1,000 m: only with derating of -1.0% per 100 m
Note on ambient temperature		Up to 80°C with derating of -1.5% per degree Celsius
