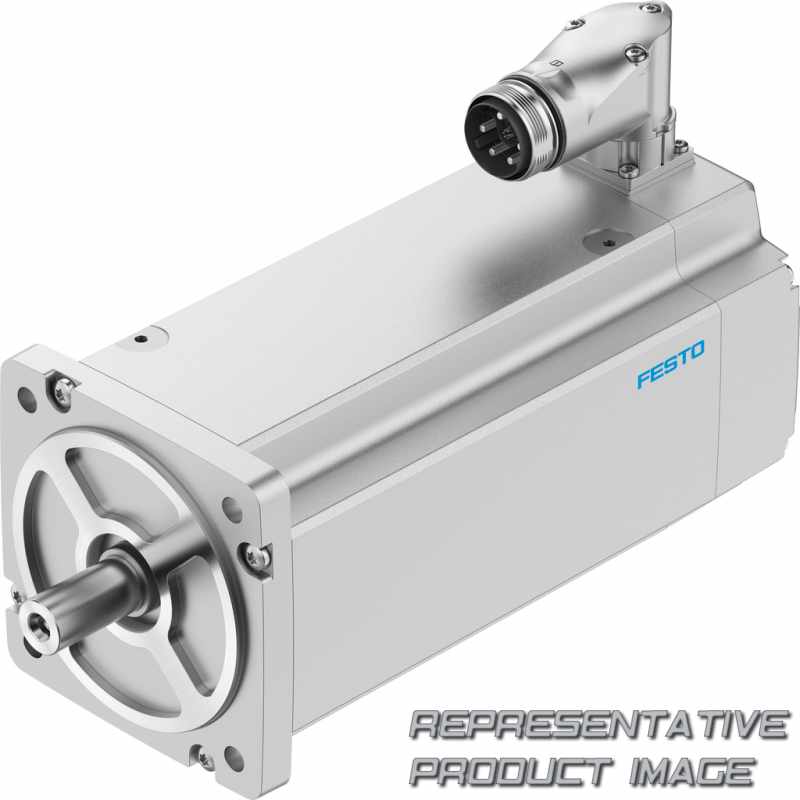

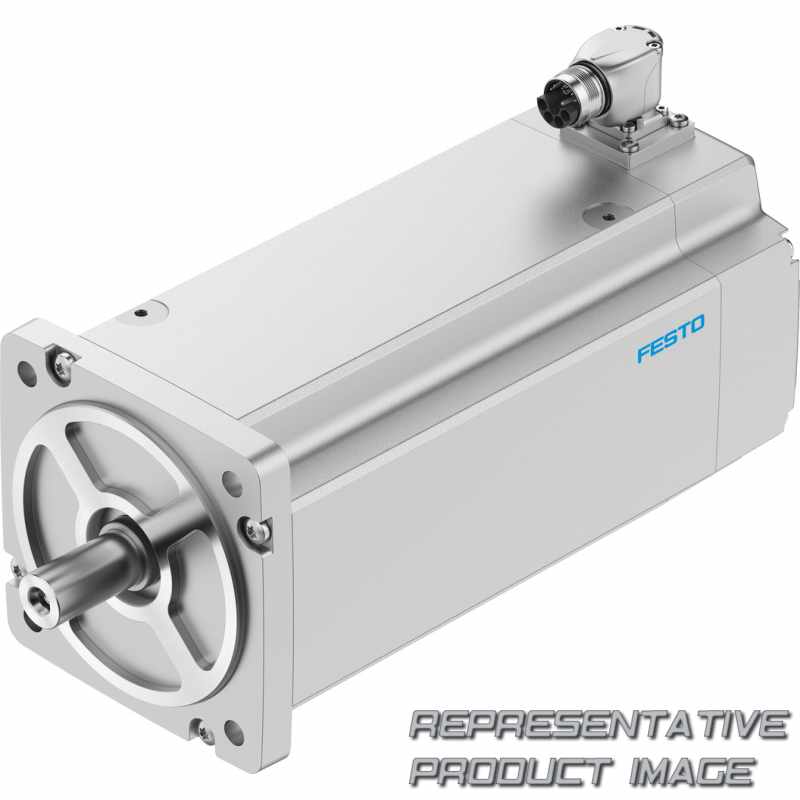

FESTO EMMT
212 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO EMMT – Servo motor. Finden Sie das passende Produkt durch Filtern mit Flange size, motors [mm], Length, Output shaft, Radial shaft seal, Winding, Elektrischer Anschluss, Measuring unit und Brake.
EMMT Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| EMMT | EMMT-AS- - - - - | Servo motor |
Typcode zur Katalognummer EMMT,
EMMT-AS- - - - -
| 001 | Series |
|---|---|
| EMMT | Servo motor |
| 002 | Motor type |
| AS | AC synchronous |
| 003 | Flange size, motors [mm] |
| 60 | 60 |
| 80 | 80 |
| 100 | 100 |
| 150 | 150 |
| 190 | 190 |
| 004 | Length |
| H | Very long |
| L | Long |
| M | Medium |
| S | Short |
| 005 | Output shaft |
| Smooth shaft | |
| K | Shaft to DIN 6885 |
| 006 | Radial shaft seal |
| None | |
| R | With standard shaft sealing ring |
| 007 | Winding |
|---|---|
| LS | Low voltage, standard |
| HS | High voltage, standard |
| HV | High voltage, speed optimised |
| HT | High voltage, torque optimised |
| 008 | Electrical connection |
| R | Angled plug, rotatable |
| R2 | Angled plug M23, rotatable |
| R3 | Angled plug M40, rotatable |
| 009 | Measuring unit |
| S | Absolute encoder, single turn |
| M | Absolute encoder, multi-turn |
| MY | Absolute multi-turn safety encoder, EnDat® |
| 010 | Brake |
| None | |
| B | With brake |
