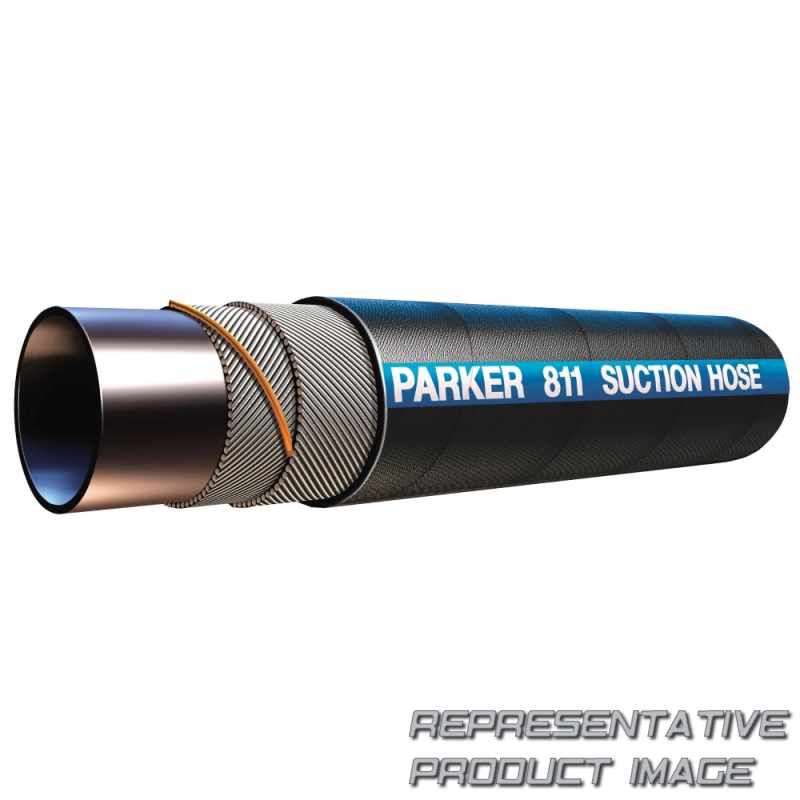

PARKER 811-12

Name: 811-12 PARKER
Brand: PARKER
SKU: 749536-de-eur
Price: 124.6 EUR
Availability: InStock

124,60 € /m ~~147,81 €~~ /m -15%

1.000 mm mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	300 psi, 2,1 mpa

Gewicht	630g

hose i.d. (size)		-12
media		hydraulic fluids, lubricants
hose inside diameter		3/4 inch, 19,0 mm
hose outside diameter		1.18 inch, 30,0 mm
hose inner tube material		synthetic rubber
cover material		synthetic rubber
minimum bend radius		64 mm, 2-1/2 inch
Maximale Betriebstemperatur		212 °f, 100 °c
hose cover type		standard
Anwendung		petroleum base hydraulic fluids and lubricating oils

Gewicht		0,63 kg/m, 0.42 lb/ft
vacuum pressure rating		84 kpa, 25 inch-hg
nominal hose inside diameter		19
maximum operating pressure		300 psi, 2,1 mpa
hose reinforcement material		multiple layers of fiber spiral and one helical wire
cover color		black
Minimale Betriebstemperatur		-40 °f, -40 °c
specifications met		sae 100r4, j1942 / uscg hf
compatible fitting		81 series, 88 series, 43 series
