| hose cover material | synthetic rubber | ||
| Minimale Betriebstemperatur | -40 °c, -40 °f | ||
| Brand | parker | ||
| industry | off-road machinery | ||
| technology | fluid & gas handling | ||

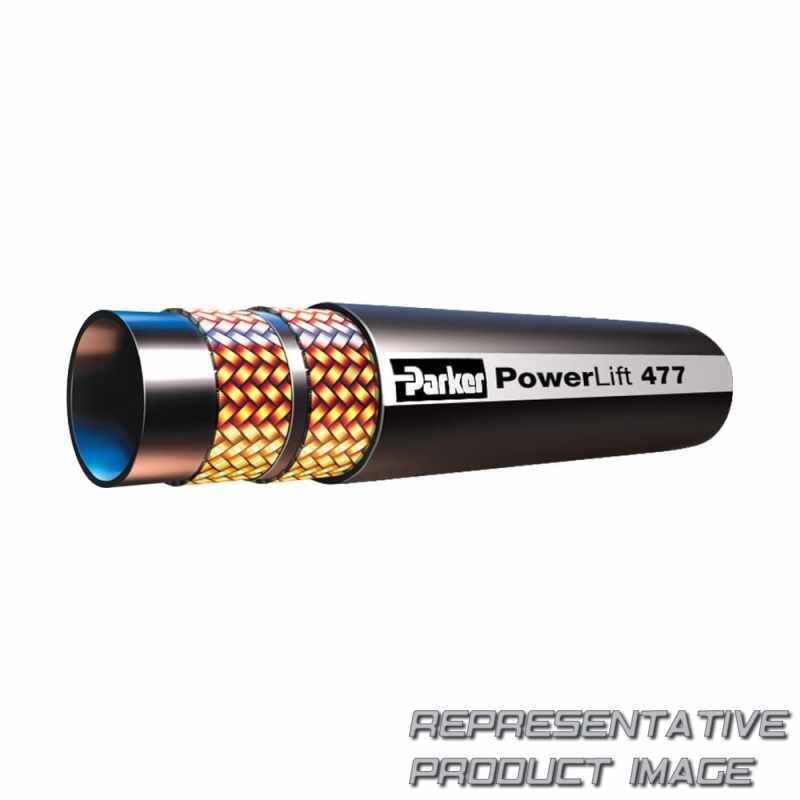

| product style | elite no-skive power lift | ||
| hose inside diameter | 15.9 mm, 5/8 inch | ||
| minimum bend radius | 160 mm, 6.299 inch | ||
| cover color | black | ||
| Maximale Betriebstemperatur | 100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158) | ||
| materials of construction | rubber | ||
| hose inner tube material | nitrile nbr | ||
| Gewicht | 0.44 lb/ft, 0.65 kg/m |
| hose i.d. (size) | -10 | ||
| media | petroleum, water-glycol fluids, lubricating oils, air & water, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, industrial air, lubricants, water | ||
| division | polymer hose division europe | ||
| Anwendung | trucks, cranes & lifting equipment | ||
| Produktfamilie | hydraulic hose | ||
| maximum operating pressure | 35 mpa, 5000 psi, 350 bar | ||
| hose outside diameter | 23.4 mm, 0.921 inch | ||
| design factor | 4:1 | ||
| compatible fitting | 48 series | ||
| specifications met | parker specifications | ||
| cover material | synthetic rubber | ||
| hose reinforcement material | 2 high tensile steel wire braids |
