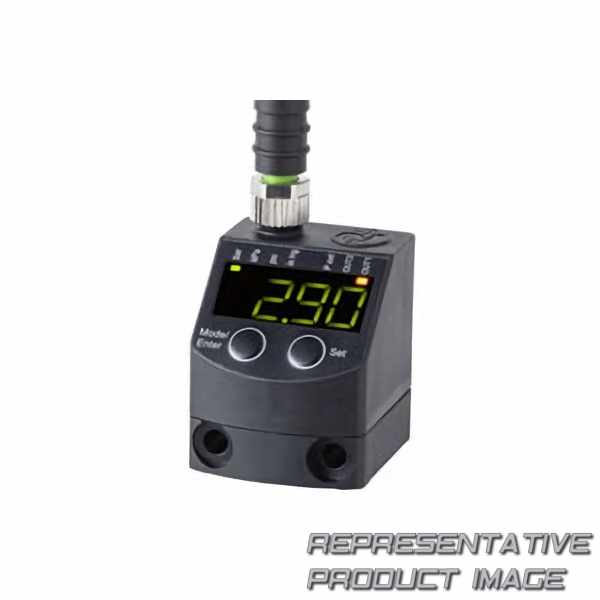

NORGREN 54D-V101G-DD0-AA Drucksensor

Name: 54D-V101G-DD0-AA NORGREN
Brand: NORGREN
SKU: 778064-de-eur
Price: 214.84 EUR
Availability: InStock

214,84 €

8 Stk. mit 2 bis 5 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	-1 ... 1 bar
Versorgungsspannung	18 … 30vdc

Gewicht	80g

data performance shelf life		3 years
eu country of origin		germany
mil spec		available on request
operating pressure psi pressure psi min to max range		-15 ... 15 psi
operating temperature temperature celsius min to max range		0 ... 70 °c
over pressure psi pressure psi		290 psig
pressure range pressure bar min to max range		-1 ... 1 bar
range		54d
switching time time millisecond		6 ms
voltage		18 … 30vdc

Elektrischer Anschluss		m8
Medium		compressed air
operating pressure pressure bar min to max range		-1 ... 1 bar
operating temperature f temperature fahrenheit min to max range		32 ... 158 °f
over pressure pressure bar		20 bar
Anschlussgröße		g1/8
pressure range psi pressure psi min to max range		-14.5 ... 14.5 psi
software		iodd_34d_54d.zip
type of pressure		relative
