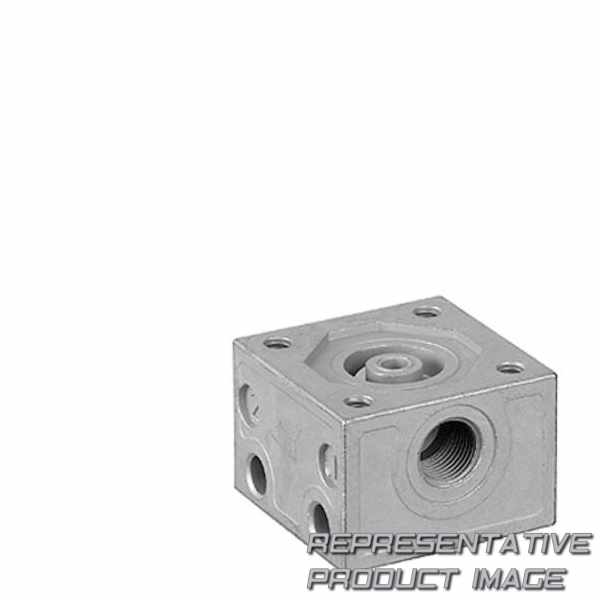

| Typ | manifold subbase | ||
| direction of pneumatic port (2,4) | on the side | ||
| working pressure min. | 1 bar | ||
| max. ambient temperature | 50 °c | ||
| Rastermaß | 34 mm | ||
| Gewicht | 0.125 kg | ||
| seal material | acrylonitrile butadiene rubber |
| compressed air connection 1 | g 1/8 | ||
| compressed air connection 2 / 4 | g 1/8 | ||
| working pressure max | 10 bar | ||
| Medium | compressed air | ||
| mounting screw | with hexagon socket | ||
| Material base plate | die-cast aluminum |
