116383 Eaton

EATON 116383

Name: 116383 EATON
Brand: EATON
SKU: 801858-de-eur
Price: 69.2 EUR
Availability: InStock

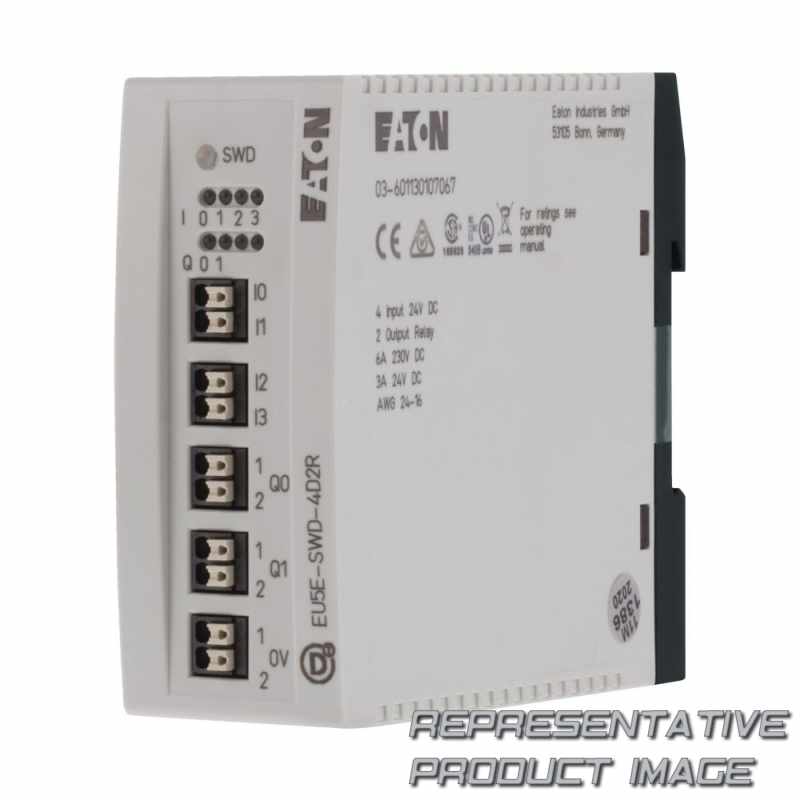

eu5e-swd-4d2r

69,20 € (zzgl. MwSt.) ~~86,50 €~~ -19%

4 Stk. mit 1 bis 3 Tagen Lieferzeit nach Germany

Technische Daten

Einbaulage	as required
Breite	35 mm

Gewicht	100g

Technical data

burst impulse		1 kv, signal cable, according to iec/en 61131-2, level 3 1 kv, smartwire-dt cable, according to iec/en 61131-2, level 3 2 kv, supply cable, according to iec/en 61131-2, level 3
time delay at signal exchange - min		0 ms
supply voltage at ac, 50 hz - max		0 vac
supply voltage at ac, 50 hz - min		0 vac
time delay at signal exchange - max		0 ms
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
data transfer rate		250 kbit/s, smartwire-dt setting automatically
air discharge		8 kv, according to iec 61131-2, level 3, esd
height of fall (iec/en 60068-2-32) - max		.3 m
supply voltage at ac, 60 hz - min		0 vac
Kurzschlussschutz		4 a gl/gg, relay outputs, external
heat dissipation per pole, current-dependent pvid		0 w
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
permitted voltage at output - min		0 v
supply voltage at dc - max		28.8 vdc
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
lifespan, electrical		50,000 operations (at 250 v, ac-1, 4 a) 50,000 operations (at 250 v, ac-15, 3 a) 200,000 operations (at 24 v, dc-13, 1 a)
climatic proofing		damp heat, constant, to iec 60068-2-3 dry heat to iec 60068-2-2
supply voltage at dc - min		0 vdc
10.8 connections for external conductors		is the panel builder's responsibility.
10.12 electromagnetic compatibility		is the panel builder's responsibility.
Schockfestigkeit		15 g, mechanical, according to iec/en 60068-2-27, half-sinusoidal shock 11 ms, 9 impacts
Environmental conditions		condensation: prevent with appropriate measures
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
data transmission type		relay
Typ		digital modules
sil (iec 61508)		none
ambient storage temperature - max		70 °c
Overvoltage category		ii
Protokoll		other bus systems
electromagnetic fields		3 v/m at 1.4 - 2 ghz (according to iec/en 61131-2:2008) 10 v/m at 80 - 1000 mhz (according to iec/en 61131-2:2008) 1 v/m at 2.0 - 2.7 ghz (according to iec/en 61131-2:2008)
pick-up time		5 ms
Laststrom		min. 100 ma (at 12 v dc)
heat dissipation capacity pdiss		0 w
radio interference class		class a (en 55011)
product category		smartwire-dt slave
voltage type		ac
10.3 degree of protection of assemblies		meets the product standard's requirements.
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		-25 °c
permitted voltage at input - min		20.4 v
Features		fieldbus connection over separate bus coupler possible
ambient operating temperature - max		55 °c
system accessory		yes
limit value type 1		low: < 5 v dc high: > 15 v dc
ambient storage temperature - min		-40 °c
air pressure		795 - 1080 hpa (operation)
mounting method		rail mounting possible wall mounting/direct mounting top-hat rail fixing (according to iec/en 60715, 35 mm)
10.11 short-circuit rating		is the panel builder's responsibility.
radiated rfi		10 v (iec/en 61131-2:2008, level 3)
certifications		csa file no.: 2324643 ul file no.: e29184 iec/en 61131-2 ul category control no.: nkcr csa class no.: 3211-07 csa ul
product width		35 mm
product length/depth		102 mm

explosion safety category for dust		none
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
relative humidity		5 - 95 % (non-condensing, iec/en 60068-2-30)
Anschlussart		connection plug: external device plug swd4-8sf2-5, smartwire-dt plug, 8-pole, smartwire-dt push in terminals, supply and i/o sensor
operating temperature - max		55 °c
number of outputs (digital)		2
contact type		n/o contact, relay output
equipment heat dissipation, current-dependent pvid		0 w
operating temperature - min		-25 °c
drop and topple		50 mm drop height, drop to iec/en 60068-2-31
safety performance level (en iso 13849-1)		none
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
electric connection type		flat plug-in connection
Einbaulage		as required
safe isolation		230 v ac, according to en 50178
number of inputs (digital)		4
static heat dissipation, non-current-dependent pvs		1 w
connection to smartwire-dt		yes
permitted voltage at output - max		250 v
contact discharge		4 kv, according to iec/en 61131-2, level 2, esd
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
Input current		4 ma (at 24 v dc, digital inputs)
Stromaufnahme		45 ma, smartwire-dt network
10.2.7 inscriptions		meets the product standard's requirements.
input delay		< 0.2 ms
10.2.2 corrosion resistance		meets the product standard's requirements.
functions		for connection of digital i/o signals
Verschmutzungsgrad		2
Schutzart		ip20
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
output current		3 a
output		2 relay outputs
power loss		1 w
constant acceleration		1 g, 8.4 - 150 hz, according to iec/en 61131-2, vibrations
terminal capacity		0.25 - 1.5 mm² (24 - 16 awg), flexible with ferrule, terminal for i/o sensor 0.2 - 1.5 mm² (awg 24 - 16), solid, terminal for i/o sensor
potential isolation		outputs to smartwire-dt: yes inputs for smartwire-dt: yes output to output: no
category (en 954-1)		none
permitted voltage at input - max		28.8 v
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
supply voltage at ac, 60 hz - max		0 vac
station		smartwire-dt slave, smartwire-dt network
drop-out time		2.5 ms
input current at signal 1		4 ma
explosion safety category for gas		none
constant amplitude		3,5 mm, 5 - 8.4 hz, according to iec/en 61131-2, vibrations
surge rating		1 kv, surge i/o cables, surge (iec/en 61131-2:2008, level 1), emc
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
led indicator		status indication of relay outputs: yellow led status indication of smartwire-dt network: green led status indication of input: yellow led
10.4 clearances and creepage distances		meets the product standard's requirements.
rated operational current for specified heat dissipation (in)		0 a
catalog notes		uts 250 vac
Produktgewicht		.1 kg
product height		90 mm
ean		4015081161133

EATON 116383

eu5e-swd-4d2r
