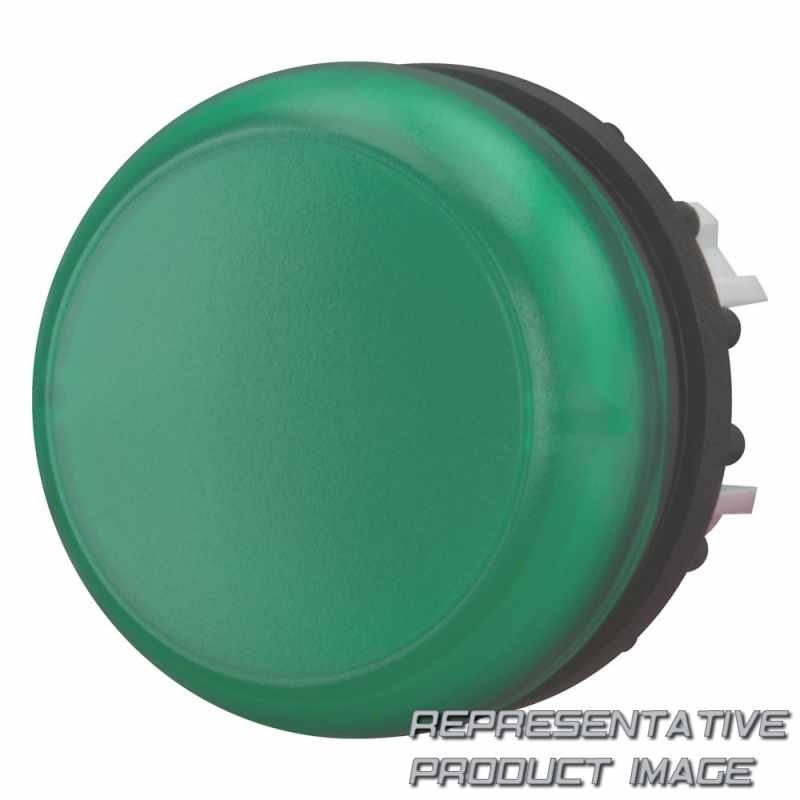

216773 Eaton

EATON 216773

Name: 216773 EATON
Brand: EATON
SKU: 801832-de-eur
Price: 4.21 EUR
Availability: InStock

m22-l-g

4,21 €

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

Baugröße	front diameter: 29.7 mm
Einbaulage	as required

Breite	30 mm
Gewicht	7g

Technical data

rated insulation voltage (ui)		250 v
suitable for number of built-in signal lights		1
10.2.4 resistance to ultra-violet (uv) radiation		please enquire
Typ		indicator lights
Baugröße		front diameter: 29.7 mm
rated impulse withstand voltage (uimp)		4000 v ac
Verschmutzungsgrad		3
Schutzart		nema 4x, 13
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
width opening		0 mm
equipment heat dissipation, current-dependent pvid		0 w
product category		rmq-titan
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
Einbaulage		as required
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
connection to smartwire-dt		with swd-rmq connections yes
bezel color		chrome
lens color		green
force for positive opening - min		0 n
fitted with:		front ring
Konstruktiver Aufbau		flush
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
opening diameter		22.5 mm
rated operational current for specified heat dissipation (in)		0 a
compliances		ce marked
product width		30 mm
product length/depth		30 mm

Schockfestigkeit		30 g, mechanical, according to iec/en 60068-2-27, sinusoidal shock 11 ms mechanical, according to iec/en 60068-2-27
10.2.7 inscriptions		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
lens type		flat round
10.10 temperature rise		not applicable.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
opening height		22.5 mm
Overvoltage category		iii
bezel material		other
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
heat dissipation capacity pdiss		0 w
terminal capacity		0.5 - 1.5 mm², solid 0.5 - 1.5 mm², stranded
heat dissipation per pole, current-dependent pvid		0 w
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		-25 °c
static heat dissipation, non-current-dependent pvs		0 w
climatic proofing		damp heat, constant, to iec 60068-2-78 damp heat, cyclic, to iec 60068-2-30
ambient operating temperature - max		70 °c
10.8 connections for external conductors		is the panel builder's responsibility.
degree of protection (front side)		ip67/ip69k
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
10.4 clearances and creepage distances		meets the product standard's requirements.
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
certifications		en 60947-5 ul 508 csa std. c22.2 no. 14-05 csa std. c22.2 no. 94-91 iec 60947-5 vde ce csa-c22.2 no. 14-05 ul category control no.: nkcr ul file no.: e29184 csa csa file no.: 012528 iec/en 60947 ul csa class no.: 3211-03 vde 0660 csa-c22.2 no. 94-91 iec/en 60947-5
Produktgewicht		.007 kg
product height		30 mm
ean		4015082167738

EATON 216773

m22-l-g
