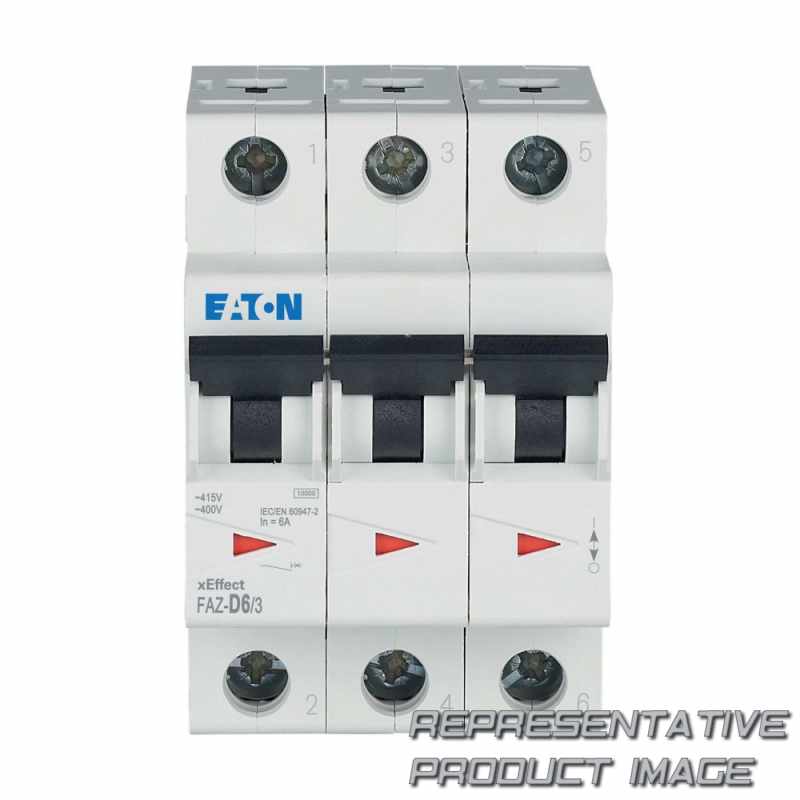

278890 Eaton

EATON 278890

Name: 278890 EATON
Brand: EATON
SKU: 761774-de-eur
Price: 35.24 EUR
Availability: SoldOut

faz-d6/3

35,24 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Einbaulage	as required
Breite	54 mm

Gewicht	329g

Technical data

ean		4015082788902
product height		75.5 mm
Produktgewicht		.329 kg
certifications		ul (category control number qvnu2, qvnu8) ce marking ul 1077 csa-c22.2 no. 235 ul (file no. e177451) north america (ul recognized, csa certified) iec/en 60898 csa (class no. 3215-30) csa (file no. 204453) iec/en 60947-2 en45545-2 iec 61373
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
rated short-circuit breaking capacity (en 60898) at 230 v		10 ka
mounting method		top-hat rail iec/en 60715
rated short-circuit breaking capacity (en 60898) at 400 v		10 ka
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
frequency rating - max		60 hz
10.8 connections for external conductors		is the panel builder's responsibility.
number of poles (total)		3
rated short-circuit breaking capacity (iec 60947-2) at 230 v		15 ka
ambient operating temperature - max		75 °c
built-in depth		70.5 mm
lifespan, electrical		10000 operations
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
ambient operating temperature - min		-25 °c
selectivity class		3
terminal capacity (control cable)		25 mm² (1x)
Einbaulage		as required
tripping characteristic		d
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
Anwendung		branch circuits, not as bcpd switchgear for industrial and advanced commercial applications xeffect - switchgear for industrial and advanced commercial applications
voltage type		ac
frame		45 mm
heat dissipation capacity		0 w
width in number of modular spacings		3
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
enclosure width		80 mm
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
Schutzart		ip40 (when fitted) ip20 ul/csa type: - ip20 (iec)
Verschmutzungsgrad		2
connectable conductor cross section (multi-wired) - min		1 mm²
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
admissible back-up fuse - max		125 a gl/gg
voltage rating (ul csa 13)		480 y/277 v ac
mounting width per pole		17.5 mm
10.2.2 corrosion resistance		meets the product standard's requirements.
10.2.7 inscriptions		meets the product standard's requirements.
direction of incoming supply		as required
mounting width		17.5 mm

product length/depth		80 mm
product width		54 mm
compliances		ul csa09 (with supplementary protector only) rohs conform
rated operational current for specified heat dissipation (in)		6 a
10.4 clearances and creepage distances		meets the product standard's requirements.
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
current limiting class		3
amperage rating		6 a
terminal capacity of screw terminals for main cable		10 mm² (2x)
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
rated short-circuit breaking capacity (iec 60947-2) at 400 v		15 ka
terminal protection		finger and hand touch safe, dguv vs3, en 50274
special features		ambient temperature hint: a 1 °c increase results in a 0.5% linear reduction of current carrying capacity
heat dissipation per pole, current-dependent		0 w
Features		additional equipment possible
connectable conductor cross section (solid-core) - min		1 mm²
number of poles		three-pole
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
used with		faz miniature circuit breaker
equipment heat dissipation, current-dependent		4.4 w
frequency rating - min		50 hz
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
static heat dissipation, non-current-dependent		0 w
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
number of poles (protected)		3
terminals (top and bottom)		twin-purpose terminals
release characteristic		d
busbar material thickness		0.8 mm - 2 mm
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
voltage rating		240 v ac / 415 v ac
connectable conductor cross section (solid-core) - max		25 mm²
Overvoltage category		iii
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
rated impulse withstand voltage (uimp)		4 kv
voltage rating at dc		60 v dc (per pole)
rated switching capacity (iec/en 60947-2)		15 ka
connectable conductor cross section (multi-wired) - max		25 mm²
Typ		faz miniature circuit breaker
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
operational switching capacity		7.5 ka
rated operational voltage (ue) - max		400 v
rated insulation voltage (ui)		440 v

EATON 278890

faz-d6/3
