| operation | non-reversing | ||
| number of poles | three-pole | ||
| UPC | 782116486298 | ||
| product height | 5.945 in | ||
| Produktgewicht | 2.4 lb | ||
| compliances | rohs compliant ce marked |
||
| catalog notes | screw terminals (6-65a); 5 mm (80-150a); no lugs (185-2000a) | ||
| hp rating - max | 3, 5, 7.5/ 10, 15, 30, 40 hp (1/3ph @115,200,230/200,230,460,575 v) | ||
| coil voltage | 230 vac, 50 hz | ||

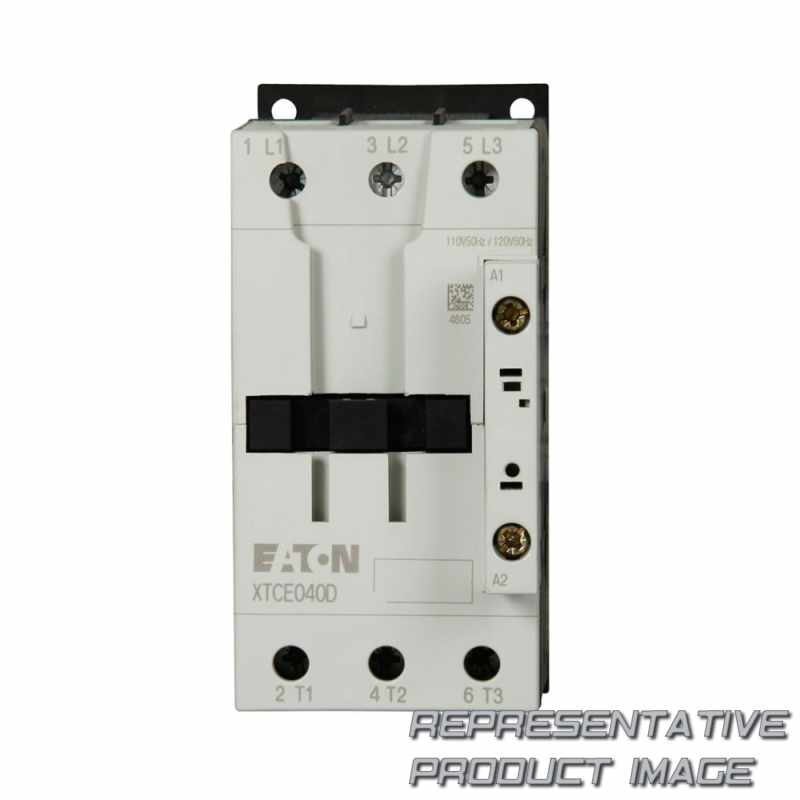

| Typ | full voltage non-reversing contactor | ||
| frequency rating | 50 hz |
| amperage rating | 40a | ||
| Spule | 230 vac, 50 hz | ||
| product length/depth | 2.244 in | ||
| product width | 4.567 in | ||
| warranty | 1 year | ||
| certifications | iec 60947 en 60947 ul listed csa certified |
||
| contact configuration | 0 no, 0 nc | ||
| frame size | 55 mm | ||
| Baureihe | xt iec | ||
| continuous ampere rating | 40 a | ||
| terminals | screw terminals |
